[June 15, 2024]

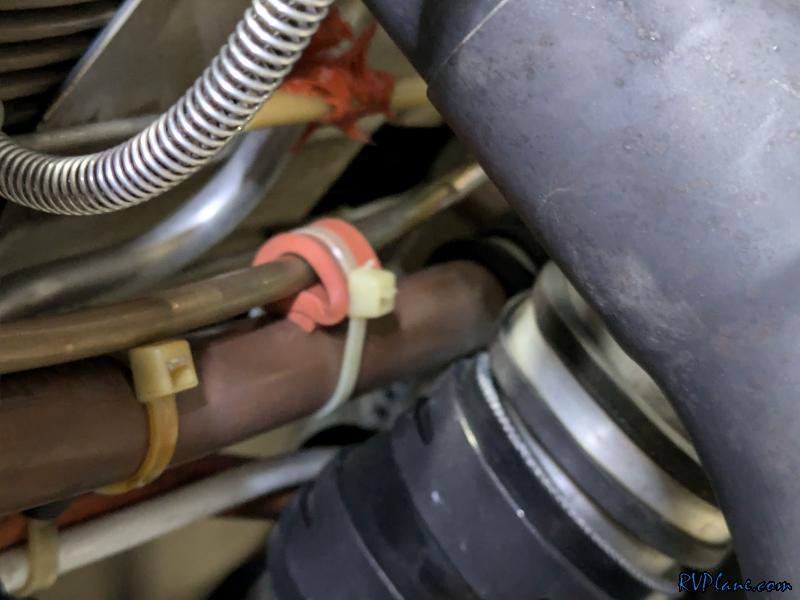

When I originally installed my modifications to the smoke oil delivery to the #1 exhaust, I didn't have a great way to secure the NiCopp line, so I hacked it with some silicon and zip ties - obviously not ideal.

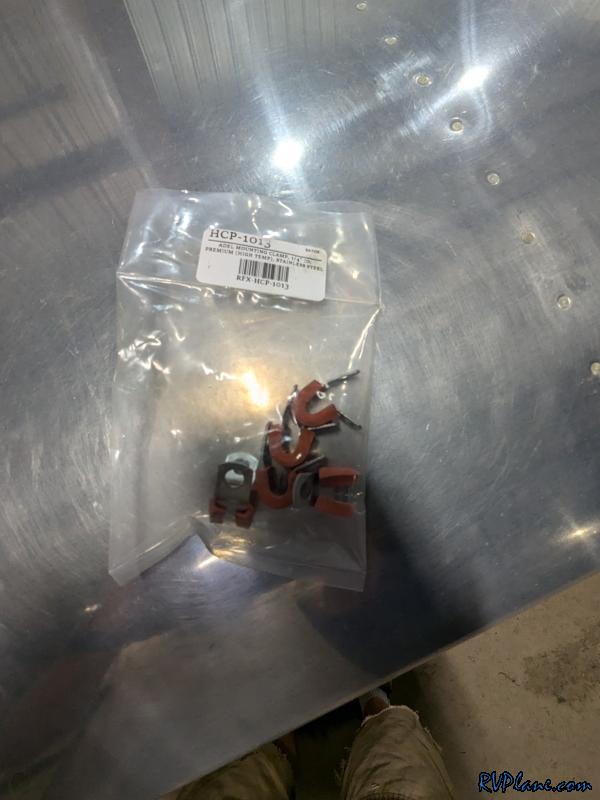

I purchased some high temp adel clamps good for up to 450 degrees from Ebay (p/n HCP-1013, Ebay Link https://www.ebay.com/itm/145625337632). It was $20 for 4 of them shipped.

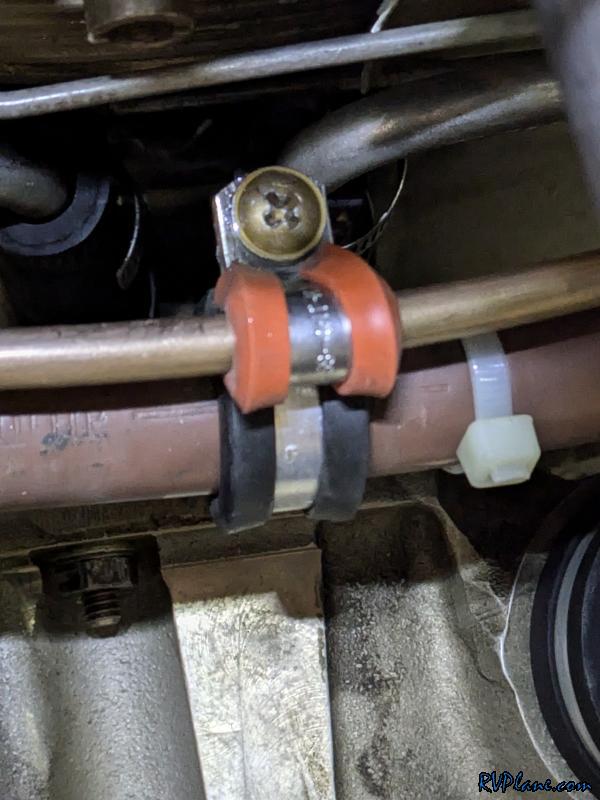

I am much happier with this installation. However, it did take the better part of an hour to get the screw and nut in! It's certainly not the most accessible location - out of all the tricks I know for securing adel clamps together, I needed to revert to using the tried and true safety wire trick to get things close enough together to get a screw through and a nut threaded.
