[June 14, 2024]


I ordered a set of ignition wires from Aircraft Spruce to replace my electronic ignition wires. The ones I had worked pretty good, but they are pushing 15 years old, and the resistance is quite different from the wires I had and the wires supplied now from EmagAir. The item I ordered was the E-Mag Auto 4 Lead Kit, p/n EMA75001, and about $100 from Spruce.

Notice how different the resistance values are- the wires I had previously were 395, 318, 412 and 530 ohm, and these new wires are 93, 115, 116 and 140 ohm - let's see if it makes much difference?

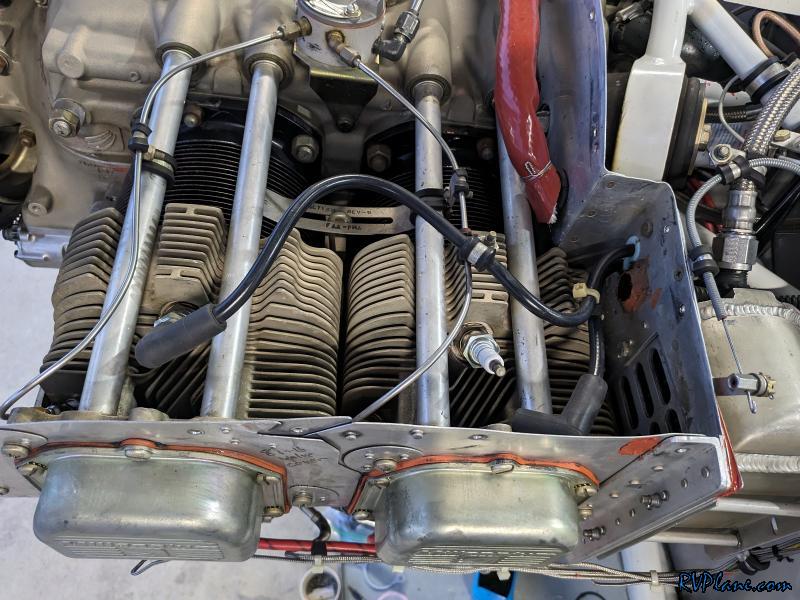

I took a picture of the old wires to remember the routing.

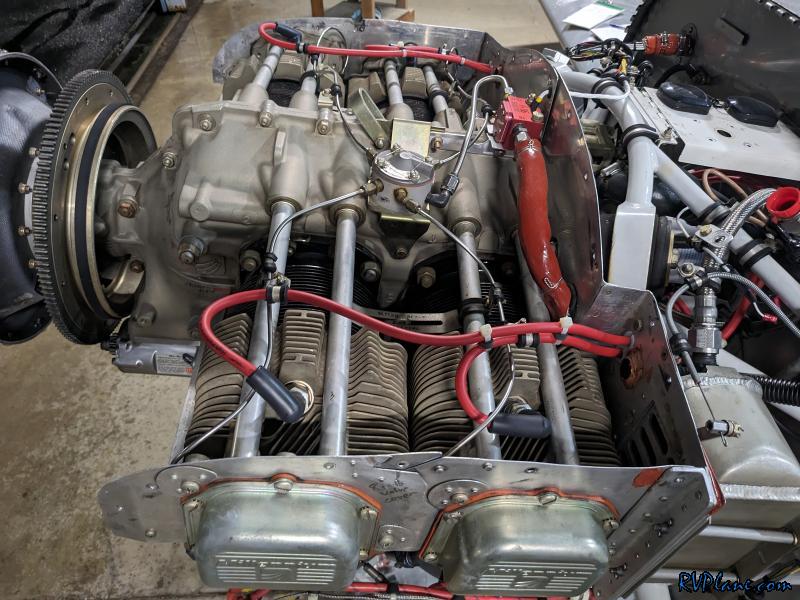

And the new wires - the red really pops!

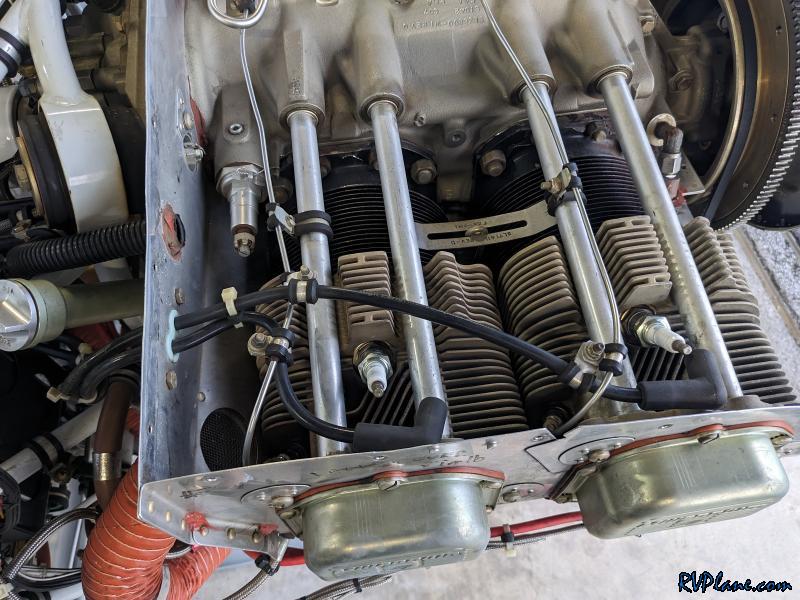

And for #2/4 cylinders - the old.

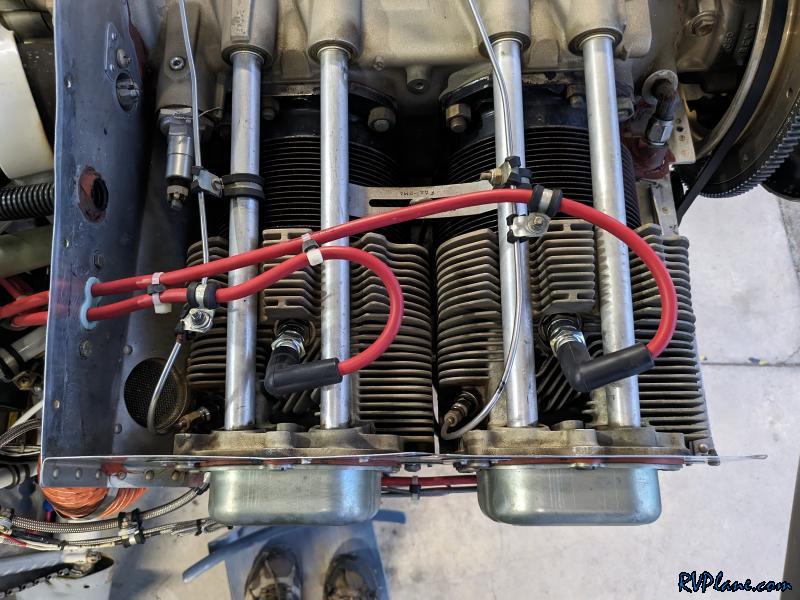

And the new. This job took a lot longer than I expected it to. Nothing difficult about it, just tedious to redo all of the adel clamps. I ordered the incorrect fuel pump gasket, so that project is tabled for the next ACS order to arrive mid next week.
