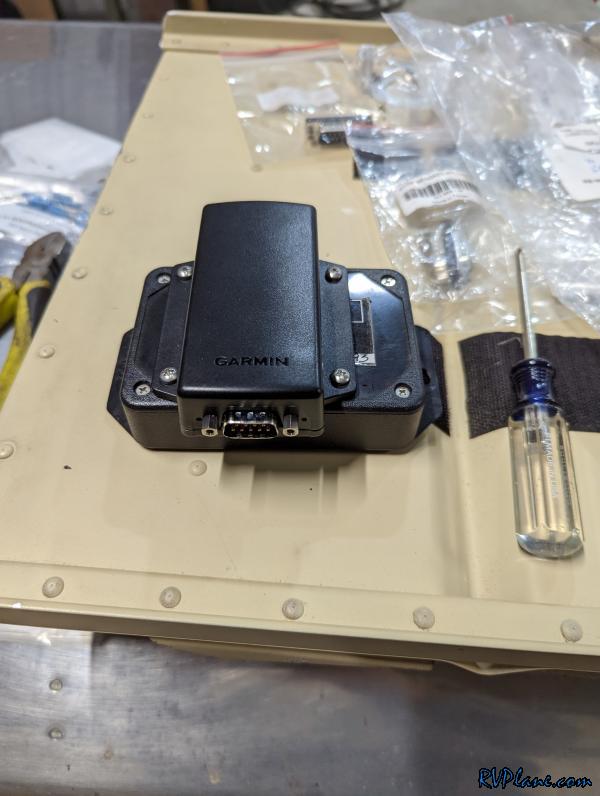

I was going back and forth onto how to mount the GMU 11 magnetometer. I had an existing magnetometer for my GRT EFIS, and I was going to mount the GMU 11 on the bottom side of this tray. However, it dawned on me I may have enough room on the top of it. Sure enough I barely had enough room to install it!

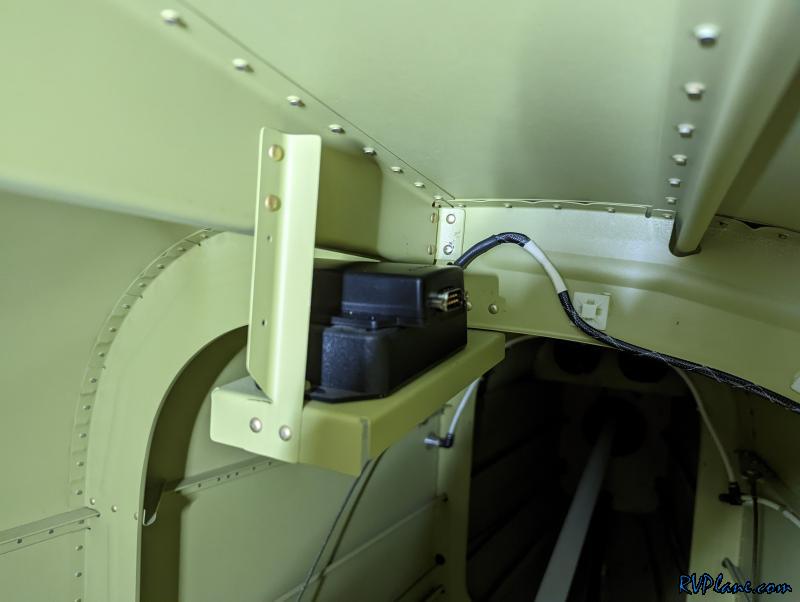

4 holes in plastic and 4 stainless screws. This was just too simple.

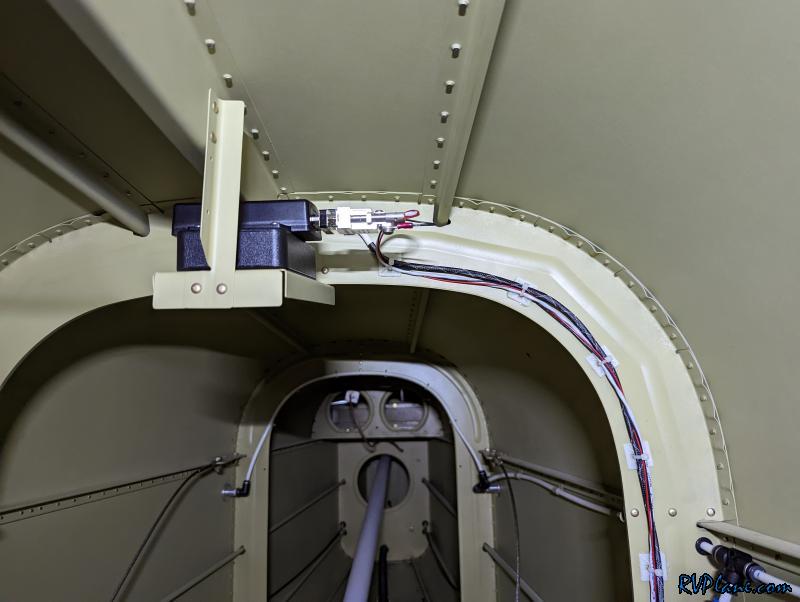

Installed and wired! I installed the CAN terminator on the GMU11 as it is one of the ends of my CAN bus.

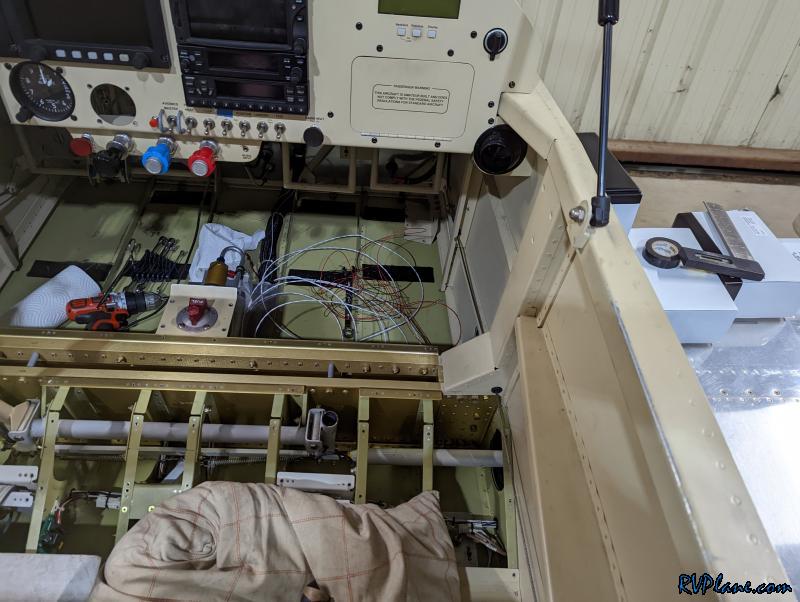

I finished up pretty much everything aft of the main spar tonight. All of the wires are punched through existing grommets. The only thing remaining mechanically is permanently installing the roll server - I am waiting for a longer AN3-20A screw from ACS. What remains is installing the GAD29 ARINC adapter and wiring up everything. I don't think it's too much more work!
