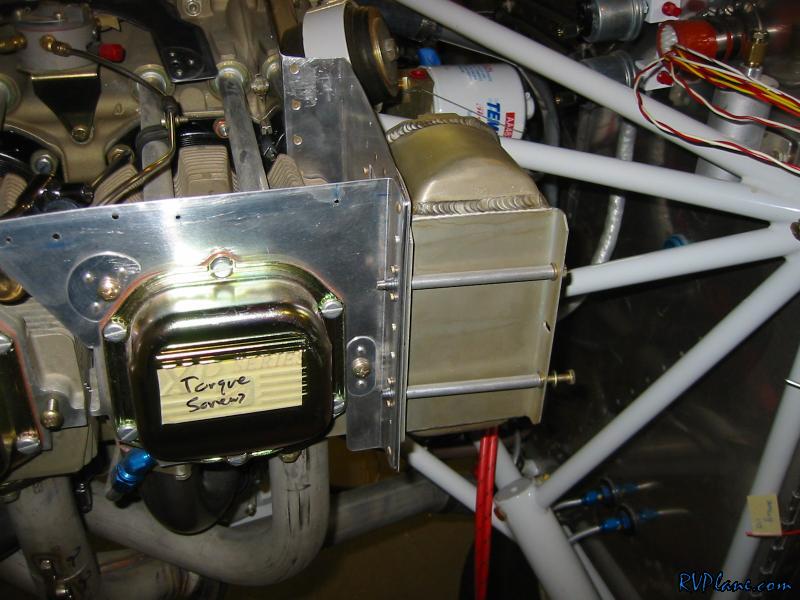

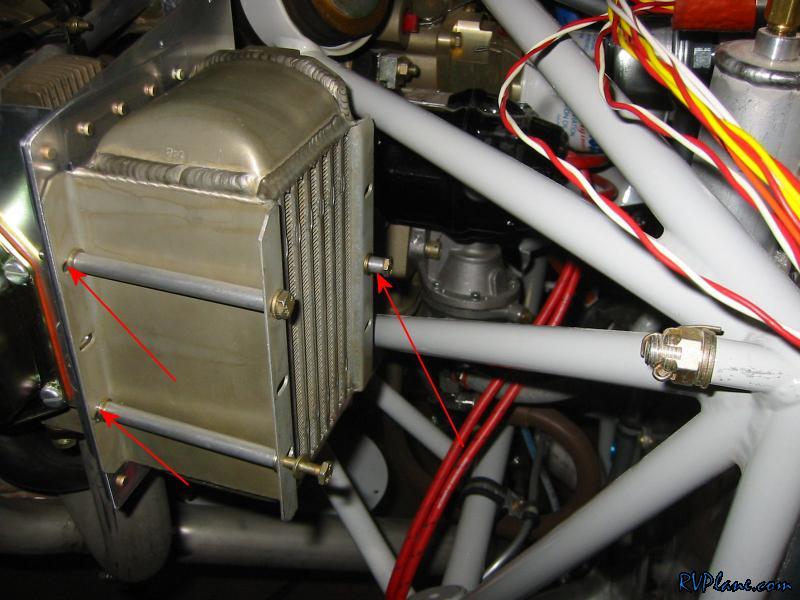

Tonight I riveted together the left rear baffle. Pretty simple, but I did need to make the hole in the baffle for the oil cooler. I then made the spacers for the oil cooler mount.  I made my spacers a little short (3 3/8") so I could have some AN960-10 washers on either end. I wanted to reduce as much as possible the chance of the oil cooler cracking. Also there is a spacer put under the inboard screw.  The spacer mentioned above is to limit the amount the bolt protrudes through the nutplate, to avoid rubbing against the cooling fins of the #4 cylinder.  Notice: Undefined variable: categoryid in /Websites/rvplane.com/public_html/main.php on line 160
|
|||||
|
