[February 28, 2009]

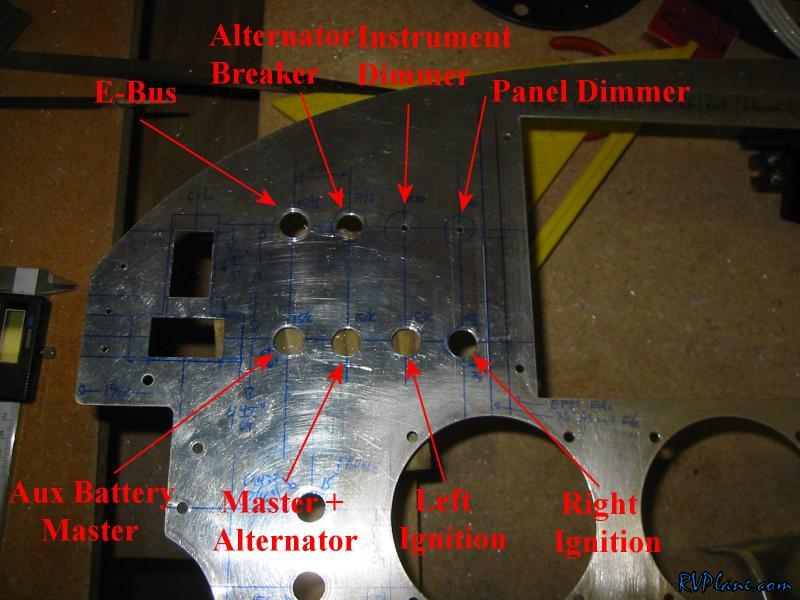

This afternoon I got busy on finishing up some of the last work I need to do on the panel. All I really have left is cutting the switch holes. Here you can see my switches on the left. The top row is my dimmers and emergency items -- EBus and my only circuit breaker, for the alternator. I didn't have any other spots on my panel to put dimmers, so I figured here was as good as any. The first row contains my master and iginition (mag) switches.

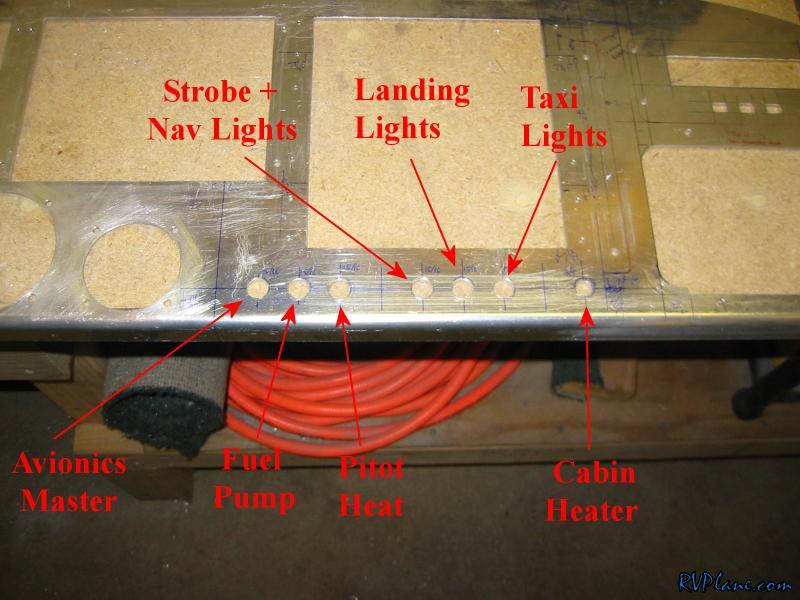

Next off was the other switches I had. I used 15/16" spacing between the switches for everything.

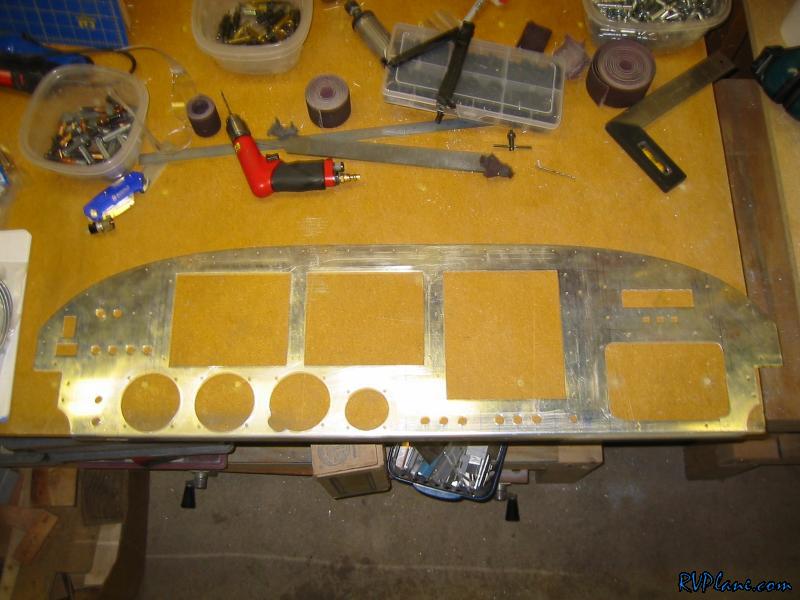

The panel is pretty much done. It looks pretty awesome. No major boo-boos. The only one is on the bottom of the avionics stack -- a little notch from the jig saw going too far. That will be easily fixed with some filler. There are three possible items I will add -- 1) ELT Panel (waiting for ACK to come out with their E-04 406 Mhz ELT), 2) Cigarette lighter power (waiting for the ELT remote so I can see where I can put that) and 3) some annunicator lights.
