[February 27, 2009]

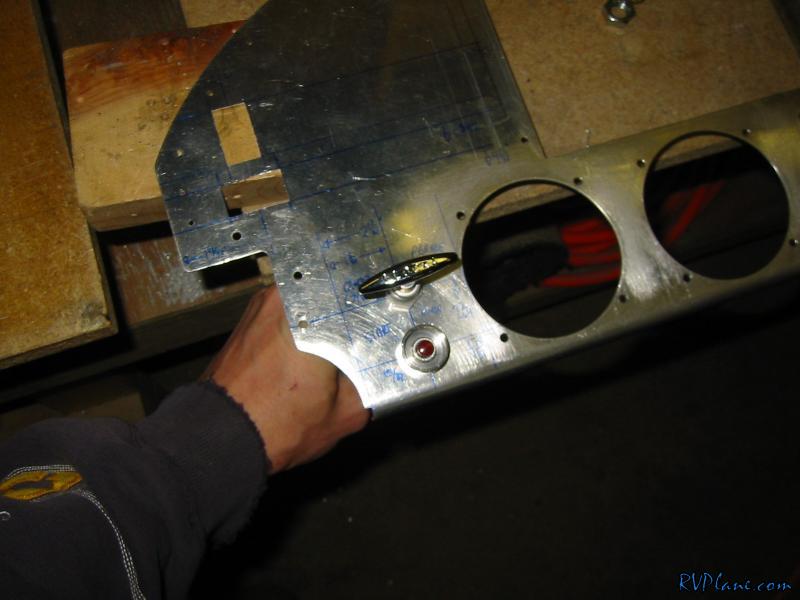

Tonight I drilled the starter button and the parking brake (ACS Part # 05-15000). The limiting factor here was the parking brake, and how it could interfere with the forward canopy deck. The brake is pretty much as high as it can be.

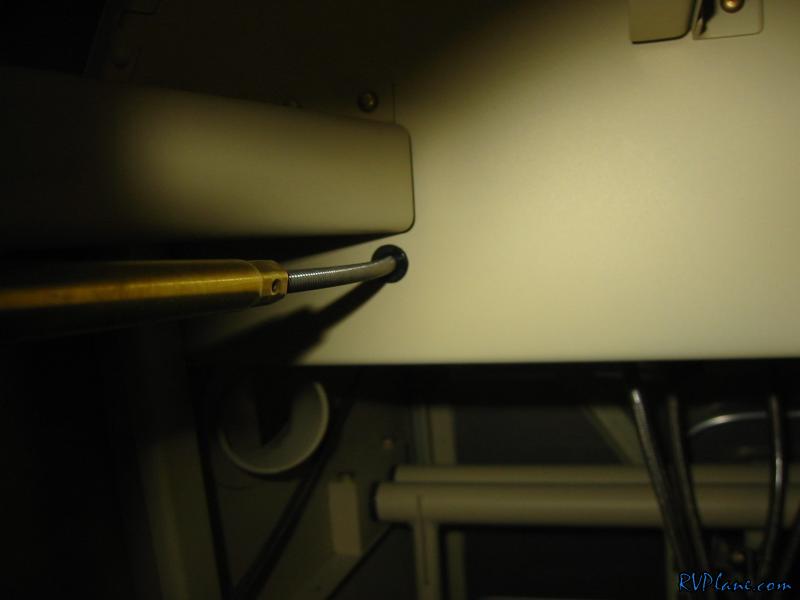

Here is the interference potential. I put a snap bushing in the subpanel for the parking brake cable passthrough.

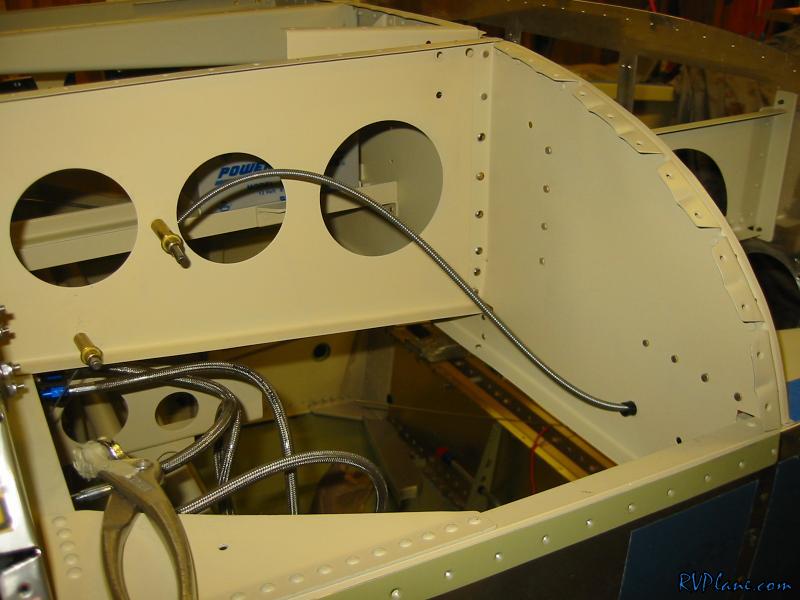

Next I router the cable to the parking brake valve.

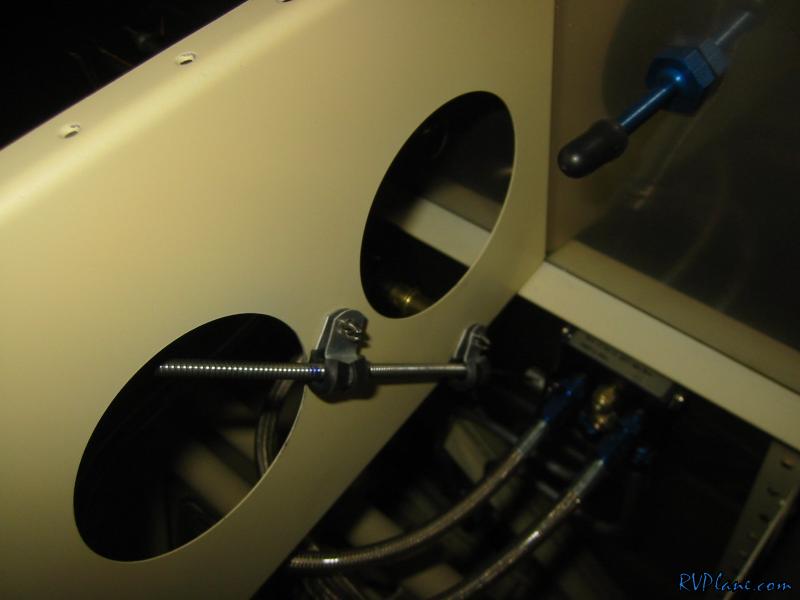

I used two adel clamps to keep the cable from rubbing on the ribs. The parking brake was pretty easy to install.

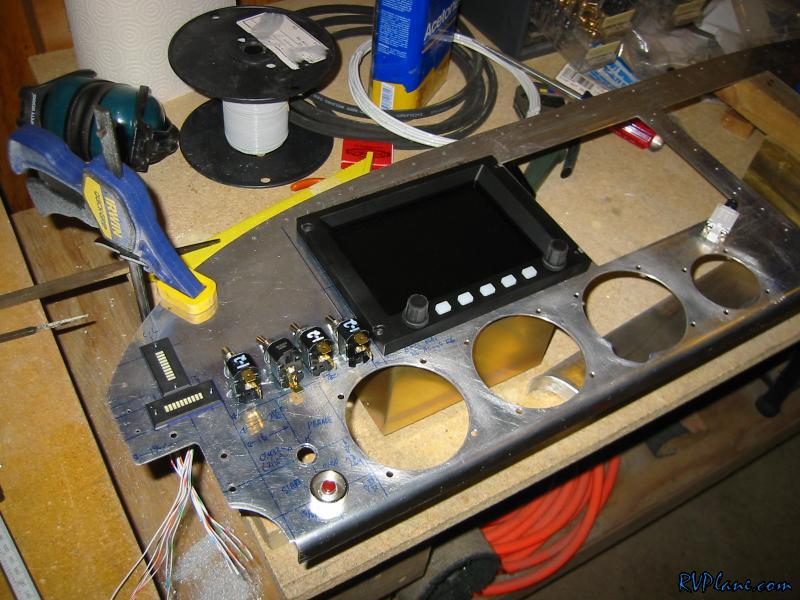

Next I spent a lot of time thinking about switch layout and doing multiple measurements. I think I got a good plan, but I want to sleep on it before making some new holes in the panel.
