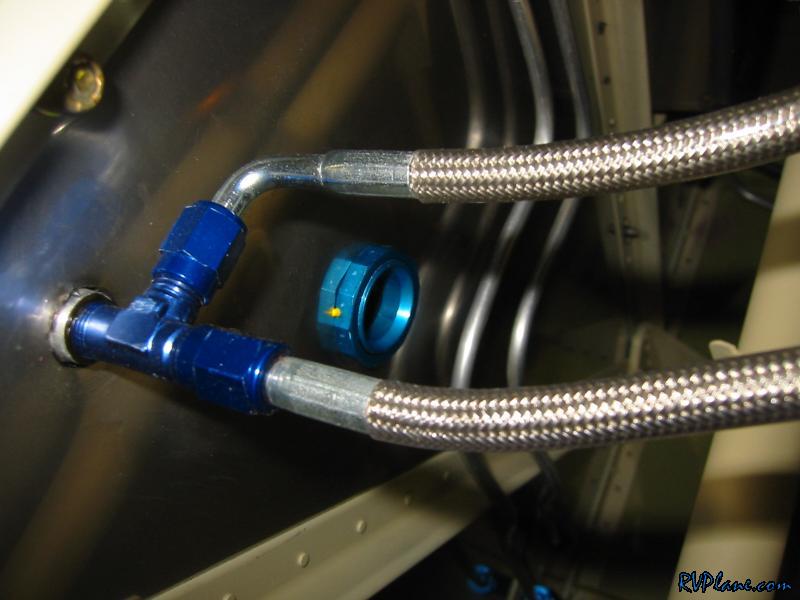

Not that this is panel related at all, but I installed the governor cable passthrough permanently in the firewall today. I used some Permatex high strength thread lock on it, as recommended.


I wanted to cut the map box cutout today, but I needed to know where and how the vents were going to mount. You can see I have a one-legged nutplate on the top. That will come into play later on. But I needed it there for positioning.

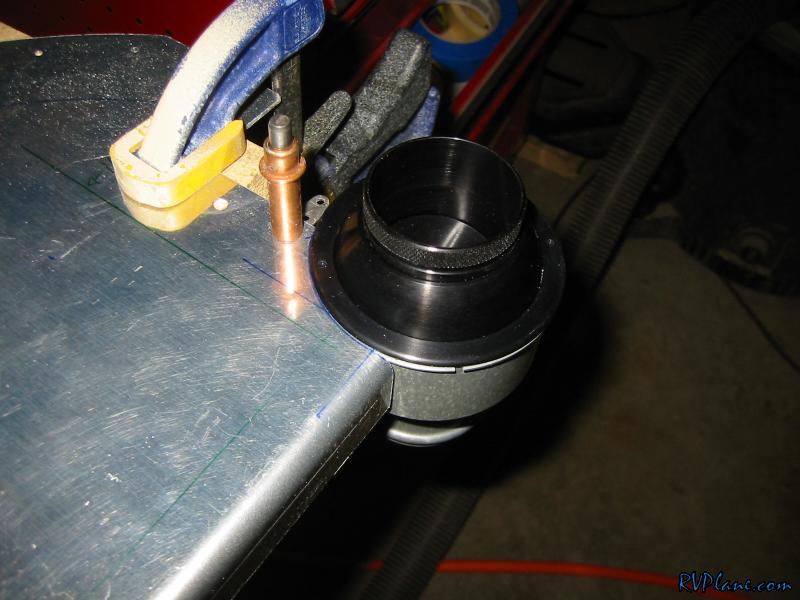

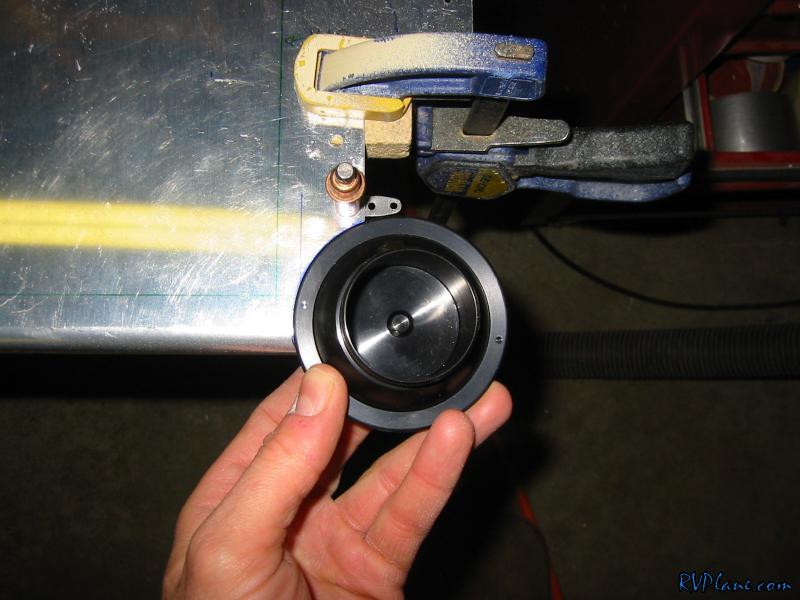

Here is a SteinAir large vent. These aren't cheap, but I was surprised they were about $10 less from Aircraft Spruce than from Stein himself! They are about $100 a pop, and worth every penny when compared to the junk Van's sends you. Here is the idea positioning.


I made a template of the cutout needed and modified the panel to accept the new radius of this vent.

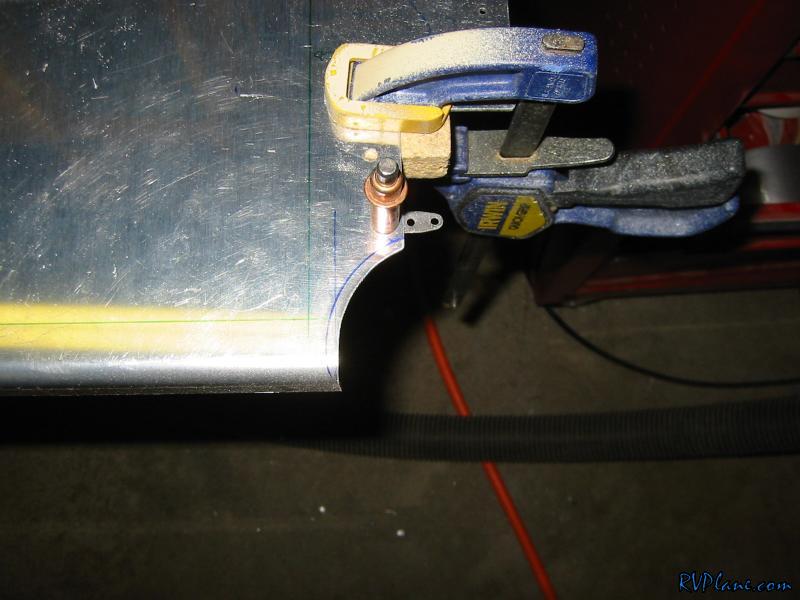

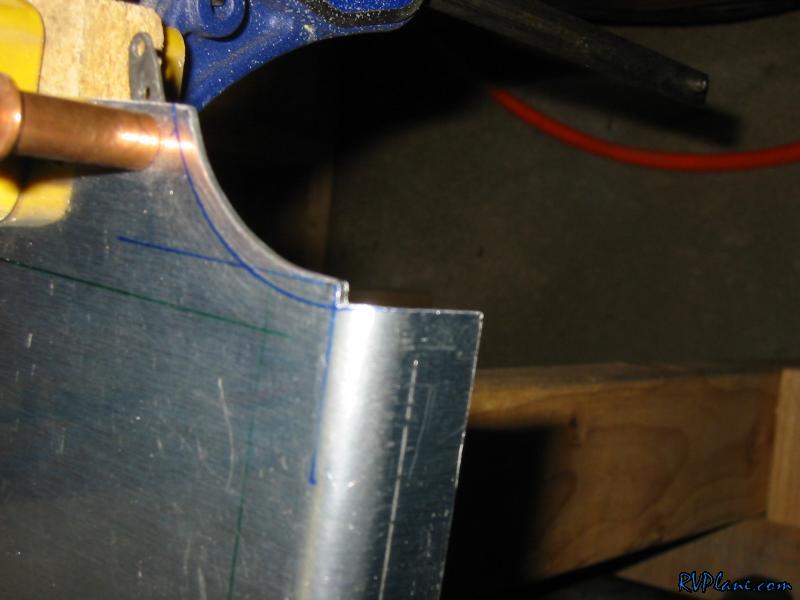

Here you can see how I carved a little out of the panel. The vent fits perfectly to this radius.

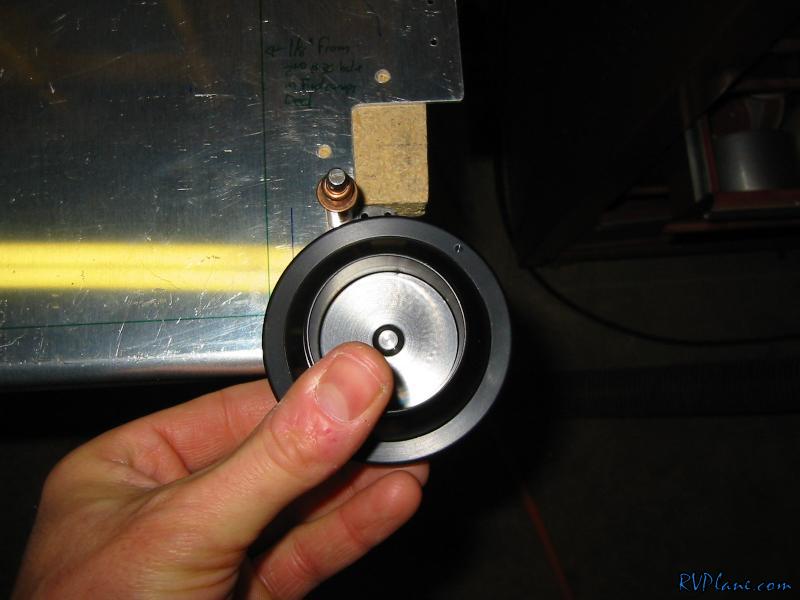

Another shot.

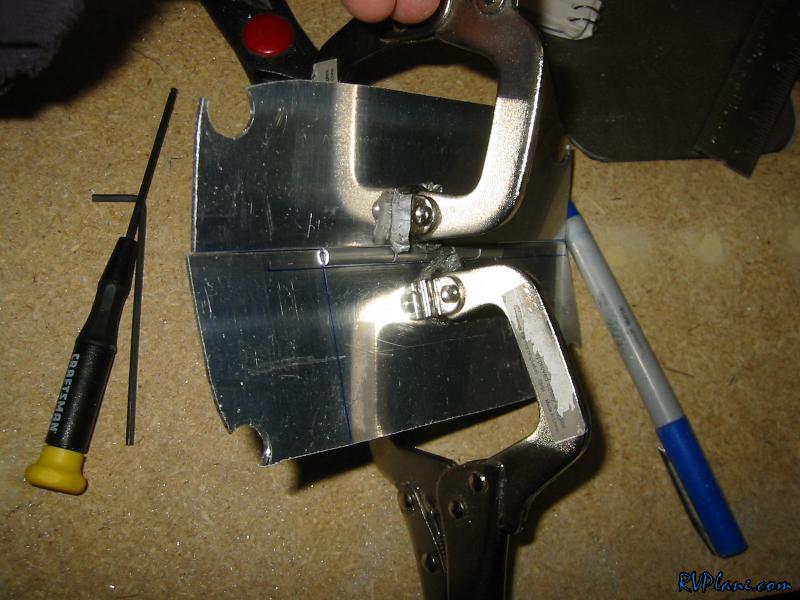

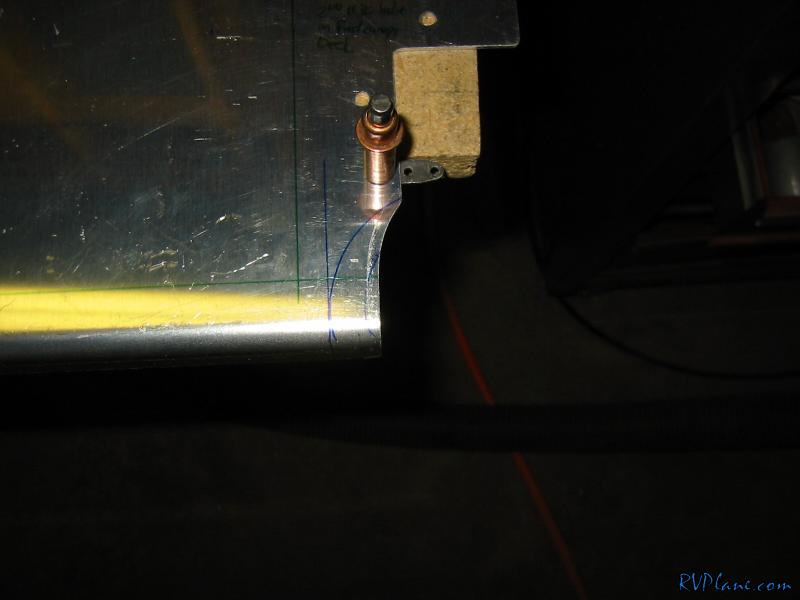

I needed to notch the bottom of the panel to allow for the backside of the vent to screw into the front of the vent.

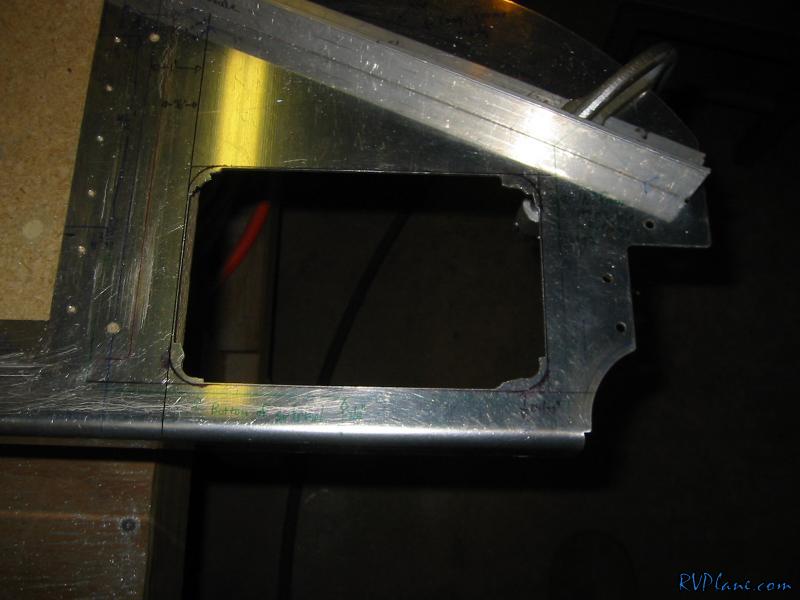

With the vent in place, I could cut the map box hole. The straight edges are the easy part. I HATE cutting out the corners of a hole. Mine always turn out nasty and ugly.

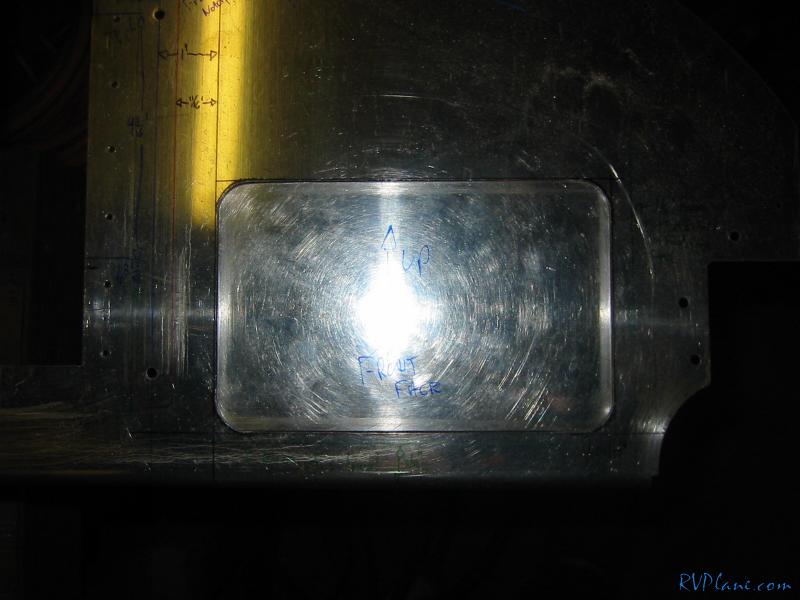

WOW! Using the Dremel sanding drum, I got it PERFECT in no time. I mean perfect. I am really happy with how nicely the mapbox door fits into the panel. It looks professional, perhaps even waterjeted!


Finally I played around with how much I needed to notch the panel for the hinge. 3/16" seemed to be the right number. Hopefully tomorrow the map box will be mounted permanently.
