[December 19, 2008]

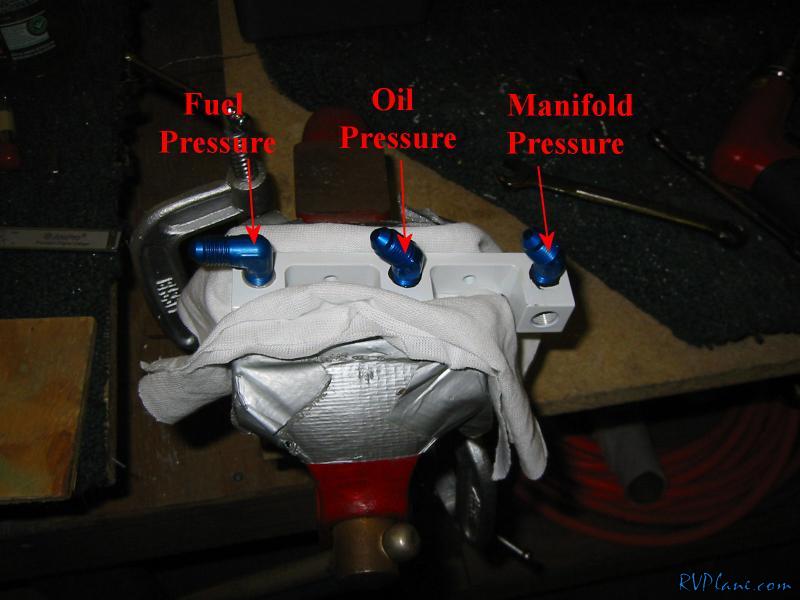

I painted the transducer manifold the other day, so there isn't any reason not to start populating it with goodies. Tonight I installed the AN4 flare fittings on the right side. I am routing the manifold pressure to the top position of this block. The reason being is the EMAG I have needs it, as well as the GRT manifold pressure sensor on the inside of the firewall. I thought it was an elegant solution to put it on this block.

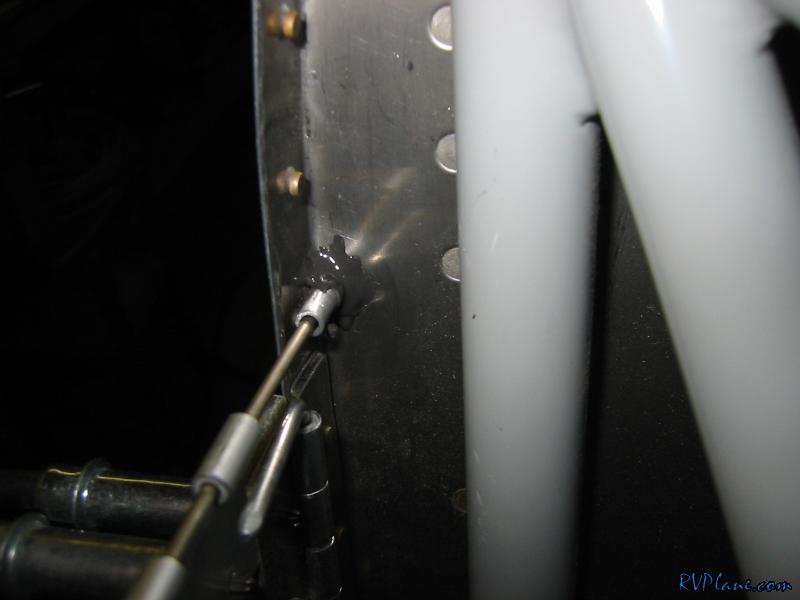

I also prosealed around the 3/16" tubing for the cowl hinge.
