[October 29, 2008]

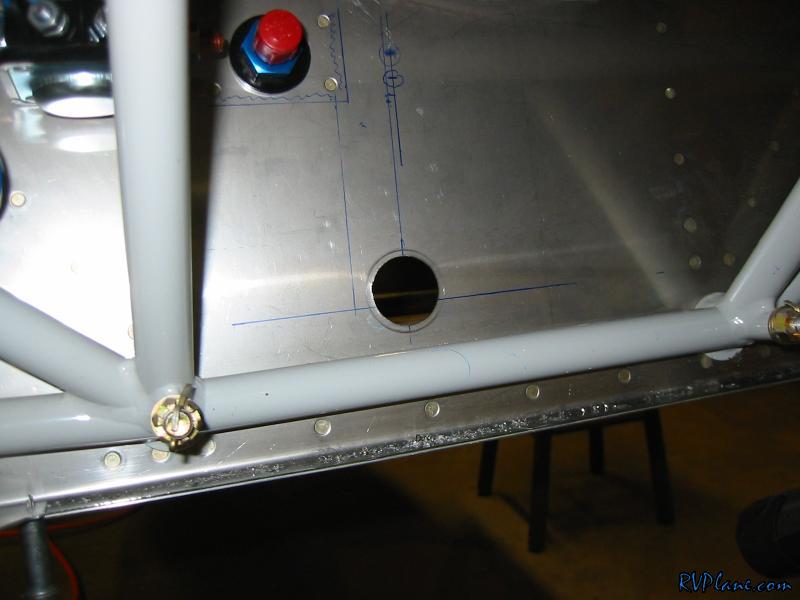

Following the instructions for the O-360 penetration points I located where the mixture passthrough should be located. The drawing says it should be at X=3 13/32" and Y=8 1/2", but since I am using the eyeball bulkhead fitting (Van's p/n EYEBALL TTP-125), the hole needed to be a little higher so the eyeball fitting wouldn't interfere with the bottom of the engine mount. I made my hole at Y=8 1/4".

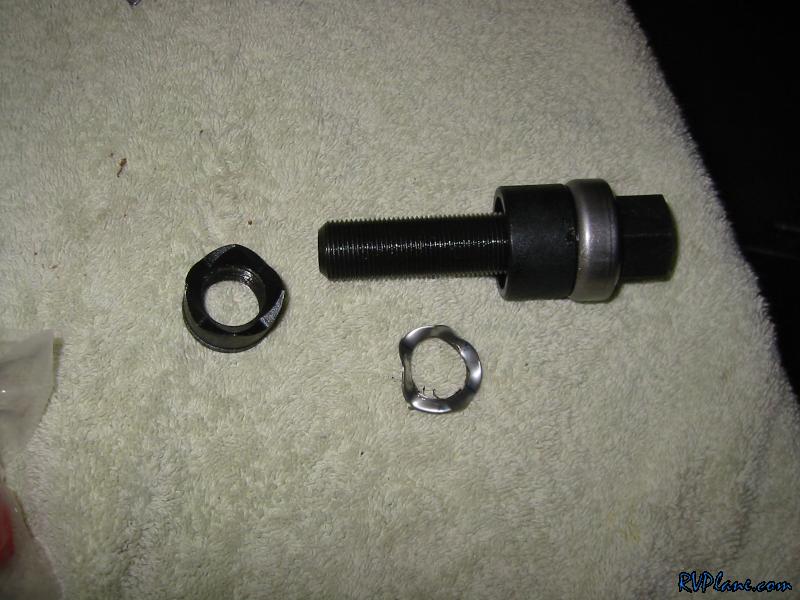

I got smart and bought a knockout punch kit from Harbor Freight (p/n 91201-5VGA, $15.99). This made making the bigger hole a walk in the park!

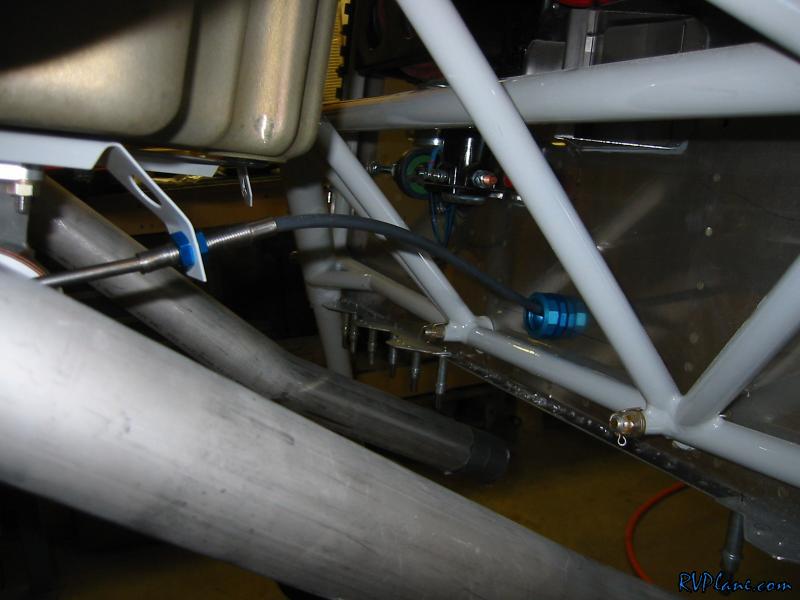

I installed the eyeball fitting and re-fed the mixture cable through.

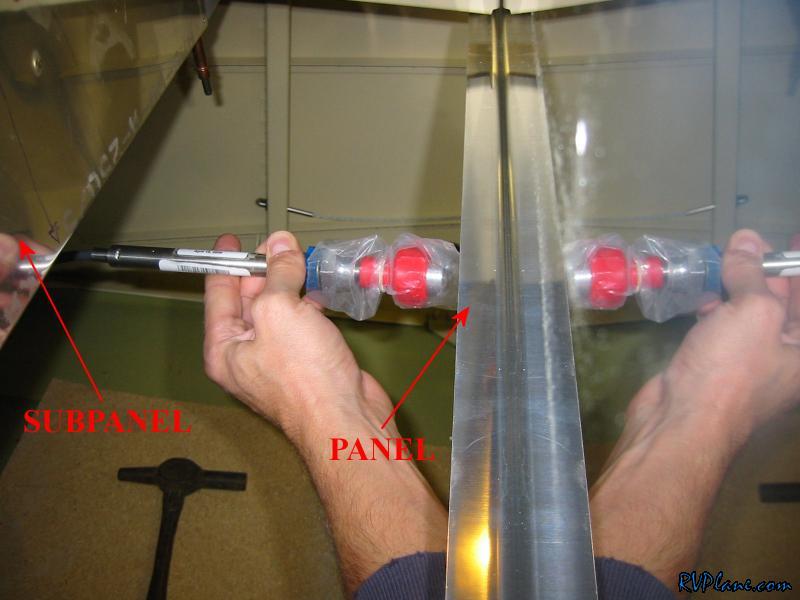

On the inside it was WAY short. This is the 47" cable. Van's sells a 50.5" and 51.5" mixture cable. I think I might try the 51.5" one. 4.5" seems like it might be the right length.
