[June 11, 2008]

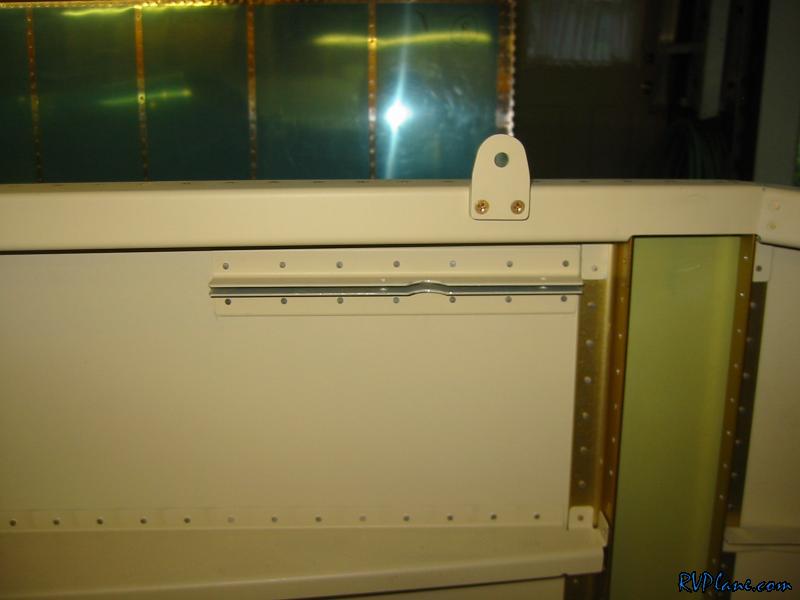

With the aft canopy decks riveted on, I count rivet on the angle for the opening mechanism. Before I put this on however, I put some UHMW tape on it.

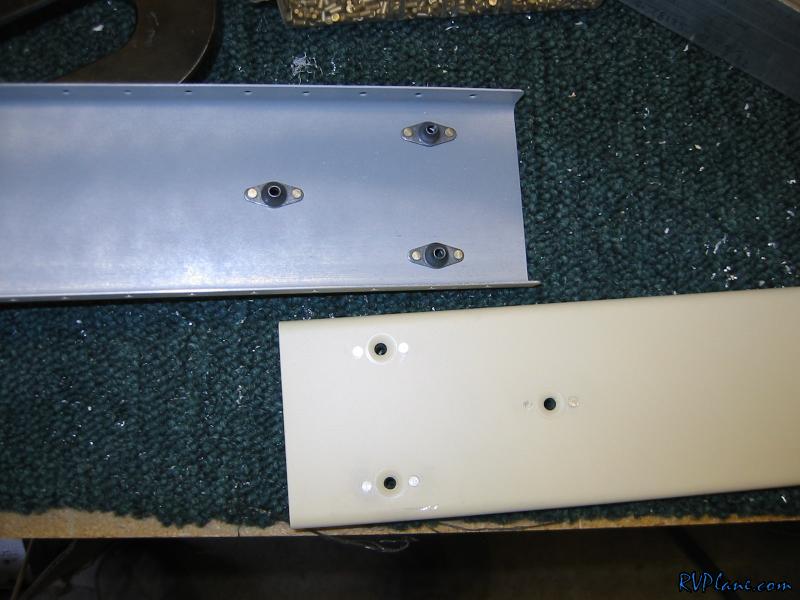

Before riveting on the F-704 bulkhead cover, I put three nutplates on each one for a future spot to mount stuff to. I stole the idea and exact mounting location from Checkoway.

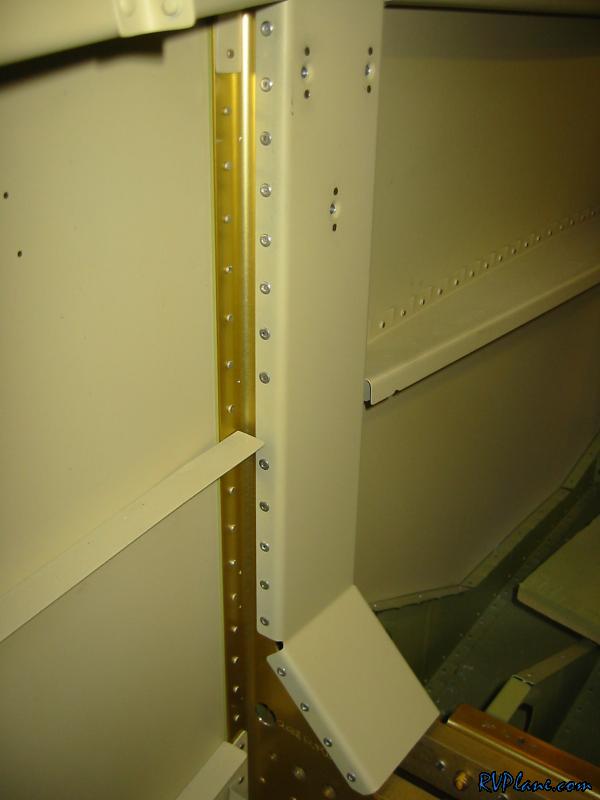

Next I got out my trusty pneumatic rivet puller and installed the covers. Man there were a lot of rivets!

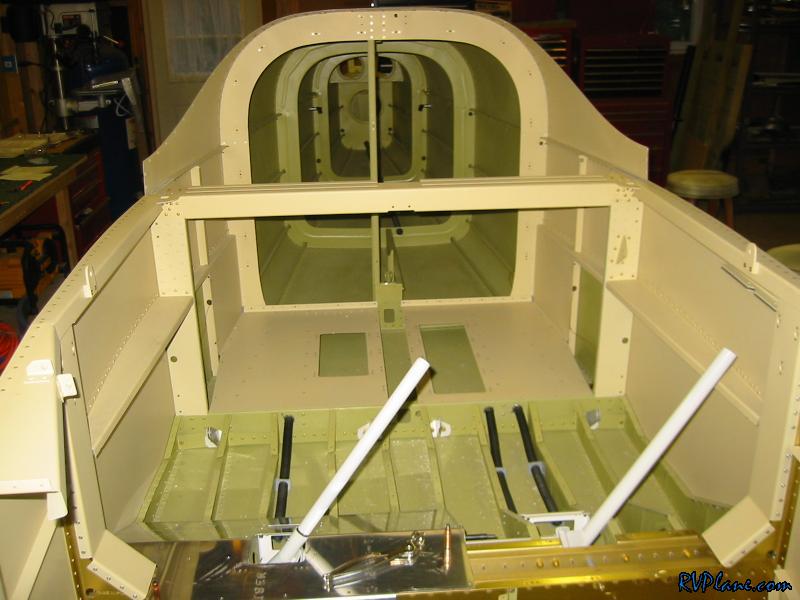

Its been a long time, but I took out all the boards in the fuselage. I then lightly scuffed up the interior because tomorrow I am planning on painting the entire interior. Its not going to take much since everything was preinstalled, but there are some scuffed up marks and a couple unpainted surfaces.

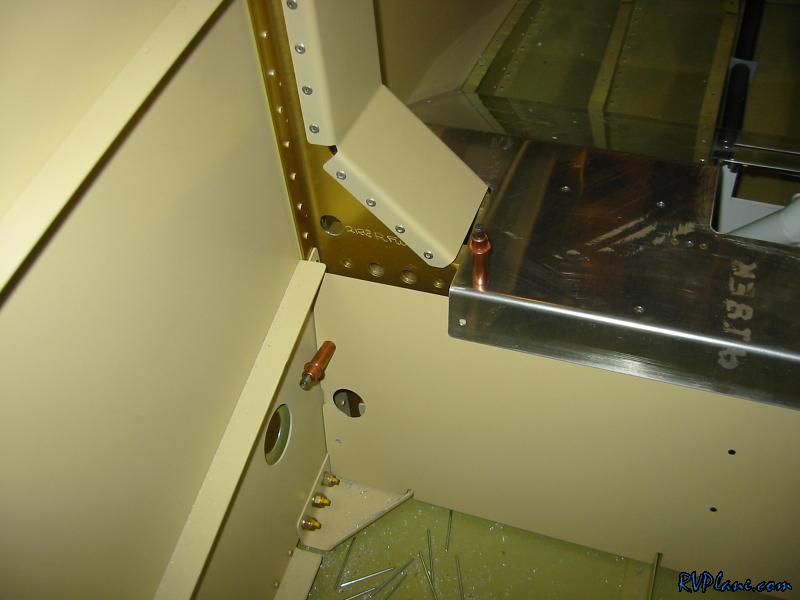

I installed the seat pan and the front cover to see where I needed to paint the F-704 bulkhead.
