[October 14, 2007]

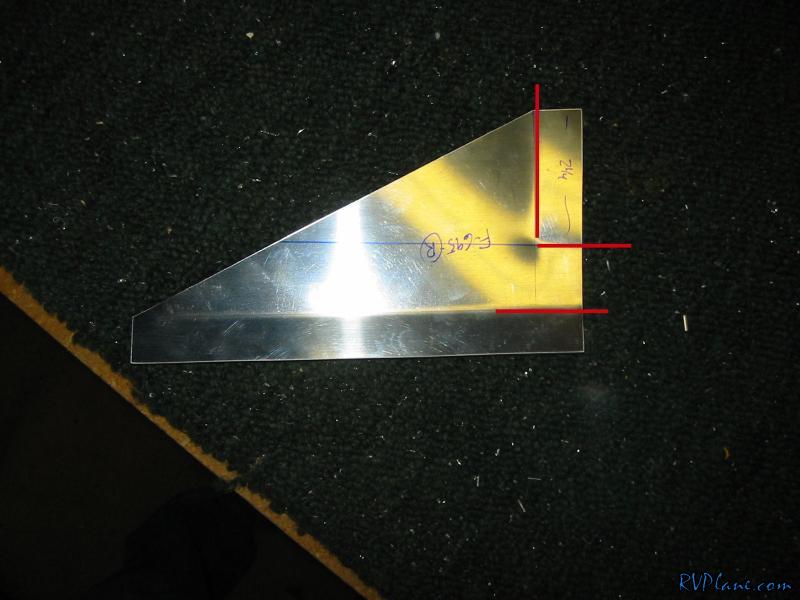

I spent a bunch of time getting this brace to line up nicely with all the angles it needed to. It definitely needs to be bent slightly from the way it comes to fit. These are the bends I ended up with. Along every red line, I needed to "pull up" along the bend line.

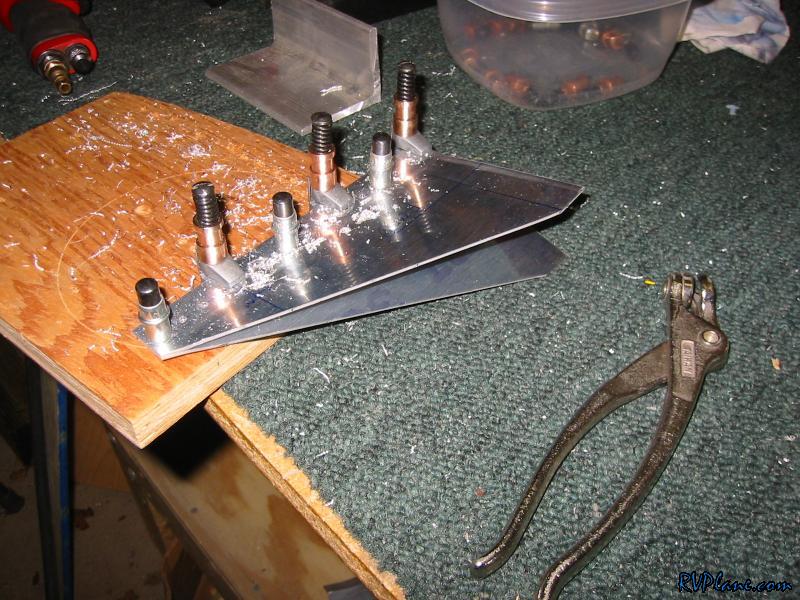

I then backdrilled the other brace with the one already drilled. No reason to measure out those 14 or so holes again.

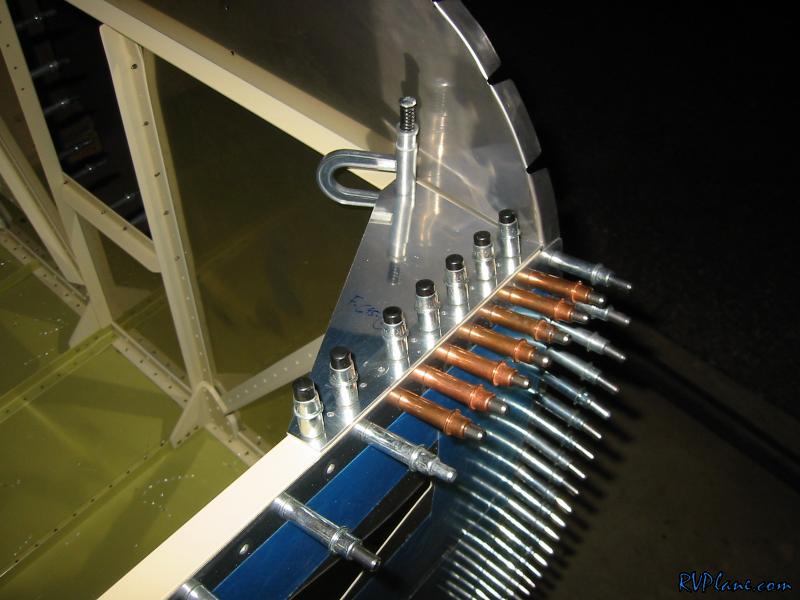

I clamped everything down and drilled all the holes to the longeron with a #40.

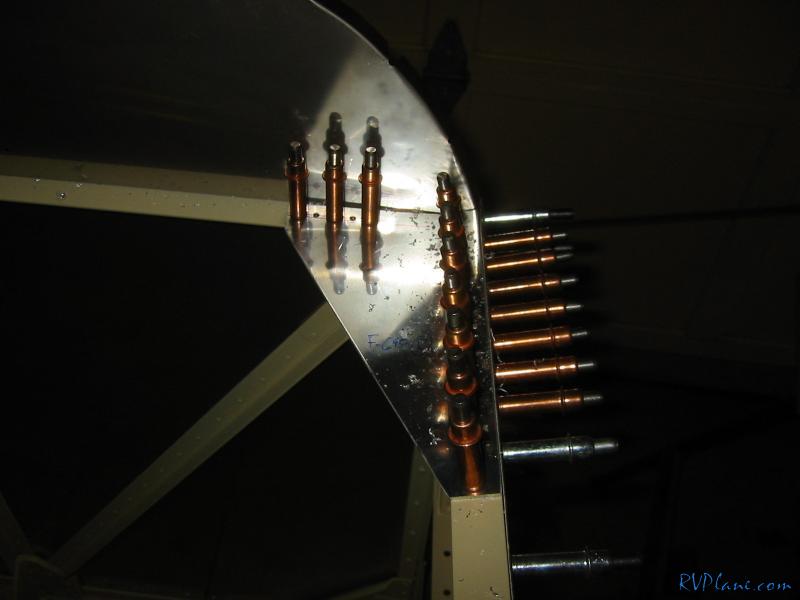

Once everything looked right, I drilled the holes to the firewall and enlarged everything to a #30.
