[July 18, 2007]

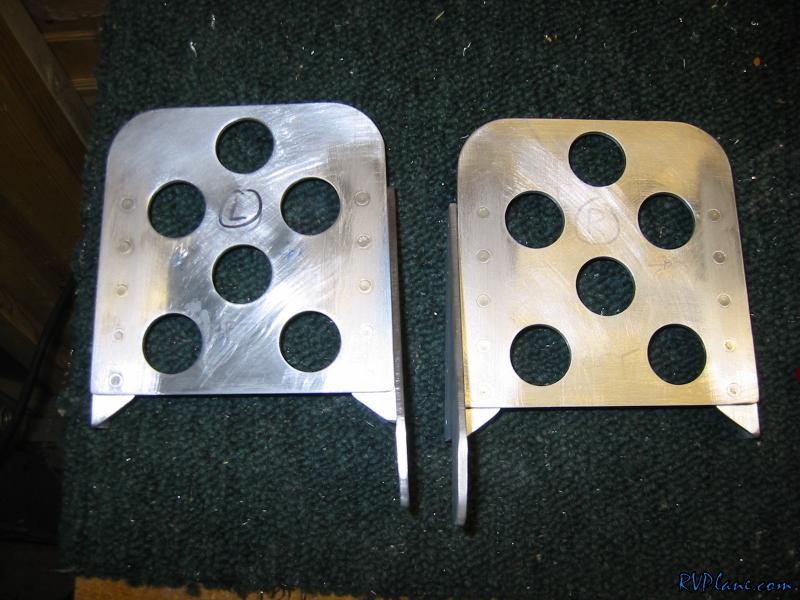

I called up Van's today and got the tracking numbers for my shipment of much needed parts. Good news is they should be here tomorrow! I moved onto countersinking the pedals and side plates for flush rivets, deburred everything and riveted it all together. It was nice to rivet without priming first. You should see a lot more of that in the near future.

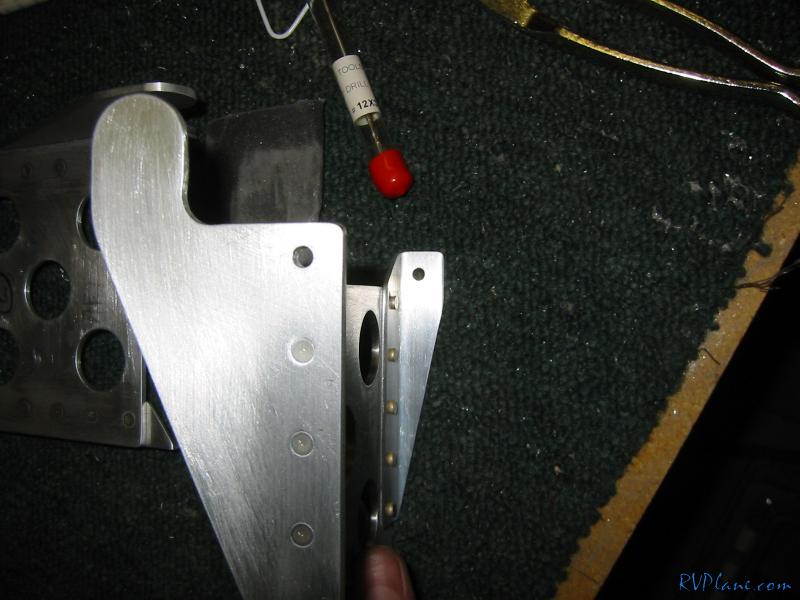

I then enlarged the #30 hole to a #12 hole on the plate side of the pedal, then put a #12 hole in the other side's angle. It's not really spelled out how to do this in the plane, but you gotta do it sooner or later.

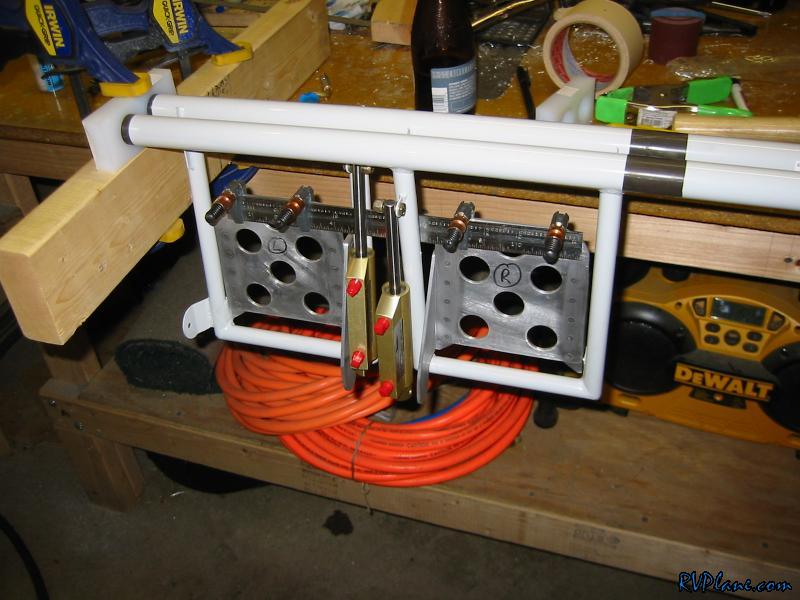

Next I got the rudder pedals out and mounted them on some 2x4's. I temporarily mounted the brake pedals onto them, as well as the master cylinders. The alignment is a little off, and I am too tired to figure it out tonight.
