[December 10, 2006]


Today my mission was to catch the left tank up to where the right tank was. I almost got there, with the exception of match drilling the skin/ribs and making the tank attachment brackets.

The first thing I needed to do to the right tank was figure out some mislabeled ribs. I had two #2 labeled ribs. I am 99% sure I found out where the went, and I reamed the holes out to be sure.

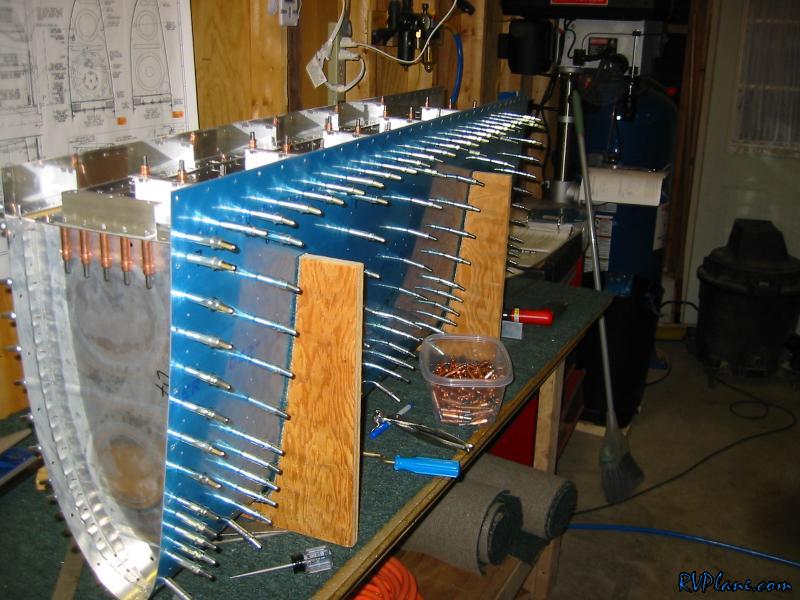

Next was onto clecoing the tank together.

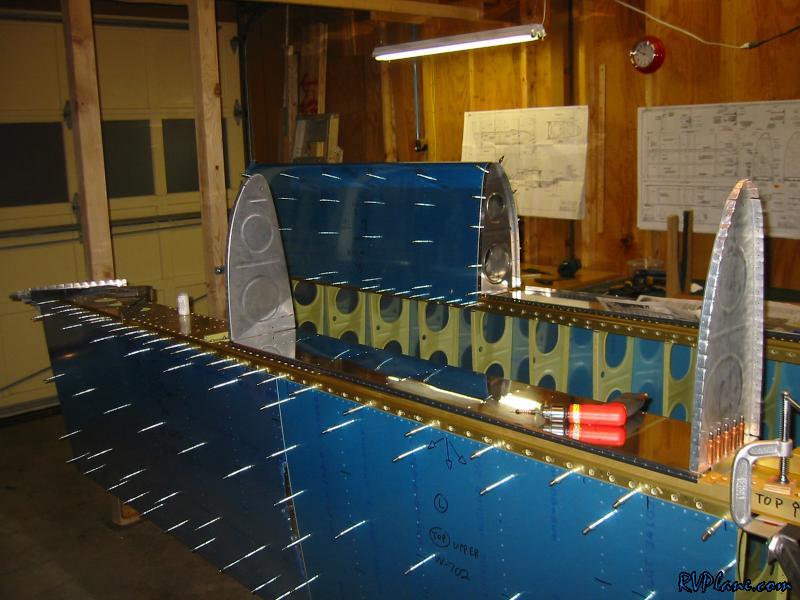

Then doing the final z-bracket drilling.

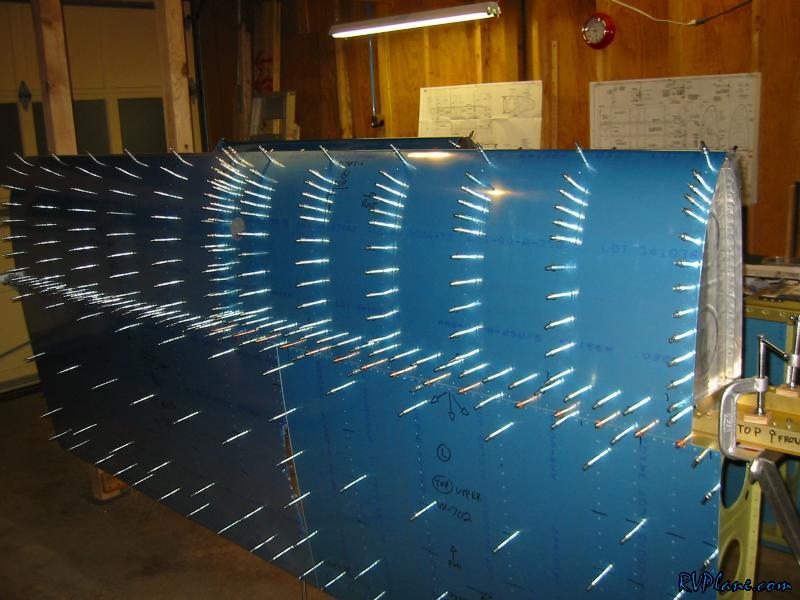

And finally, after a bunch of stuff going on and off the wing, the left tank is ready to be match drilled.
