[January 25, 2006]


Finally got back to working on the elevators. I went ahead and back riveted these suckers on. I started in the front and worked myself to the tip. The very last rivet was tricky to get because you need to peel the skin back. I did it with just pushing on it with my head. Worked well. When everything was backriveted, I noticed that 3-4 heads on the top skin trailing edge were a little cockeyed. I am going to drill these out and redo them, but I think this is caused with how awkward it is to hold the skin up to get these very last ones.

On the left skin, I started with the trailing rivets and worked myself forward and got MUCH BETTER RESULTS.

Next I backriveted all of the nutplates on the E-615PP reinforcement plate. I was able to backrivet all but 2, which I used the squeezer on.

Next I did the tedious task of devinyling the left skin. Took a good 2 hours.

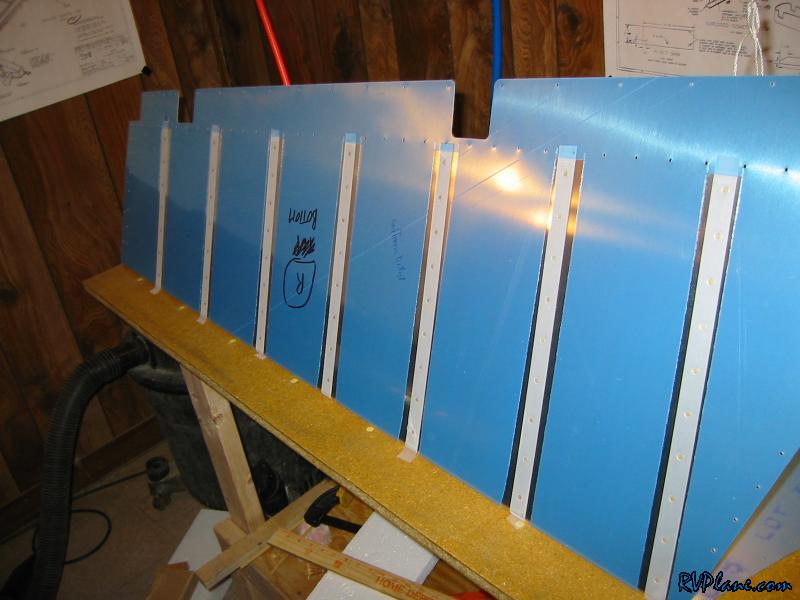

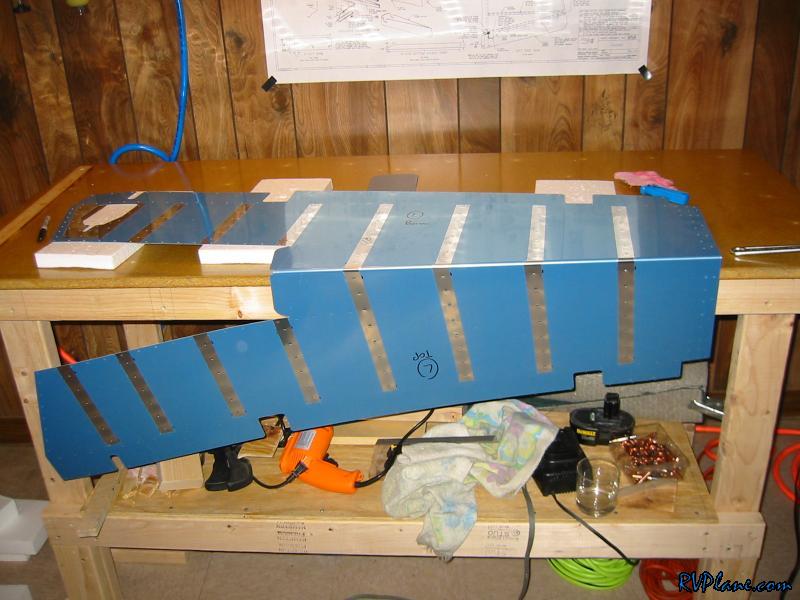

Rivets Taped in...

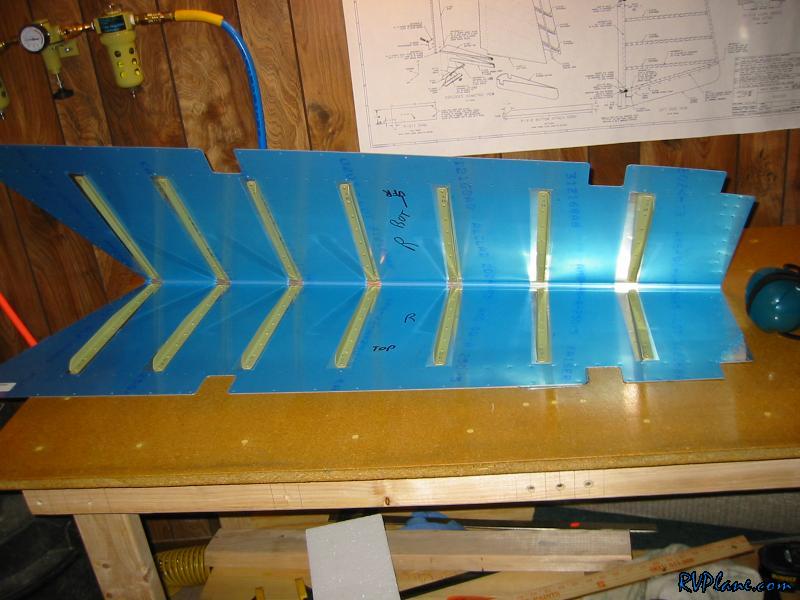

One side backriveted.

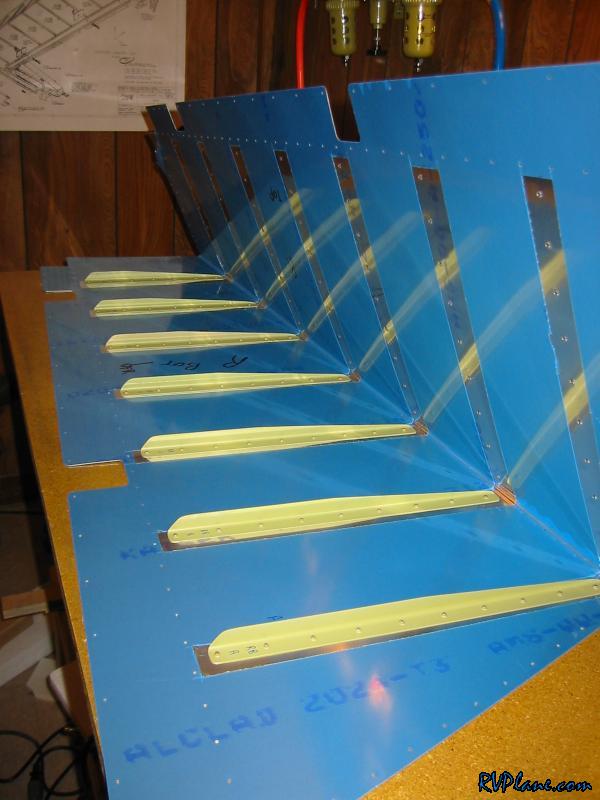

Both sides backriveted.

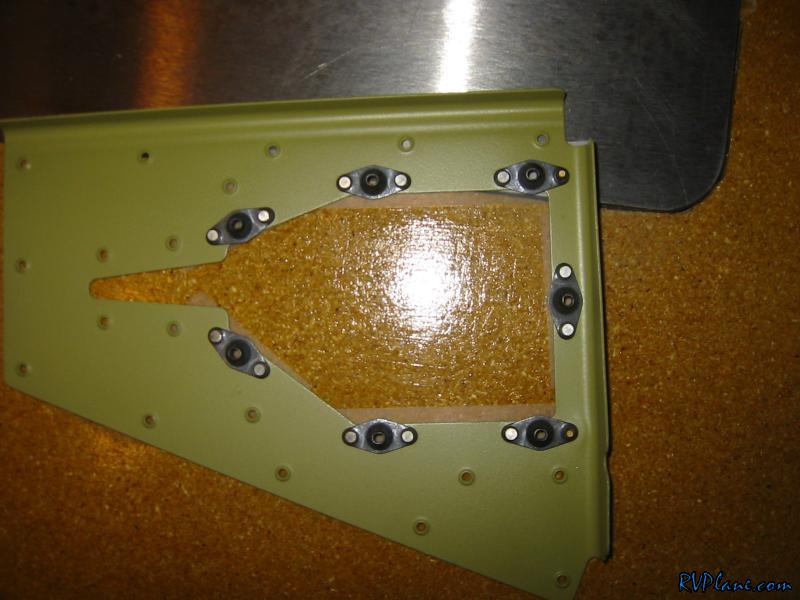

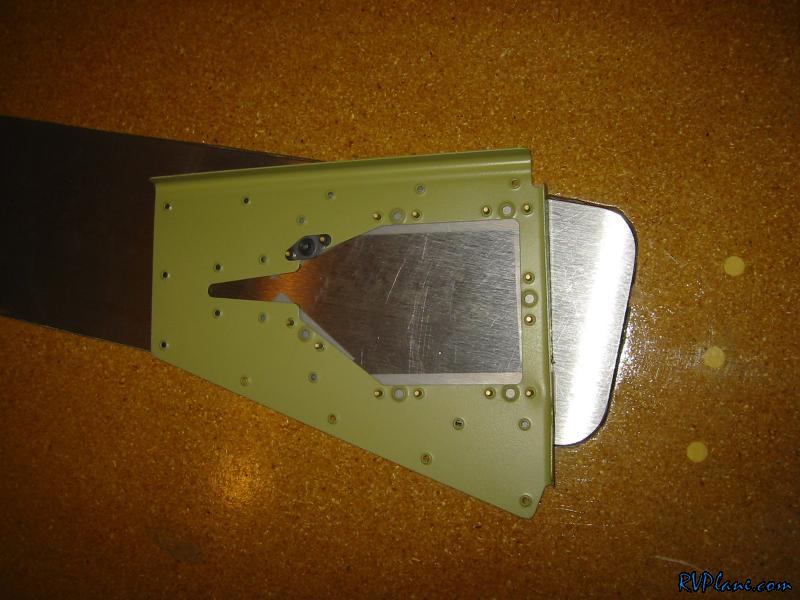

The reinforcement plate backriveted...except for 2

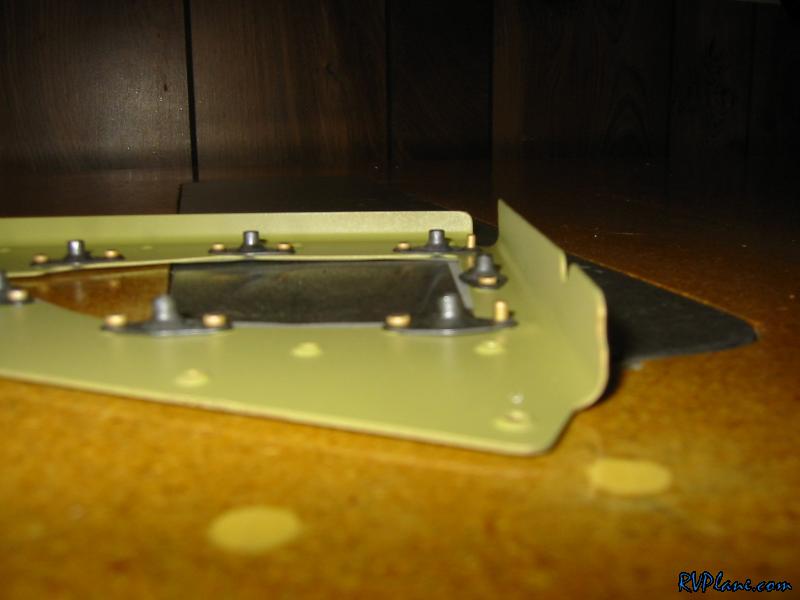

These two nutplates I couldn't backrivet because of the flange was in the way.


I layed the skin on the table like this to devinyl it. The other one I didn't do like this and it was a pain.


Nothing like maid service....

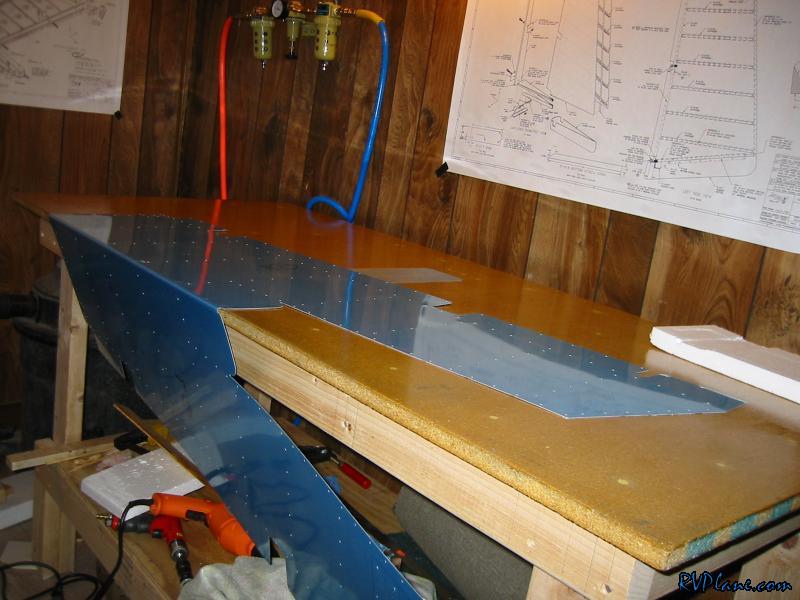

Skin devinyled.
