[March 4, 2011]

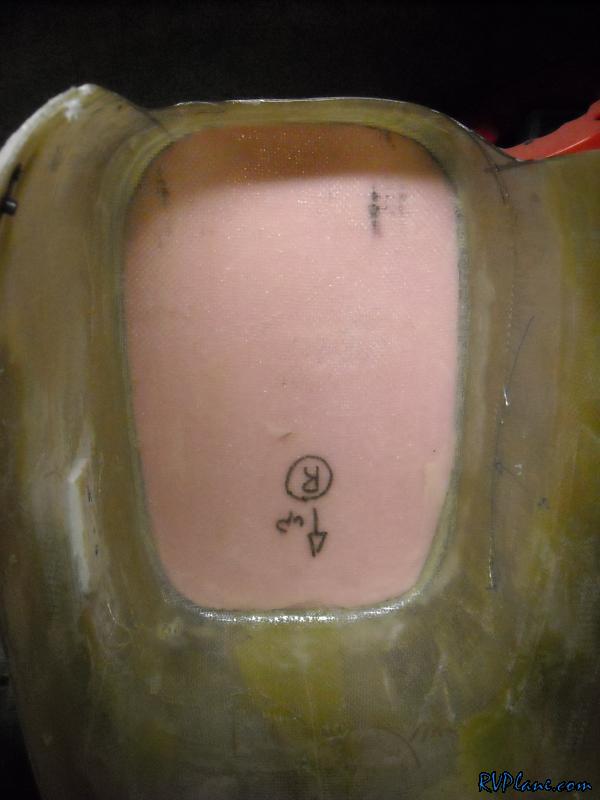

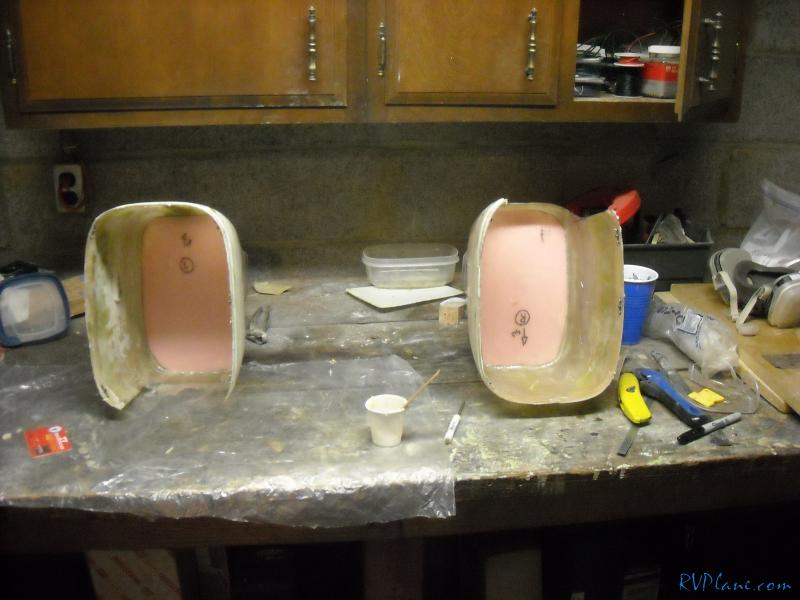

The Sam James wheelpants instructions recommend installing a mud guard on the back of the wheelpants. This is to keep any mud from piling up in the back of the wheelpants causing them to get out of balance. Sam recommends using wood, but my friend Chad Jensen used some leftover foamboard. I had some leftover too, so it was a no brainer. Light and easy to cut. I cut the shape (longest part of the process), used some flox to bond it to the wheelpants, then tossed two 8oz cloth layers over top of it.


It turned out very nice.

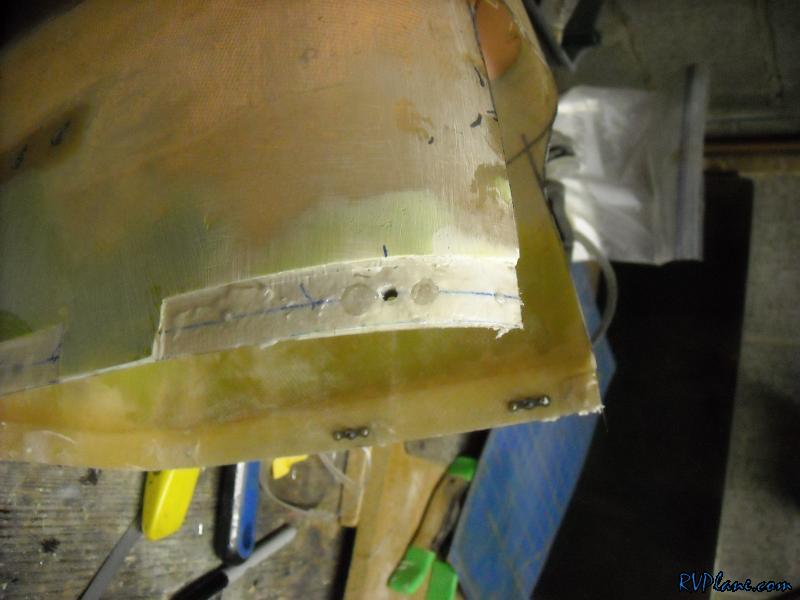

While I had some spare epoxy mixed up, I added in some flox and filled in some temporary holes I had between the two mating halves of the wheelpants.
