[September 10, 2009]

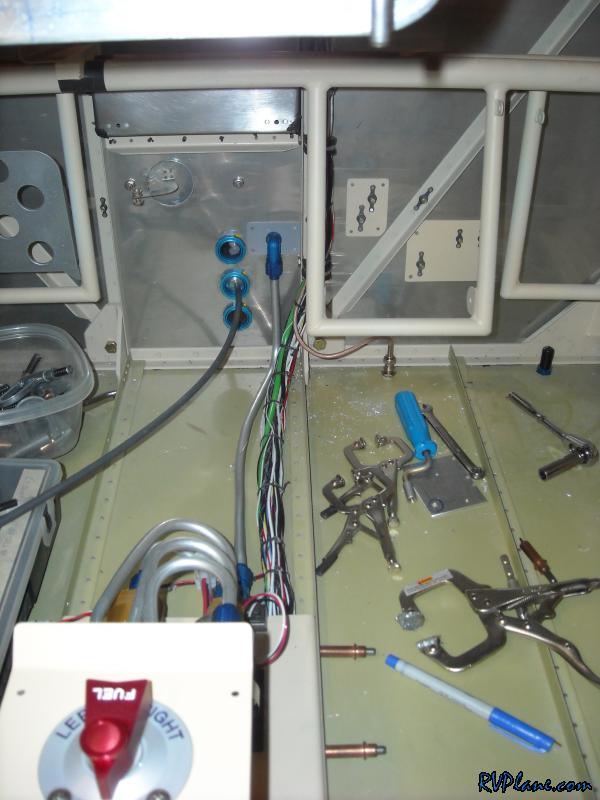

I wanted to secure the wire bundle going from the mid fuselage to the panel along one of the vertical angles up the firewall. However, to do so effectively, I needed to install the fuel pump and related lines so check for any interference.

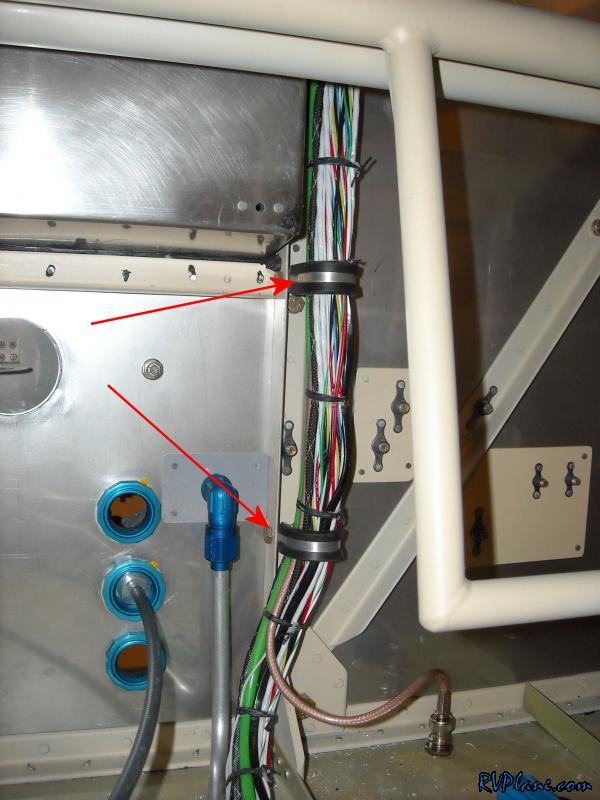

With no major interference issues (Phew!), I drilled some #12 holes in the vertical .063" angle up the firewall for some DG14 Adel clamps. Two on the bottom.

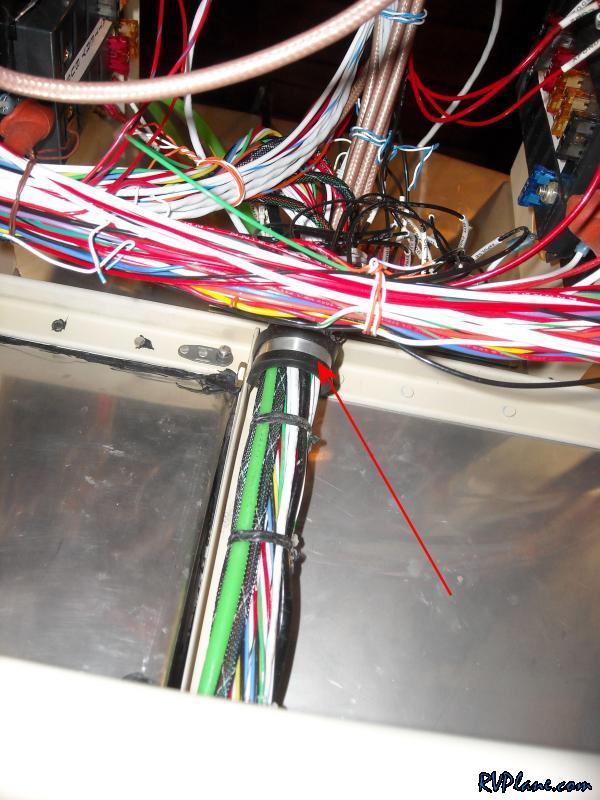

And one on the top. This is pretty much all I can drill into this angle without interfering with the recess.
