[August 13, 2009]

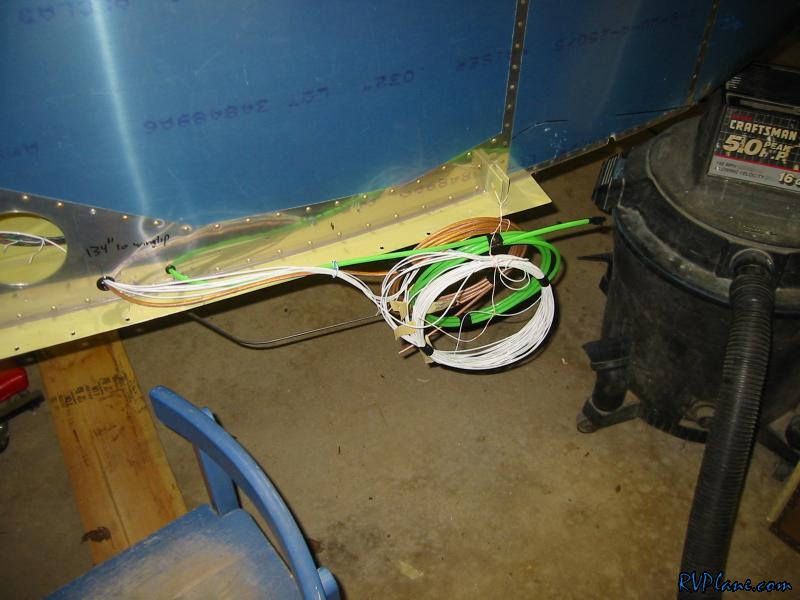

A whole lot of wire was consumed tonight! I ran wires for the wingtip landing light, taxi light, nav light and strobe. I am planning on putting in the Duckworks MR16 50W HID landing the taxi lights, and the AeroLEDs Pulsar NS90 navigation/strobe LED lights. This took a total of 6 wires. Two 16 gauge wires for the landing/taxi lights, two 18 gauge wires for the strobe ground wires, a 20 gauge wire for the navigation light and a 22 gauge wire for the strobe synchronization signal.

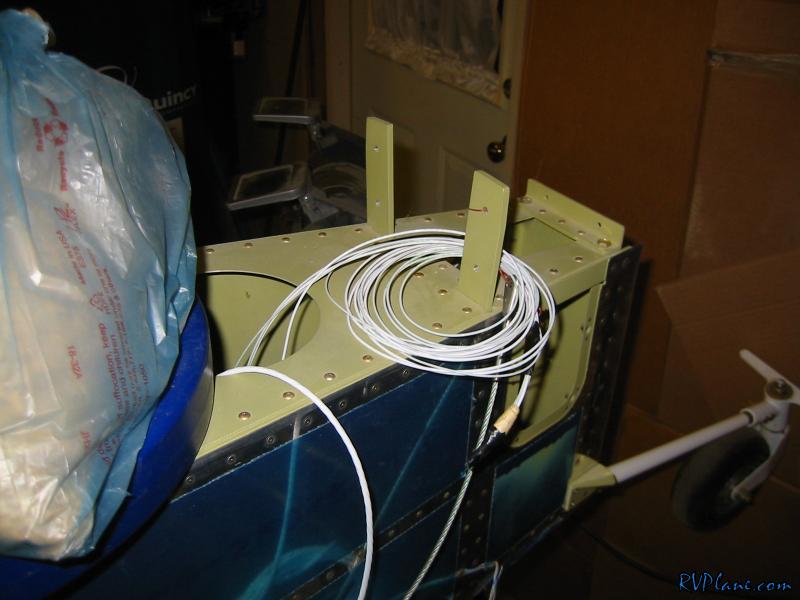

I also ran wires to the tail for the strobe and position lights for the AeroLEDs SunTail light.


Only the landing light wires made it all the way to the firewall tonight. All the other runs ended up in the center fuselage to be connected together later. It was a lot of work getting all the runs where they were.


Like I said above, here are the two landing light leads. They will interface into the xeVision HID wig-wag box.
