[August 10, 2009]

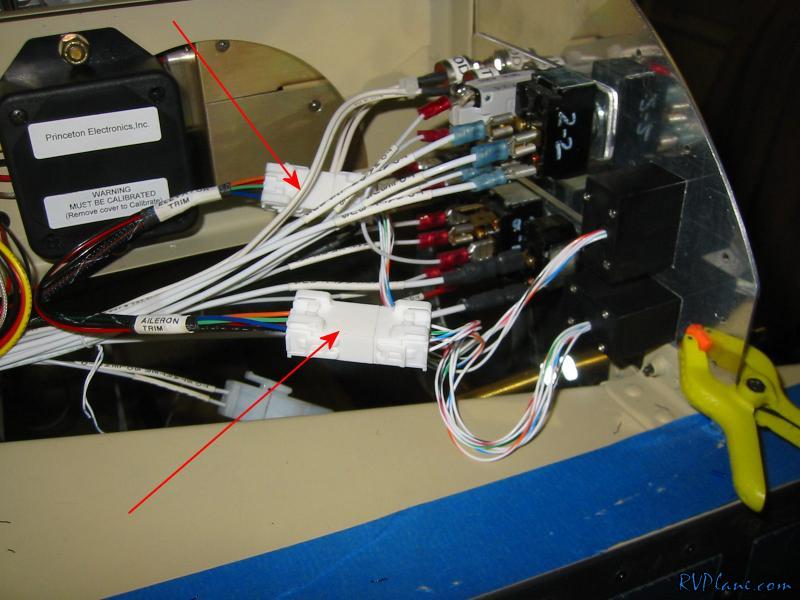

I am using the Ray Allen LED trim indicator displays for my aileron and elevator trim. The displays have two power wires, one dimmer wire (optional) and three wires that need to be wired back to the servos. I put a mini Mate-N-Lok connector on the back of the displays and mounted them in the panel. Then I made some 3 wire bundles and wired them all up.

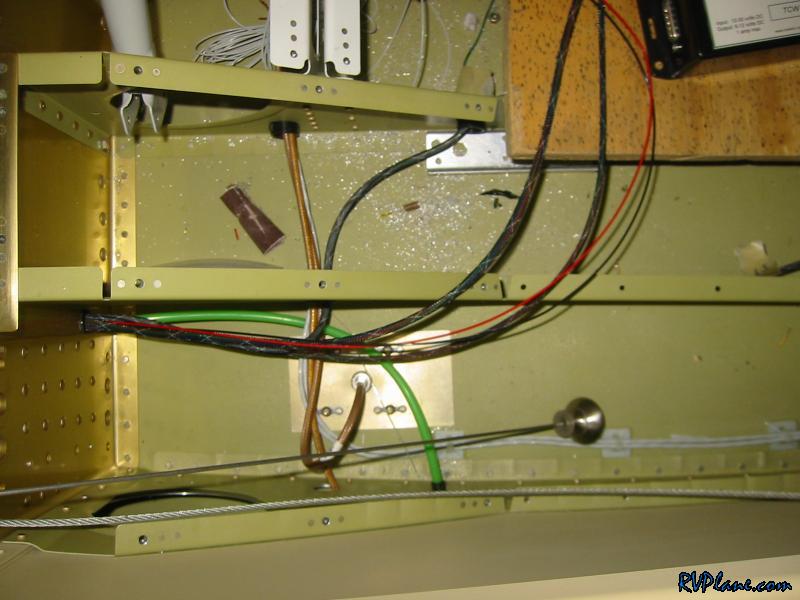

Here is the end of where the wiring will go for the indicators -- under the pilots seat.


The reason I am only going this far is I am using the TCW Technologies Safety-Trim controller. I am using the Ray Allen wire (5 conductor) to run the two servo control feeds to where this box is located, then break off the 3 wires for trim indication to the panel.

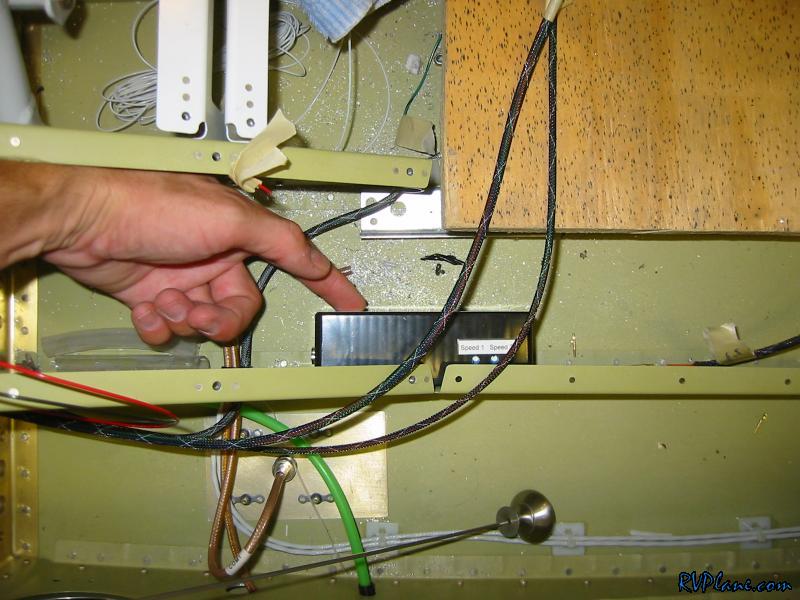

Here is where I think I am going to mount the controller.

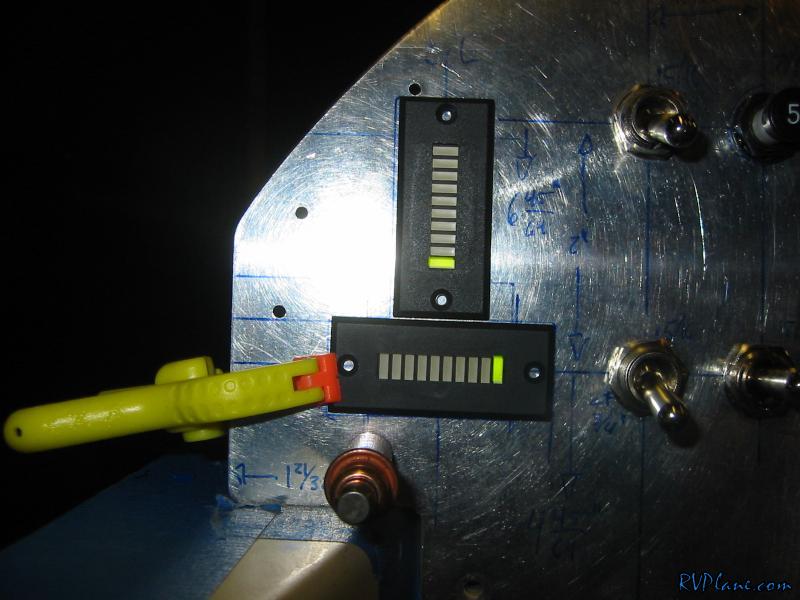

And with the master switch on, the LED segments came alive. A lot of work tonight with very little to show.
