[June 22, 2009]

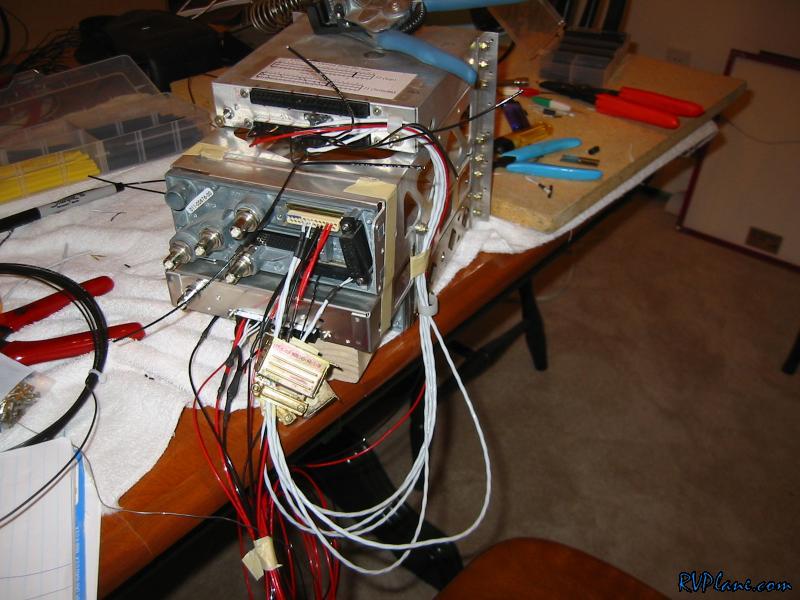

Great night tonight. I ran the COM1 2 Microphone and headset shielded wires between the Garmin 430 and the ICOM A210 to the audio panel. The shielded wires a quite a bit of work to break off the shielding that will need to be grounded. The harness is really moving along nicely now. I don't have too much more work to do. It's mainly just some ARINC and RS232 feeds left.
