[March 19, 2009]

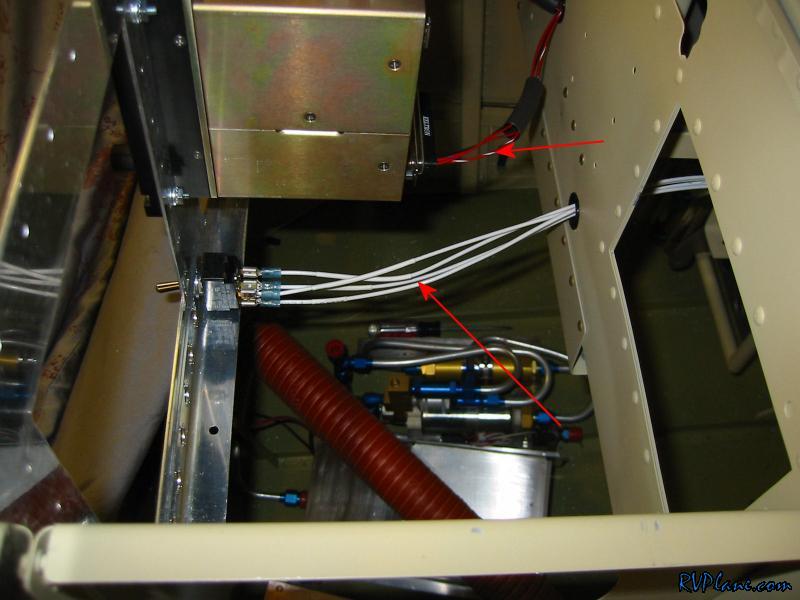

I got a small order from Aircraft Spruce today with the 14 AWG wire I ran out of. When I got home I quickly got to work installing the rest of the E-Bus circuitry and the avionics master switch. I also wired up both EFIS's power feeds to the Avionics Bus and their keepalive circuits to the battery bus. I tested out the avionics master switch with all the diodes it goes through and everything is working as planned. Great night on the project.


I really struggled with the Dymo label maker tonight. The thing is really a piece of crap. It started eating the 1/4" shrink wrap tubing. Not a big deal, but the 5' cartridges of the tubing is $30! I don't know if their are any other alternatives to this label maker that is affordable. When it works, the results are pretty professional. I might have to look closer into why it eats the labels and make a modification.
