[February 14, 2009]

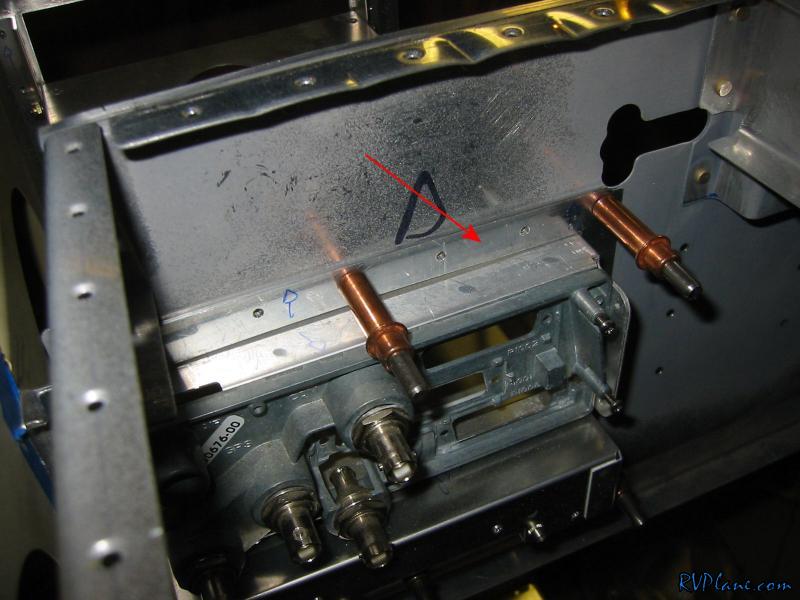

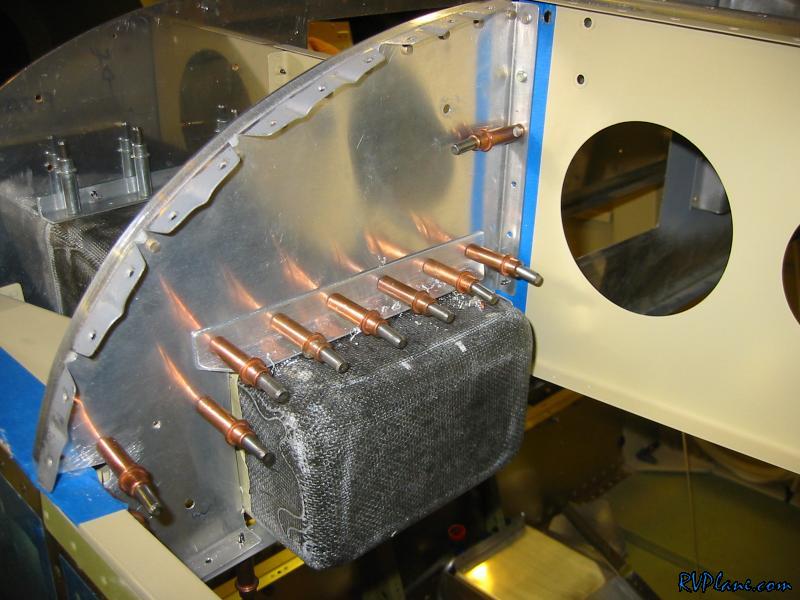

The right subpanel above the mapbox was really wavy. I thought it made sense to toss some 063 angle on the top of the map box cutout to reinforce the subpanel a little.

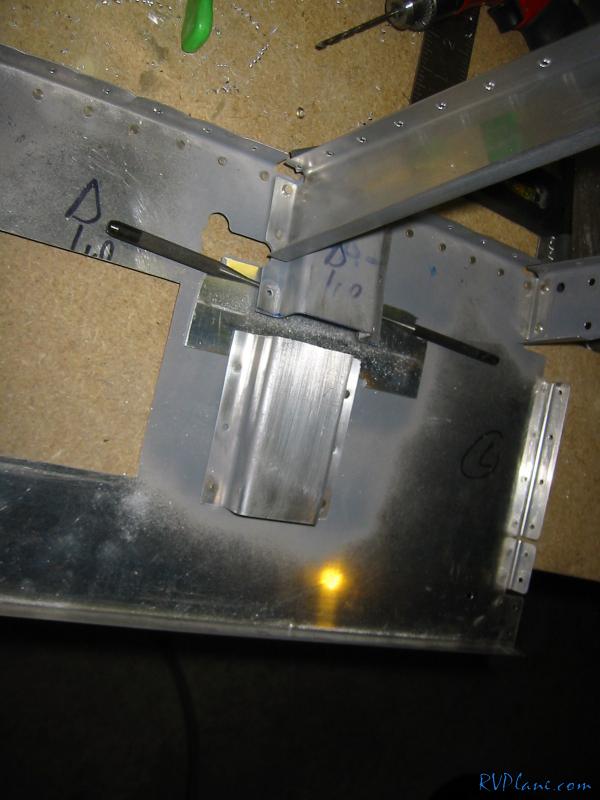

I think I figured out where to mount my auxiliary battery, but it would interfere with the "hat" section of aluminum on the forward face of the subpanel. Since this is only for the jettison feature (which I am not using), I needed to remove it. While I could of removed the whole thing, I would of needed to drill out a TON of rivets. It was easier to chop it in place with minimal rivet removal.


I also added a 063 doubler to the avionics cutout in the subpanel. In the upper right hand corner it got pretty thin, so I felt a little better with this doubled.
