[April 3, 2010]

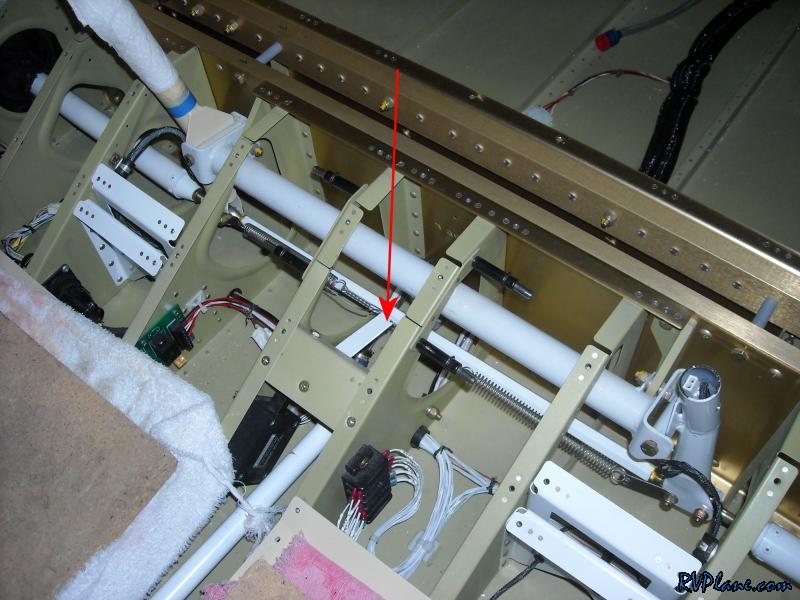

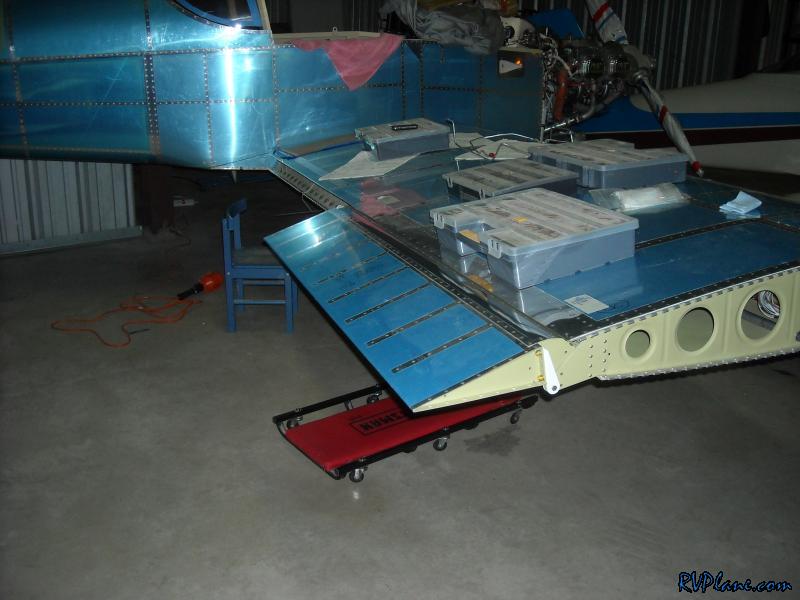

I mounted and rigged up the right aileron tonight. I then rigged the pushrods to the control sticks in the fuselage.

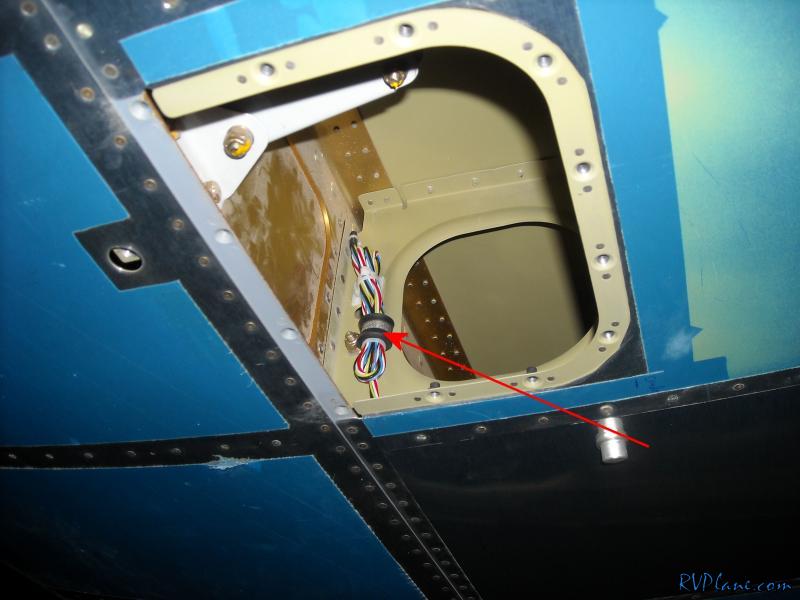

Also I secured the extra autopilot wiring I ran out to the wings and wired the Outside Air Temperature sensor. You can see here I secured the wires to the rib in a way they wont interfere with the control pushrods.


Next I gave a shot at rigging up the aileron trim. Springs and safety wire - love the simplicity. Some more work needs to be done to fine tune this, but it's a good start.
