[August 26, 2008]

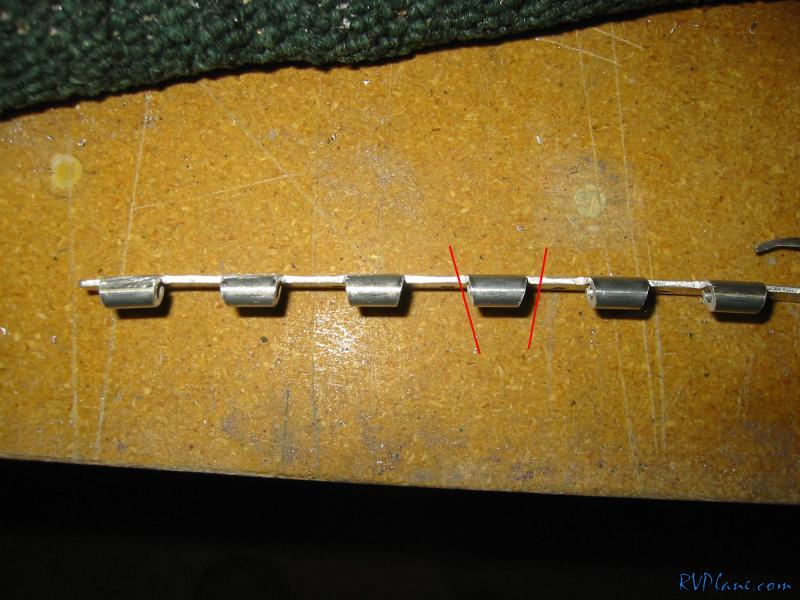

Although I have only one pic from tonight, I was in the garage at least two hours beveling and thoroughly deburring the firewall hinges. The bevel needs to be on the hinges on the right turn so the cowl can be installed. Without the bevels, the cowl would be very difficult to put on. I also deburring the hinges really well because these eyelets are known to occasionally break off. They have some pretty nasty edges as it is, and I am sure they lead to stress cracks. My goal was to try to minimize that. However, it was quite a tedious process.
