[April 23, 2008]

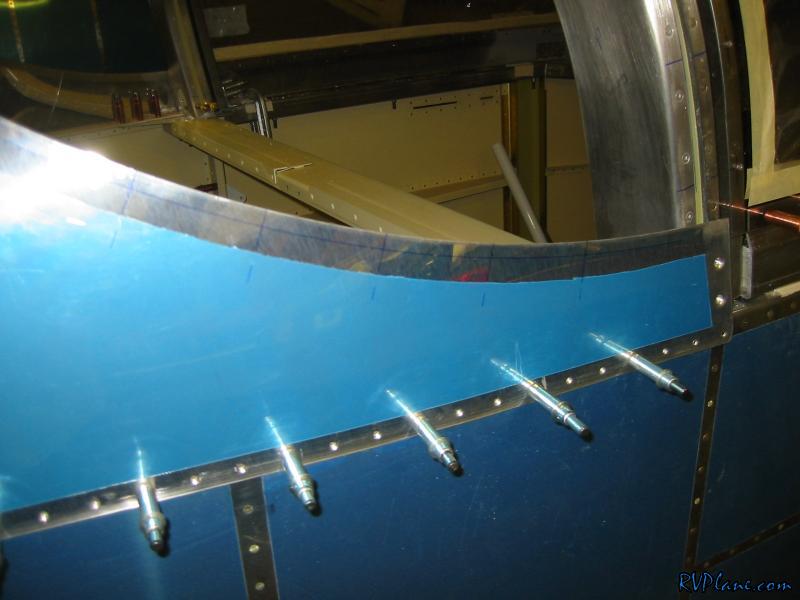

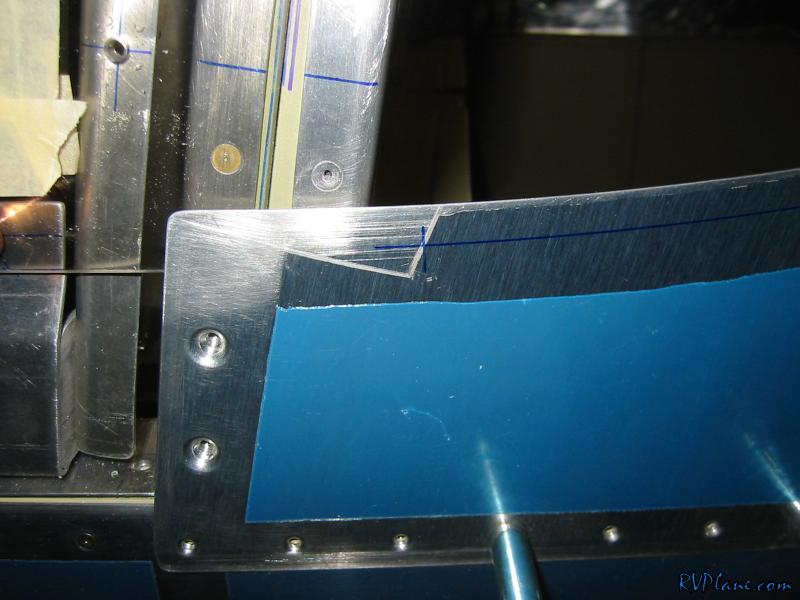

Tough to see in this pic, but I put a line around the perimeter of the aft skin and then marked the first hole 2" from the front edge of it.

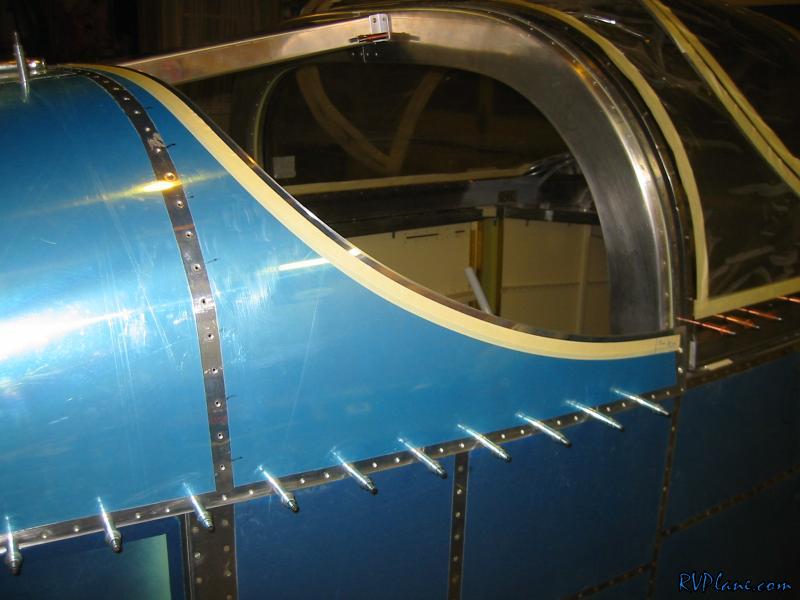

I needed to mark 14 evenly spaced 2.5" holes along the bend. I had a hard time with a ruler doing this, so I took a piece of masking tape and put it along the line I drew.

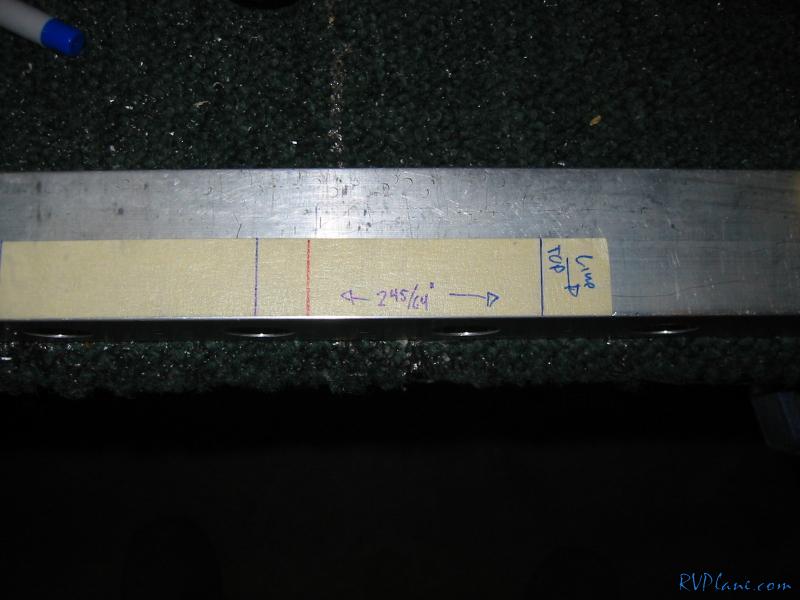

I marked the center.

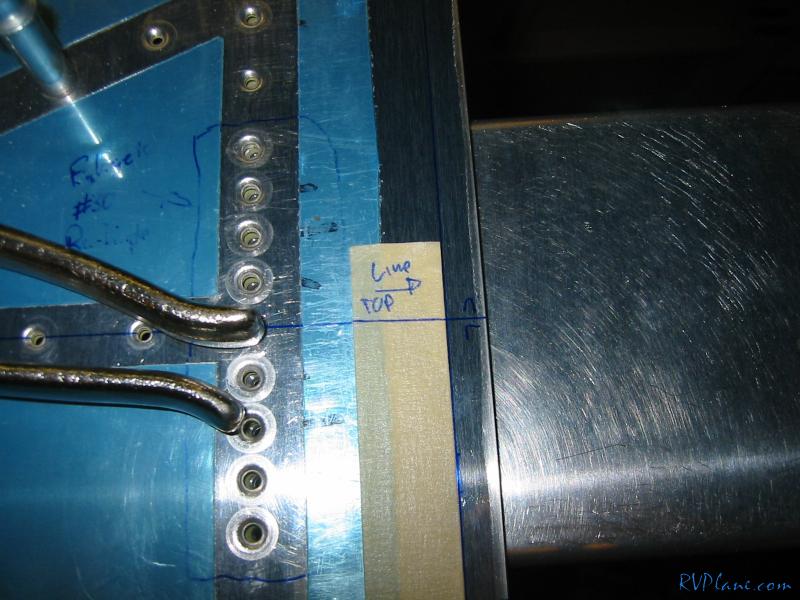

And I marked the end.

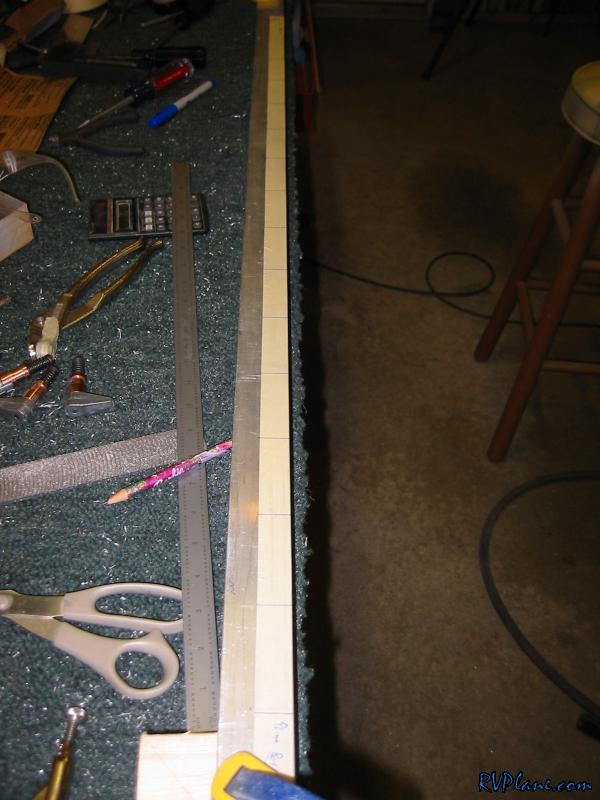

It was simple now to lay out the drilling pattern.


The top-most screw isn't perfectly evenly spaced with the rest. I centered it between the two sides.

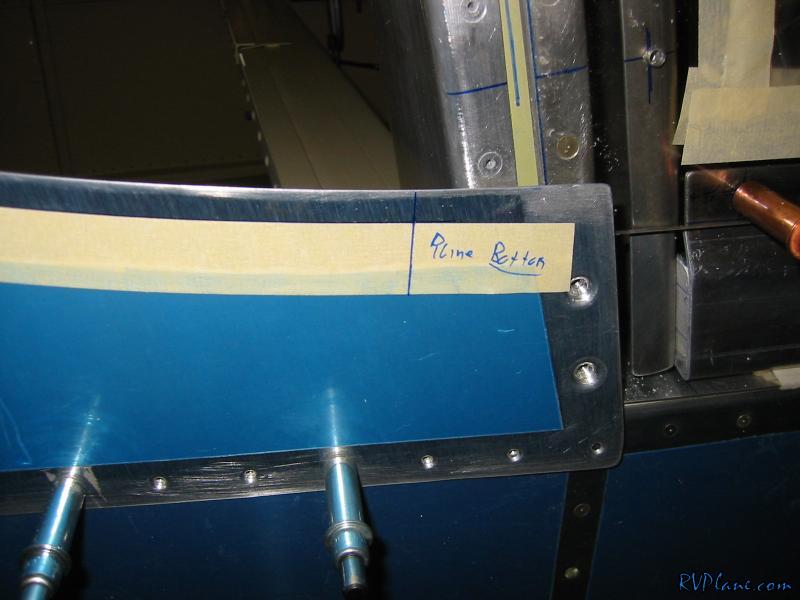

With the masking tape back on the plane, I transfered the marks back onto the aft skin.

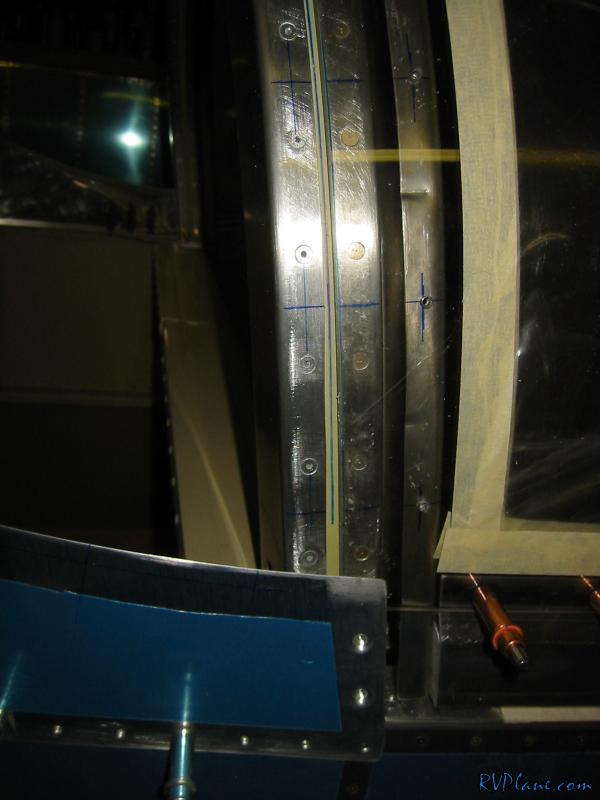

Next I marked the rollbar for the holes. I am so beat tonight it isn't worth drilling these holes. But, the hard part is over -- layout of holes always sucks! At least tomorrow I get more-or-less of a free ride.
