[April 6, 2008]


So last night I was agonizing how to mark off the front of the canopy so it would be symetrical. Well, everything I tried led to failure, so I taped it off by eye and let her rip. I need to move on!

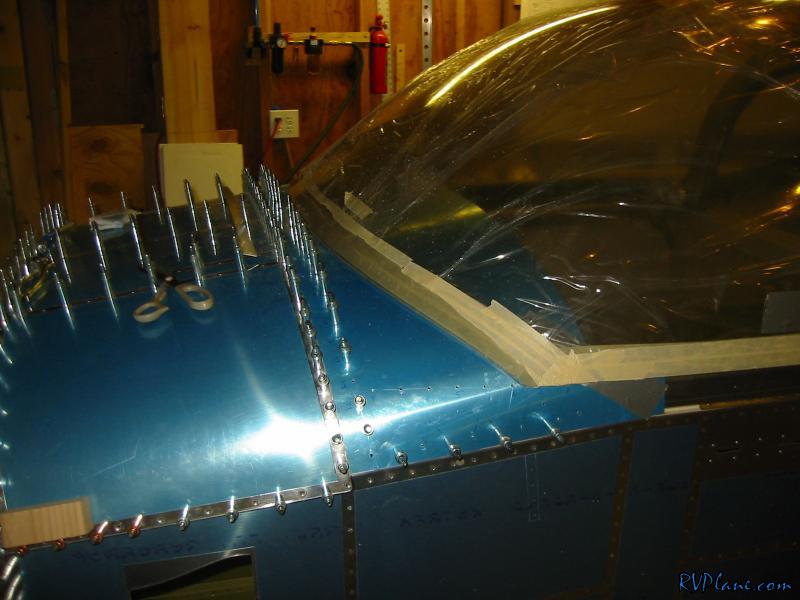

My initial trim...looks alright.

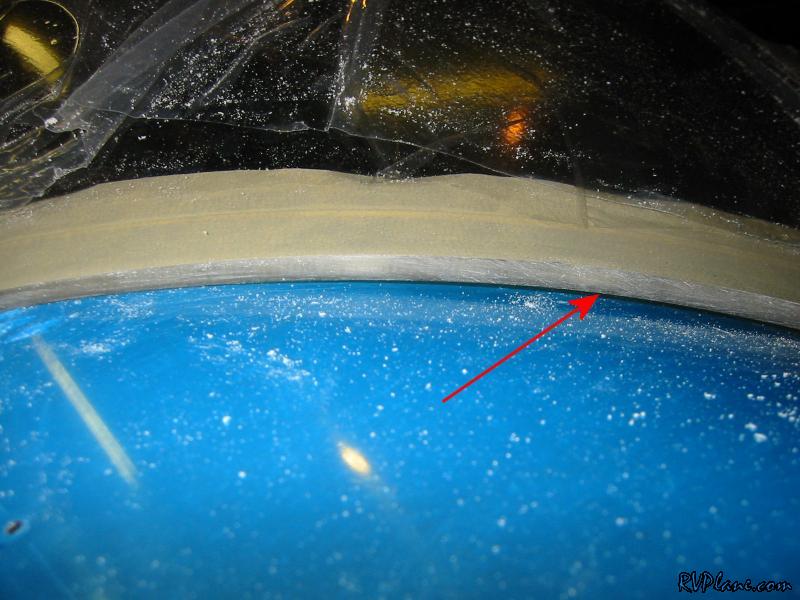

I have about 3/32" gap at the middle

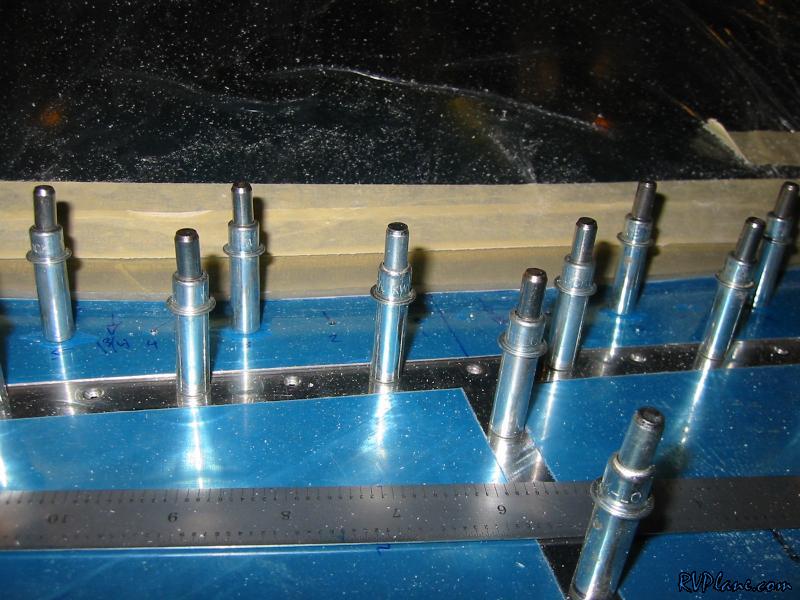

And about a 1/16" gap on either side.


I marked the vertex of the gaps and trimmed from vertex to vertex. That seems to work really well to get the gap down. Once that was done, I trimmed the front so it was somewhat parallel to the front of the skin. That got my gap in the middle to nothin'.

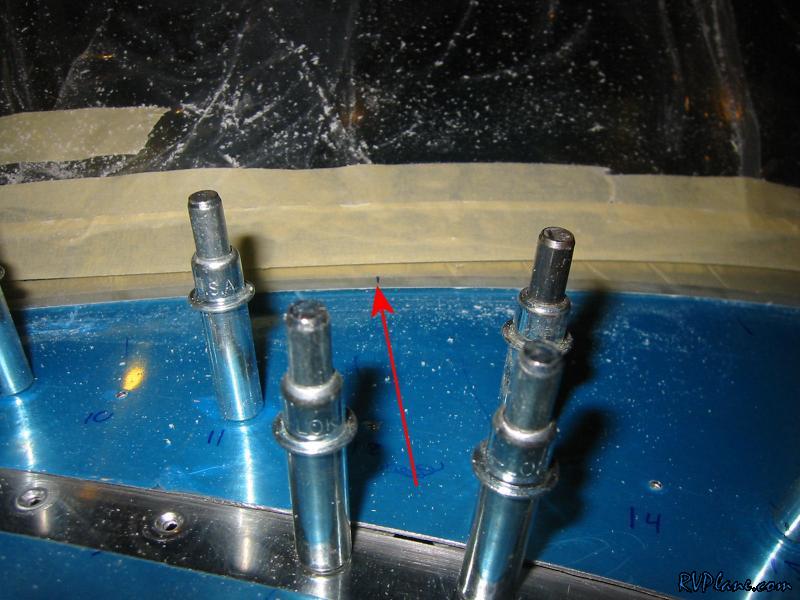

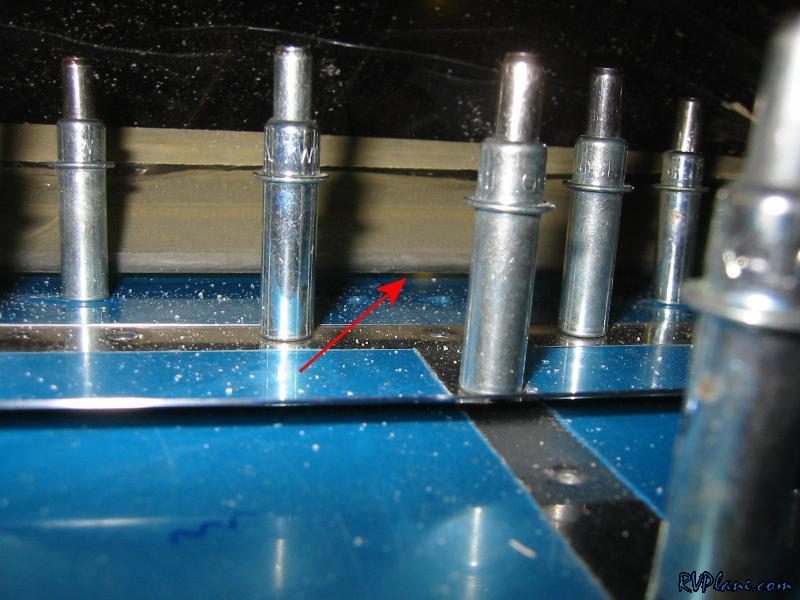

I battled a gap on either side, about 1/32". I still don't have this one solved, but I am not going to worry about it too much either. I don't feel too bad pulling the canopy tight to get rid of this little gap. Not much stress will be induced on the canopy from that.

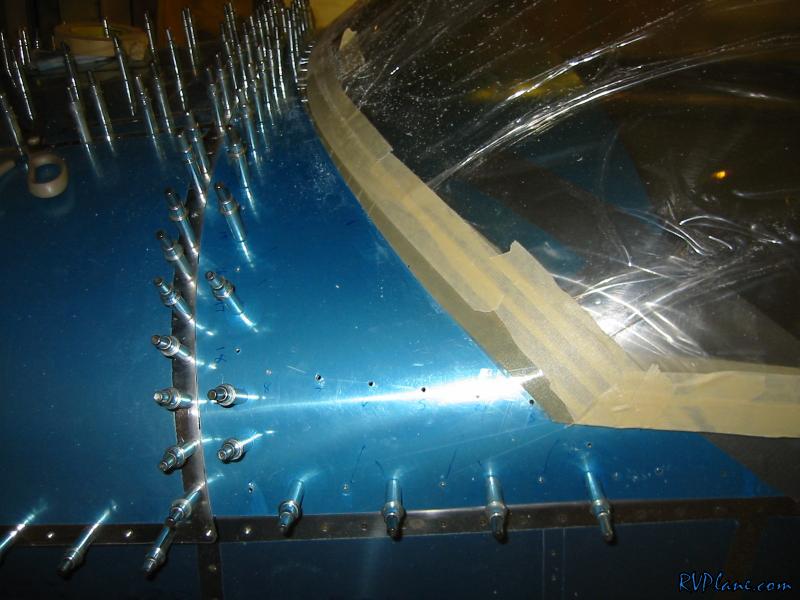

Here is a side profile of where I am at. You can see I numbered all of the holes on the canopy skin. That is so I can easily check for symmetry between the sides.

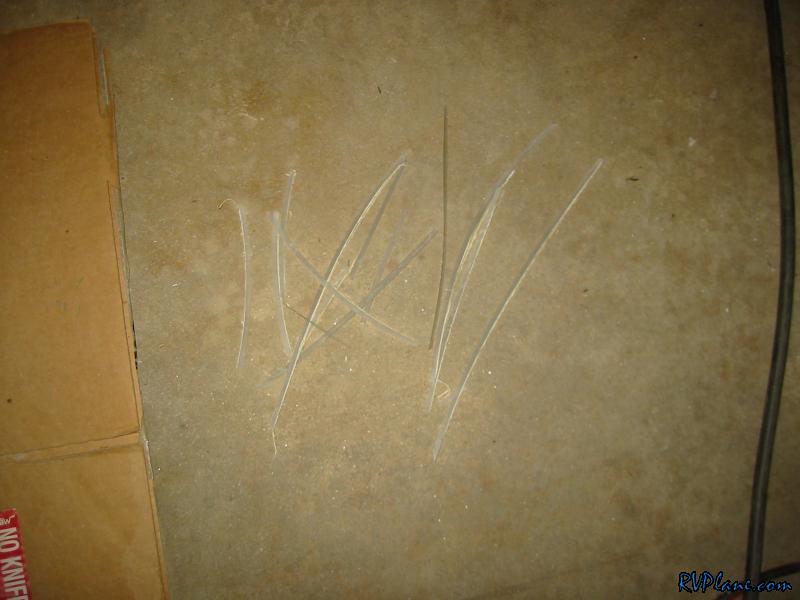

Here are all of the slivers of canopy I had to cut. I honestly had the thing on and off about 7-8 times tonight. It is iterative, but its not all that bad because I can see progress happening.
