[May 27, 2008]

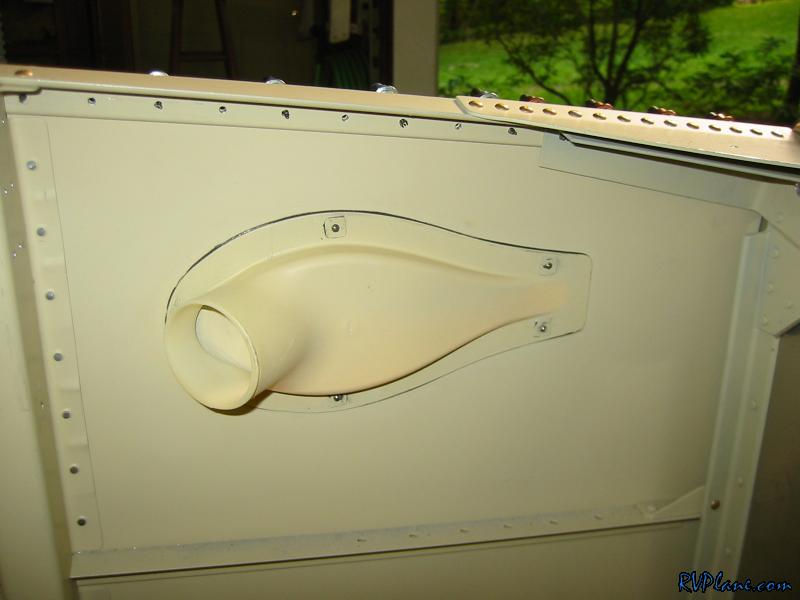

I mixed up a batch of proseal today and attached the NACA air ducts to the sides of the fuselage. I used MK-319BS pop rivets, and a little 3/8" square .025 backer that you can barely make out in this pic.

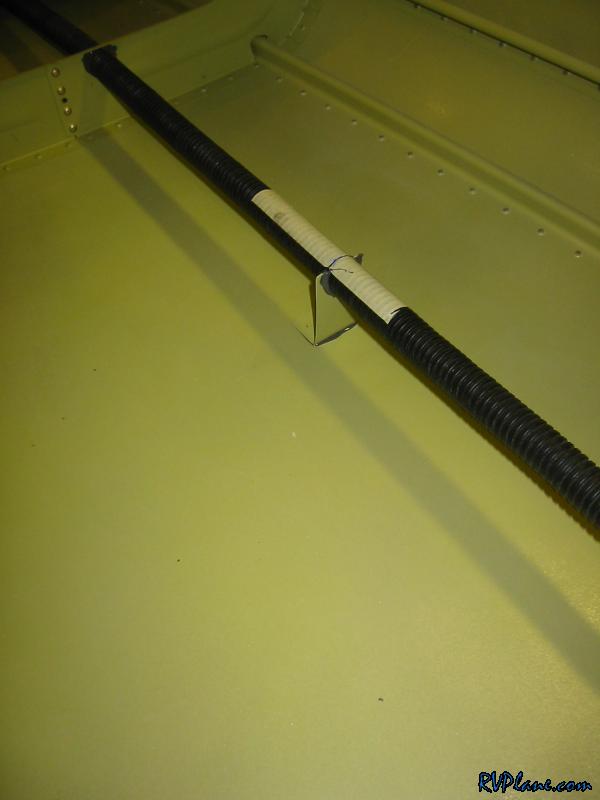

When I ran the conduit for the aft fuselage, I wasn't going to put in any supports. Well, after thinking about it, it was a long run between the bulkheads (about 24"), so I decided to make little support brackets just in case. I simply prosealed them to the bottom skin.

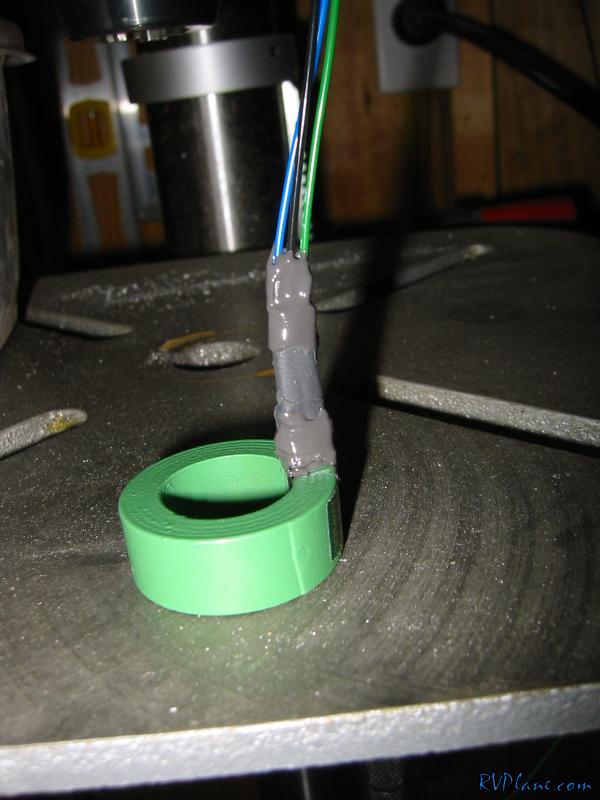

I received the Grand Rapids hall effect current sensor for the firewall today from Stein Air. While I had some proseal mixed up, I decided I might as well try to cover some of the exposed connectors.

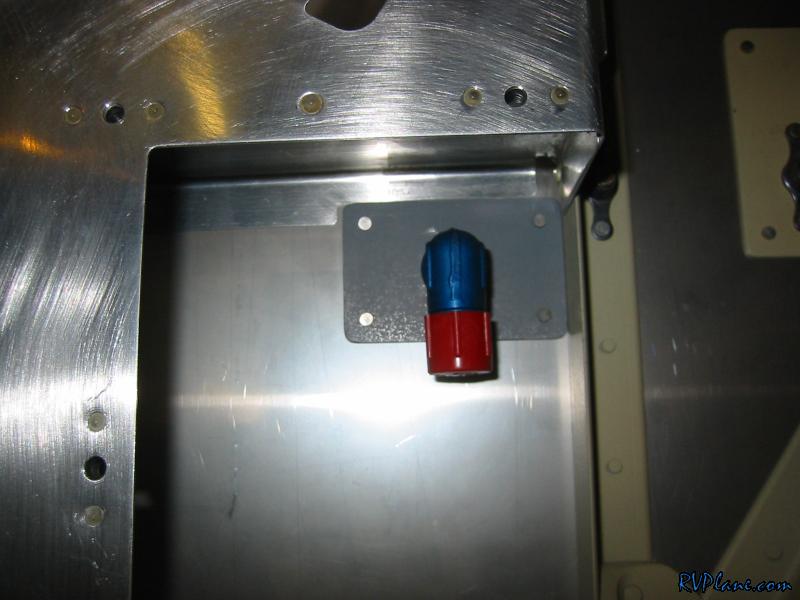

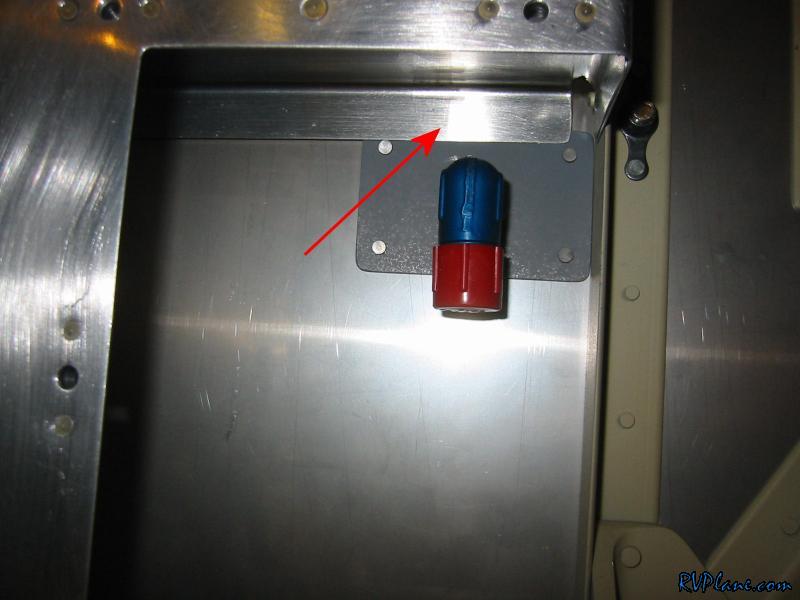

Lastly, on the inside of the fuselage, I notices the forward tunnel cover interfered with the doubler for the fuel passthrough.


I did a little trimming and fixed it right up.
