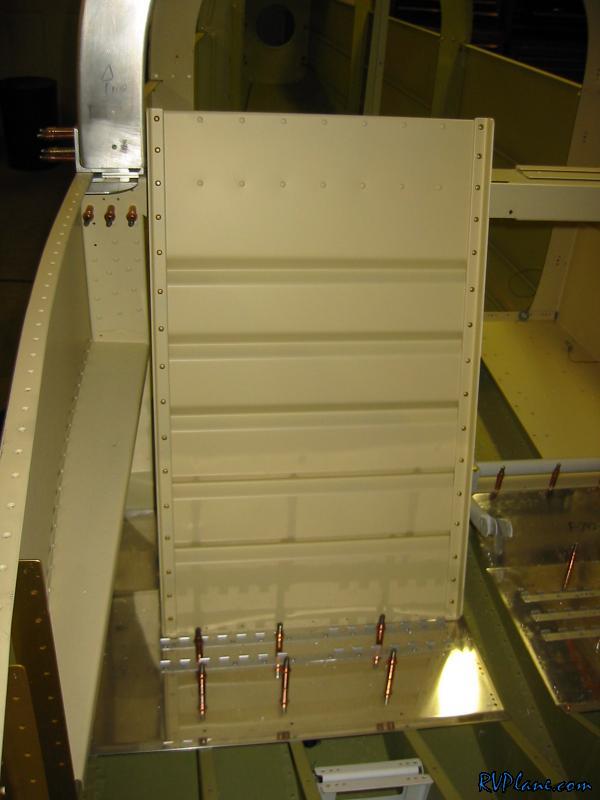

With the canopy frame out of the way, I could now fit the seats to make sure there wouldn't be any interference with the seat back braces and the roll bar. I temporarily put the seat backs in.

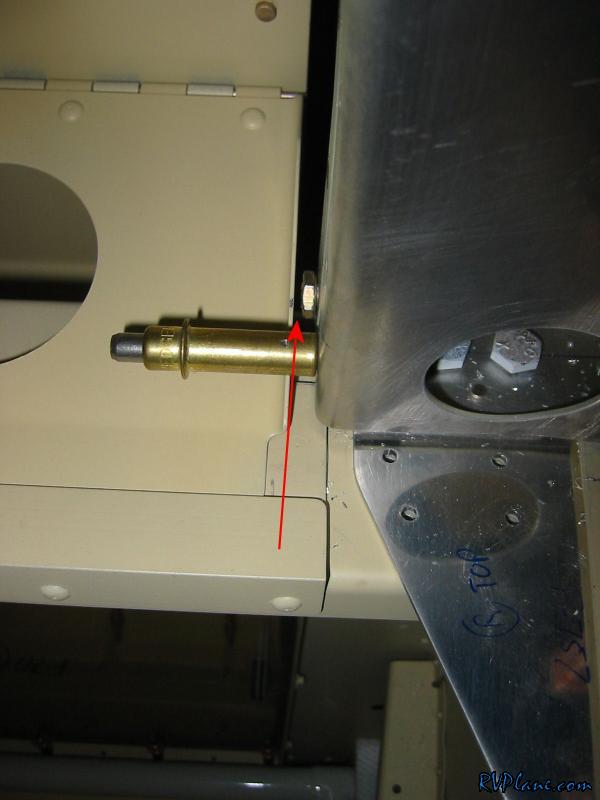

I slipped an AN3 bolt into the inside of the canopy frame and judges the clearance I needed with the brace.

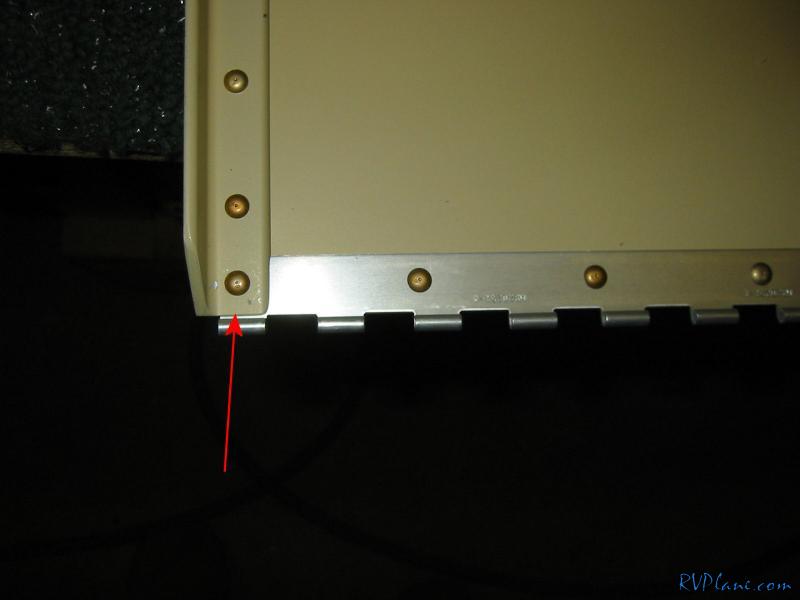

I needed to move everything over about an eyelet. One issue I had was the hinge is supposed to sit further up on the seat back that it is pictured, but it can't because the eyelet interferes with the angle on the side. With the called out -3 hinge, this led to edge distance issues. I just happened to have some -4 hinge around and that was the ticket.

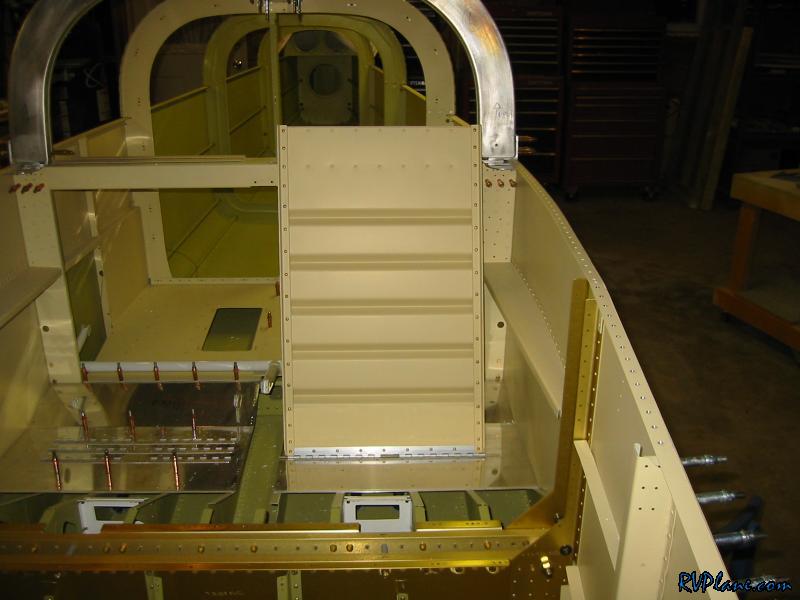

The seat backs fit perfectly now.


Lastly, I started working on making the angles for the subpanel.
