[March 1, 2007]

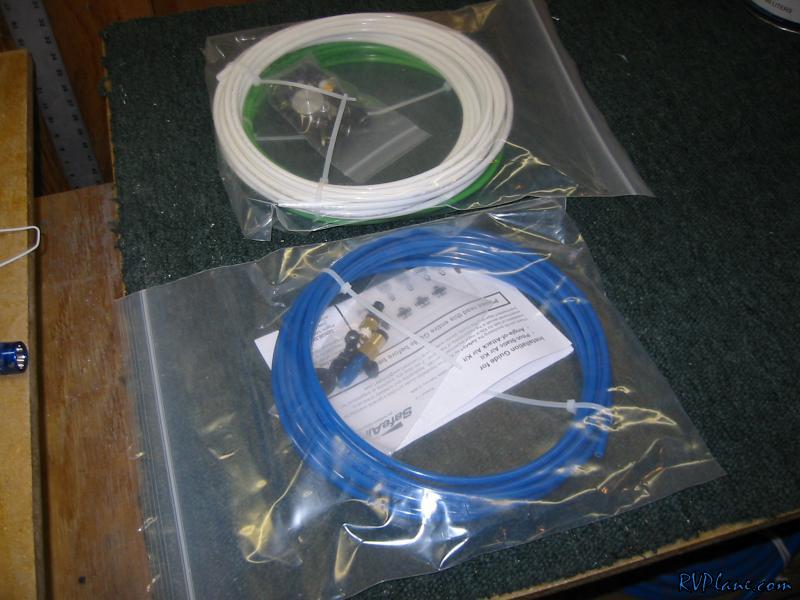

First things first, I received my pitot/static/aoa tubing kit from SafeAir1. It got here fast! SafeAir1 has great customer service.


Next I riveted together the aileron brackets, then riveted them to the wing. I was able to squeeze all of the rivets except for two on each bracket. I thought that I would post how I oriented the flush rivet on each bracket. Hopefully it will help someone. Make sure that you install the bearings before you rivet the brackets together! I worried I would get ahead of myself and forget that important step.

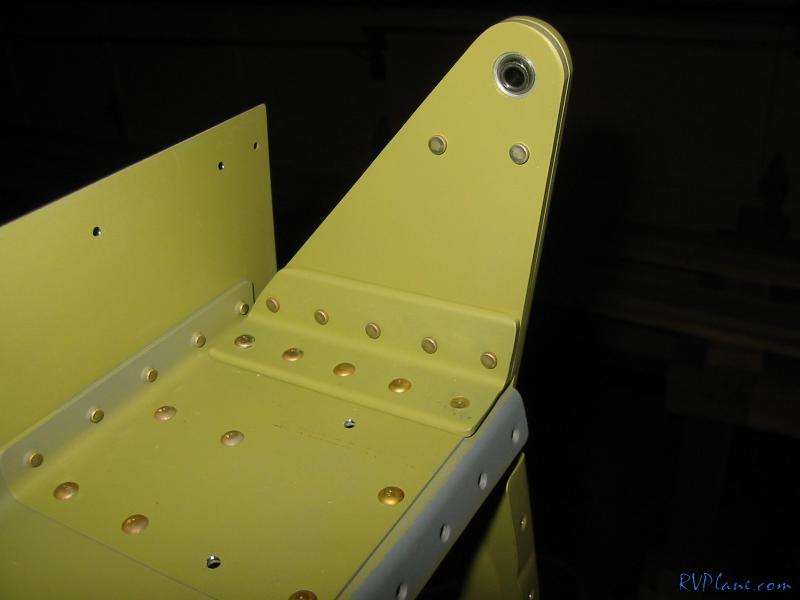

This is the inboard bracket, inboard side.

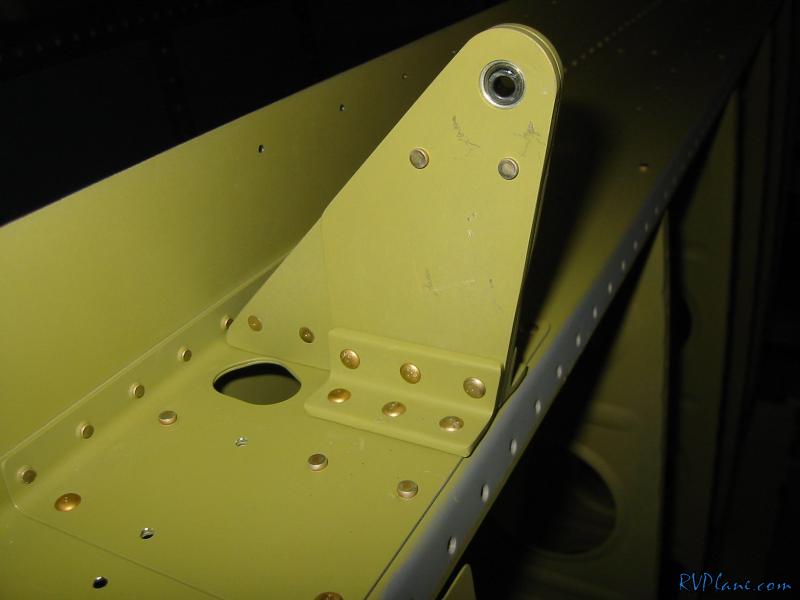

Inboard bracket, outboard side

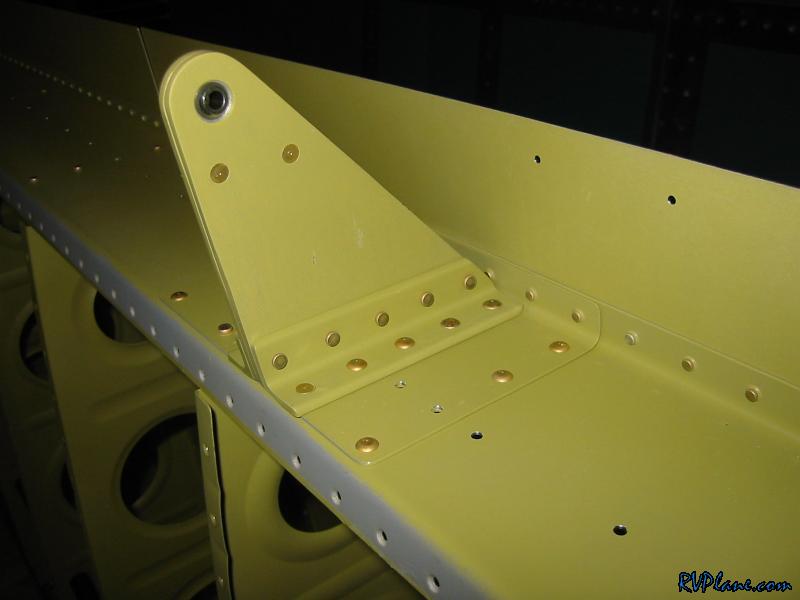

Outboard bracket, inboard side.

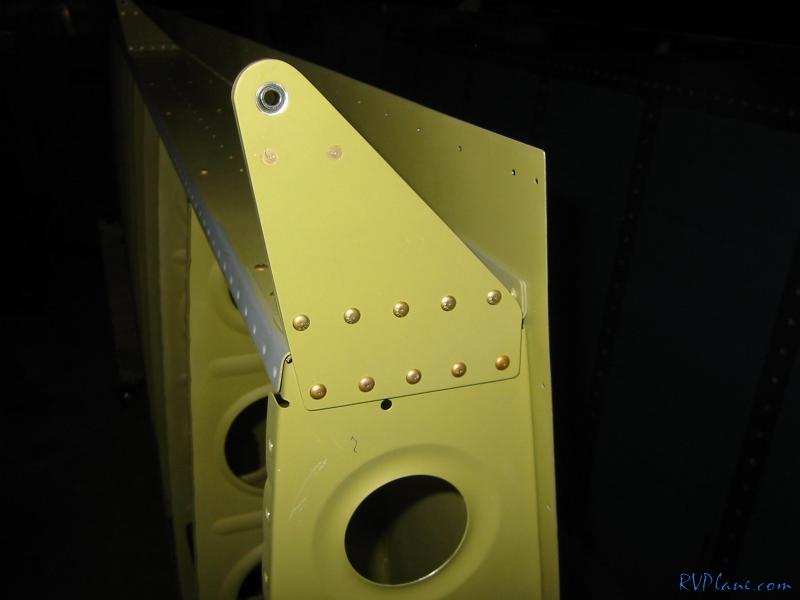

Outboard bracket, outboard side.
