[January 10, 2006]


I did the repetative task of deburring the edges and holes of all 29 of the elevator stiffeners as well as dimpling. It seemed like the pile of stiffeners was never ending.......

I also almost forgot to cleco the trim servo reinforcement plate to the elevator and match drill. I am planning on doing a massive prime job of the rest of the rudder components and the first batch of elevator components. Tomorrow looks like it will be raining, and I am going away for a long weekend, so I probably won't be able to prime for another week or so. It has seemed like forever since I have riveted, but I will definitely have my work cut out.

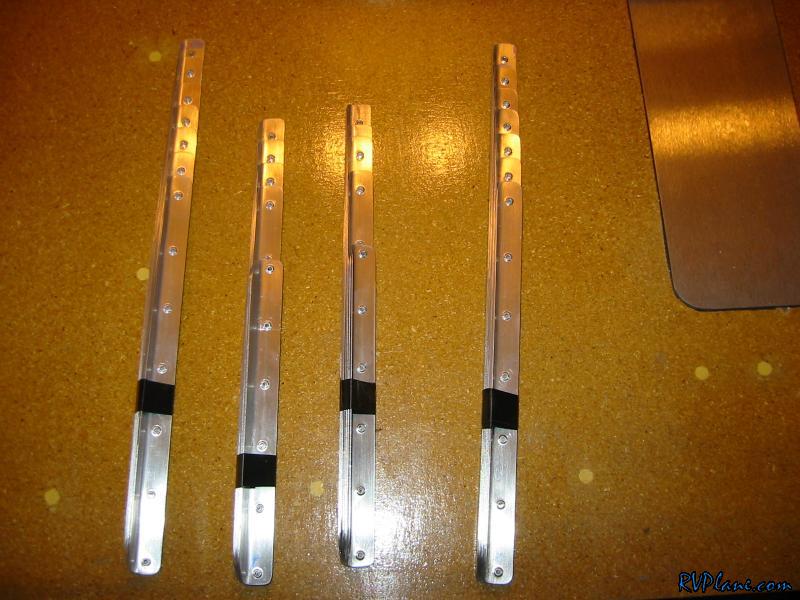

All of the stiffeners deburred and dimpled. I put them all in groups according to Left, Right, Top and Bottom. I marked them also, but the grouping is for backup.


All of the components I need to prime. This box just keeps on getting fuller and fuller and fuller.

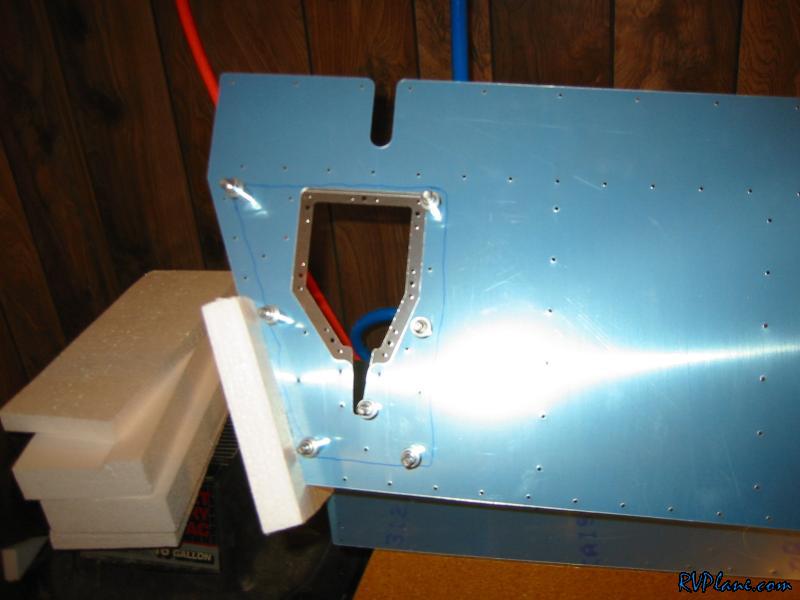

The stiffener plate for the trim servo. I put a line around the perimeter of the plate so I knew which holes to drill.
