[September 11, 2019]

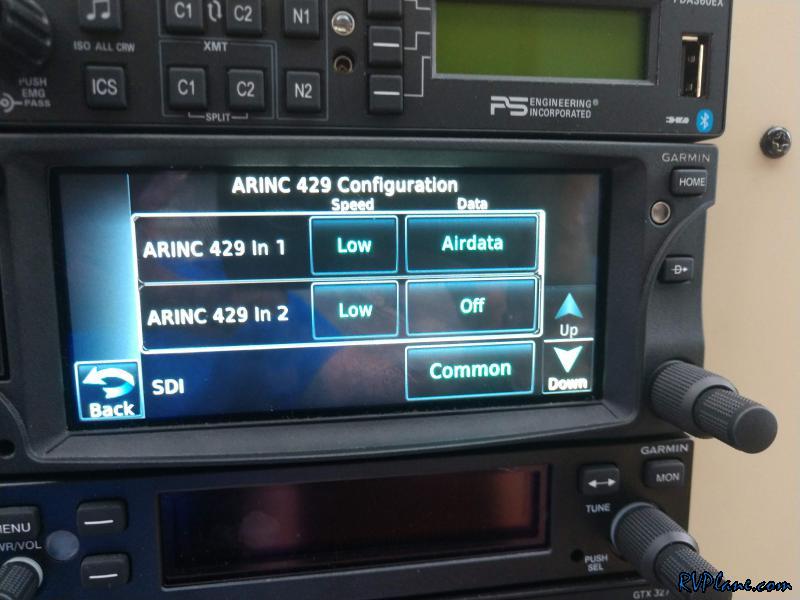

As I mentioned in my last write up from my trip to Triple Tree my CFII friend Peter and I had no luck getting any sort of vertical guidance out of my GTN-650 to my GRT EFIS. Originally we thought it could be since my databases are severely outdated. But the internet disagreed with this theory. I called up GRT today and they turned me onto the holy grail of what I needed - the Garmin GTN650/750 Series Equipment Supplement document (GTN6XXSupplementA1.pdf). I took some screenshots of my before settings. ARINC IN 1/2.

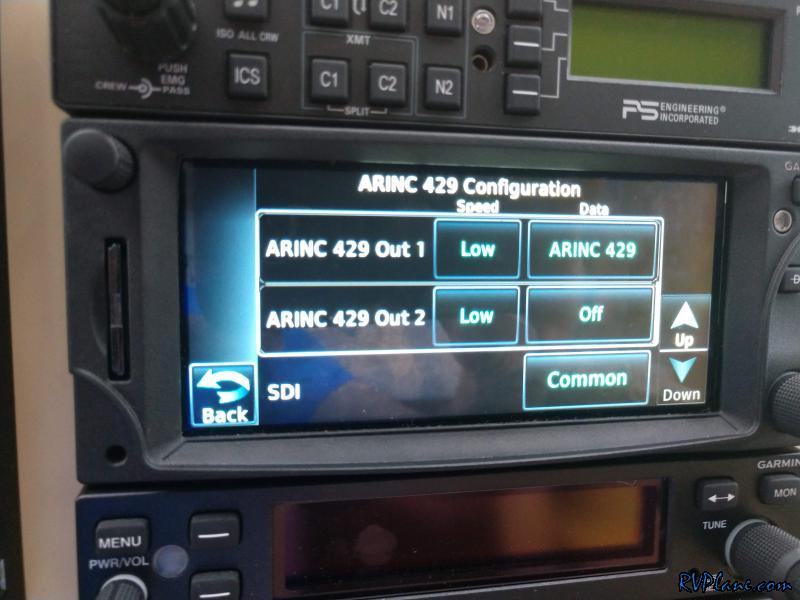

ARINC OUT 1/2.

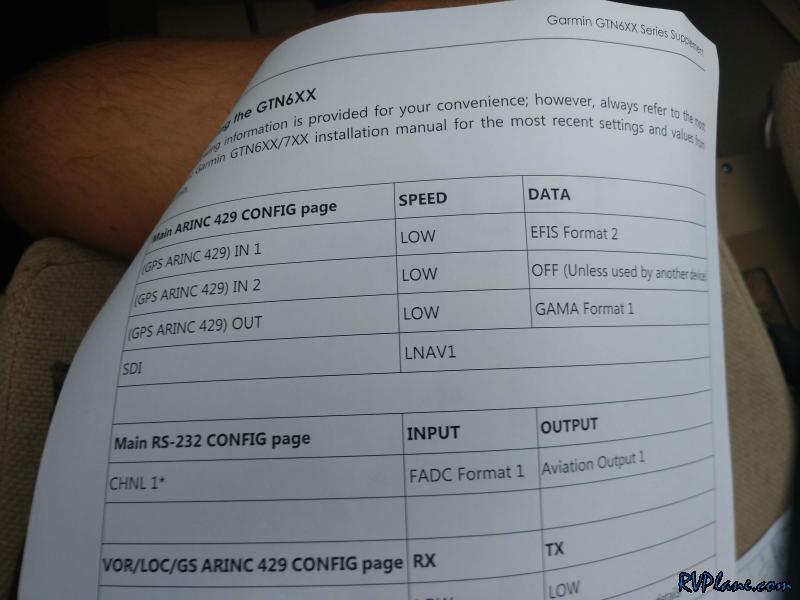

What they should be according to GTN6XXSupplementA1.pdf.

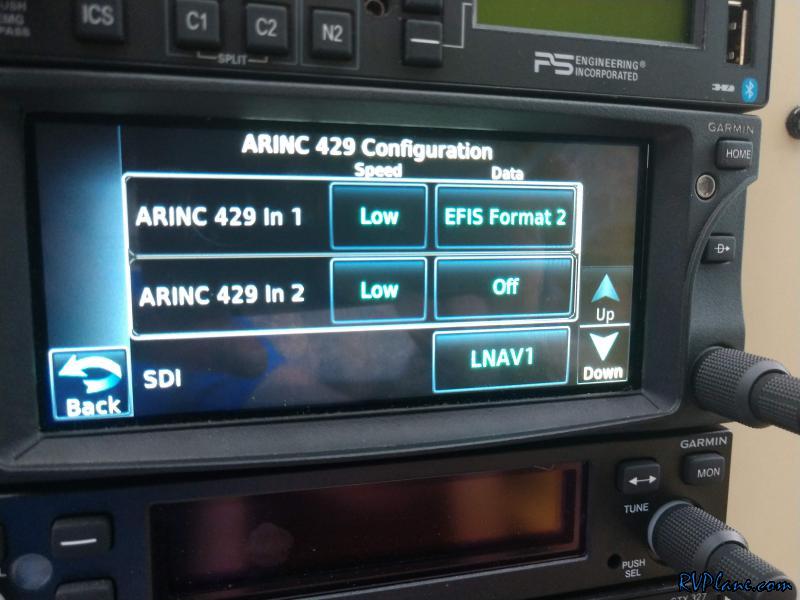

I changed ARINC IN1 from "AIRDATA" to "EFIS Format 2".

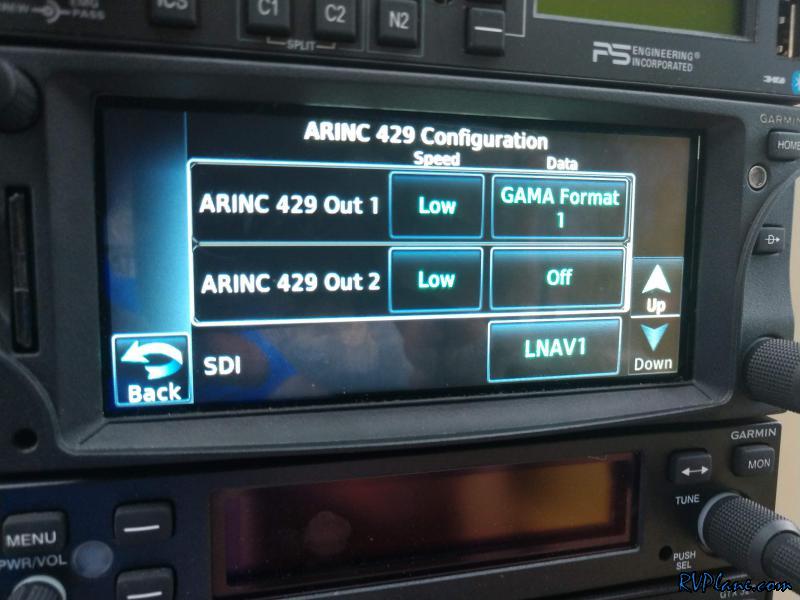

And Out 1 from "ARINC 429" to "GAMA Format 1".

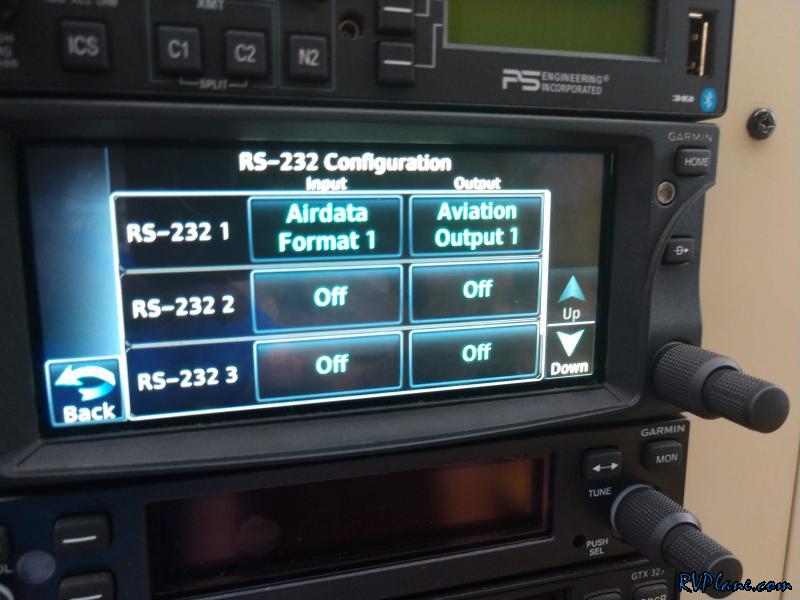

The RS-232 configuration also needed some modification. This was my before setting.

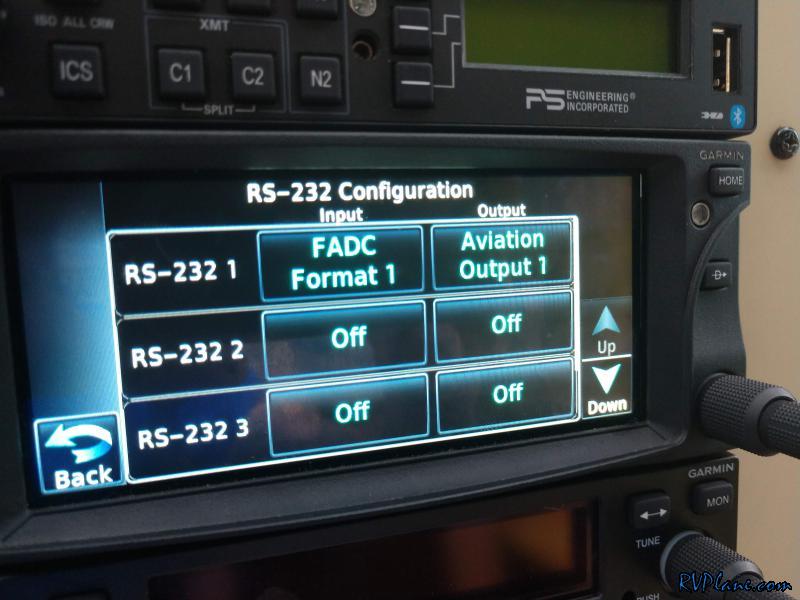

And after setting - RS-232 1 needed to be changed from "Airdata Format 1" to "FADC Format 1".

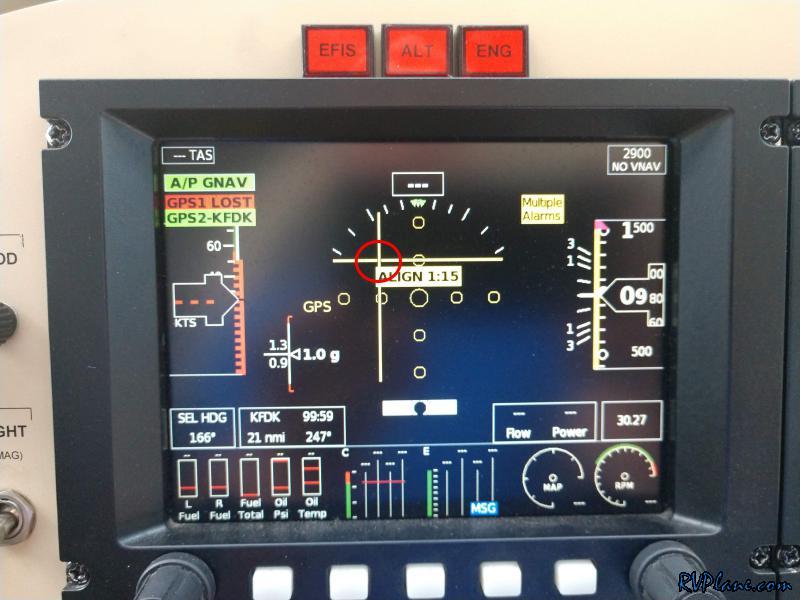

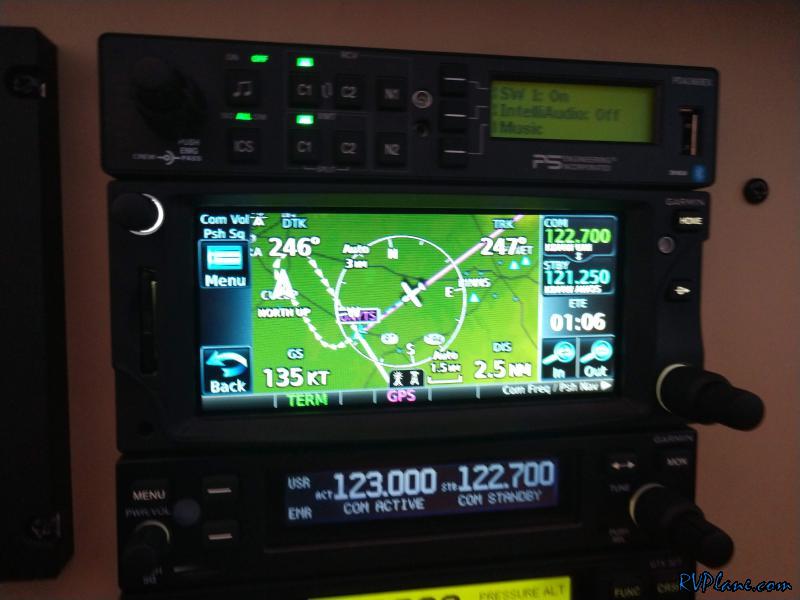

Well, that seemed to do the trick! Upon the GTN starting up it sends an Upper-Left signal to the GRT EFIS. FINALLY IT DISPLAYS IT!

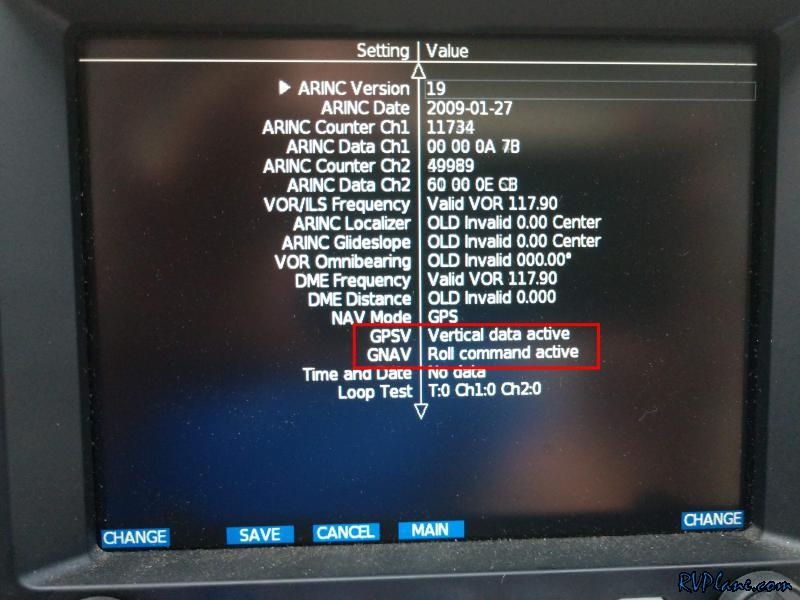

The ARINC debug output also agreed it was getting vertical commands from the GTN-650.

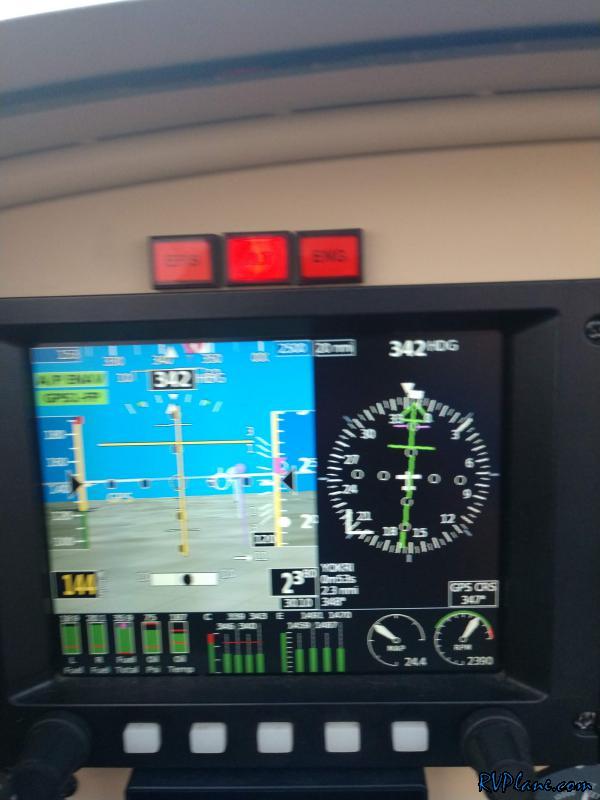

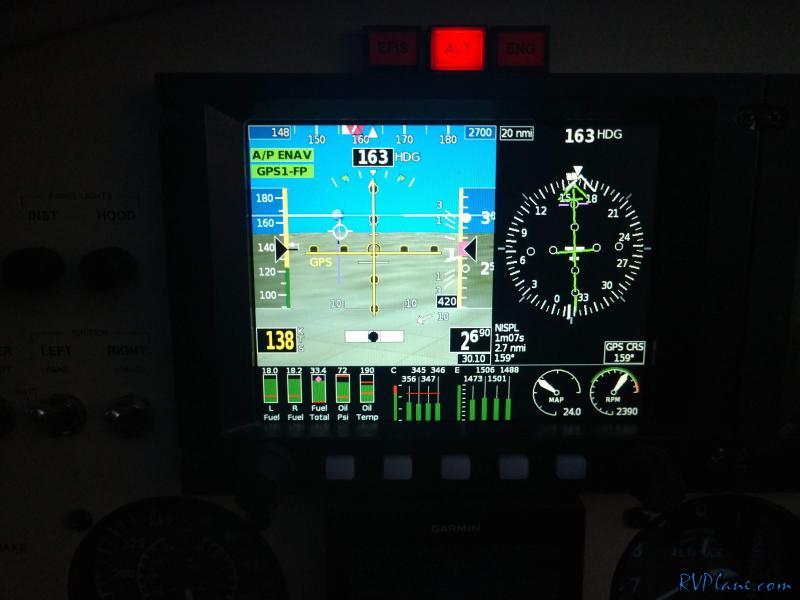

Blurry pic of intercepting the glideslope on a RNAV17 GPS approach to 17 at KTHV. This is HUGE!

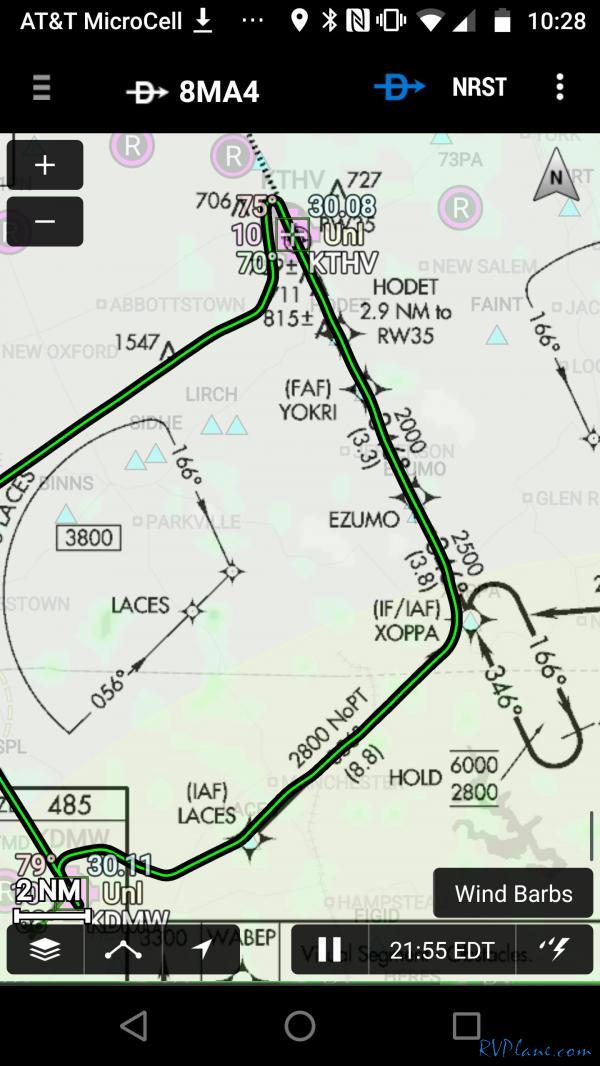

OK, I caved. I bought Garmin Pilot Premium Upgrade today to get my track overlayed on the IFR charts. This is me handflying the approach.


On the way back home I decided to shoot another RNAV. I don't quite know what I am doing yet, but hell, learning is fun. For lack of better terminology in my IFR training infancy, I did a lap around the UNYTS waypoint, and then straight in to runway 16.

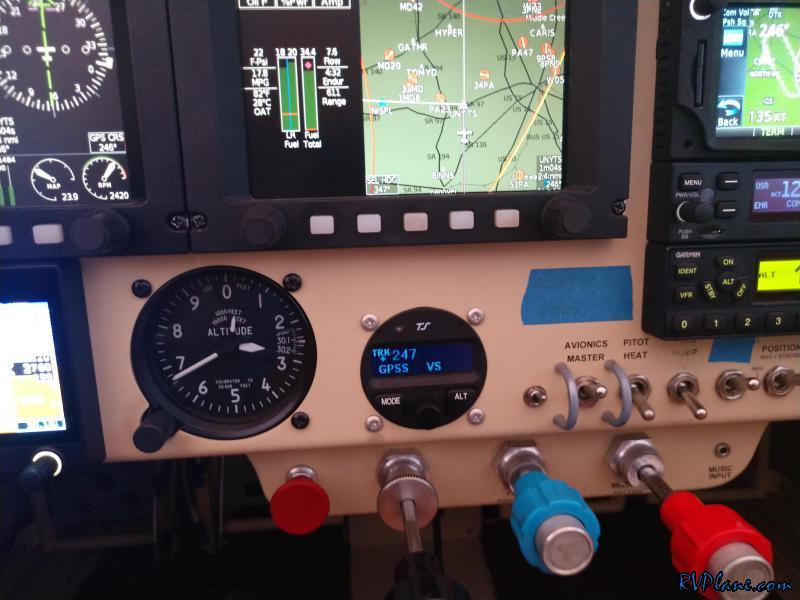

This time I gave the control over to my Tru Trak Autopilot.


I was super impressed. It captured the GPS RNAV glideslope and flew it down to the runway.

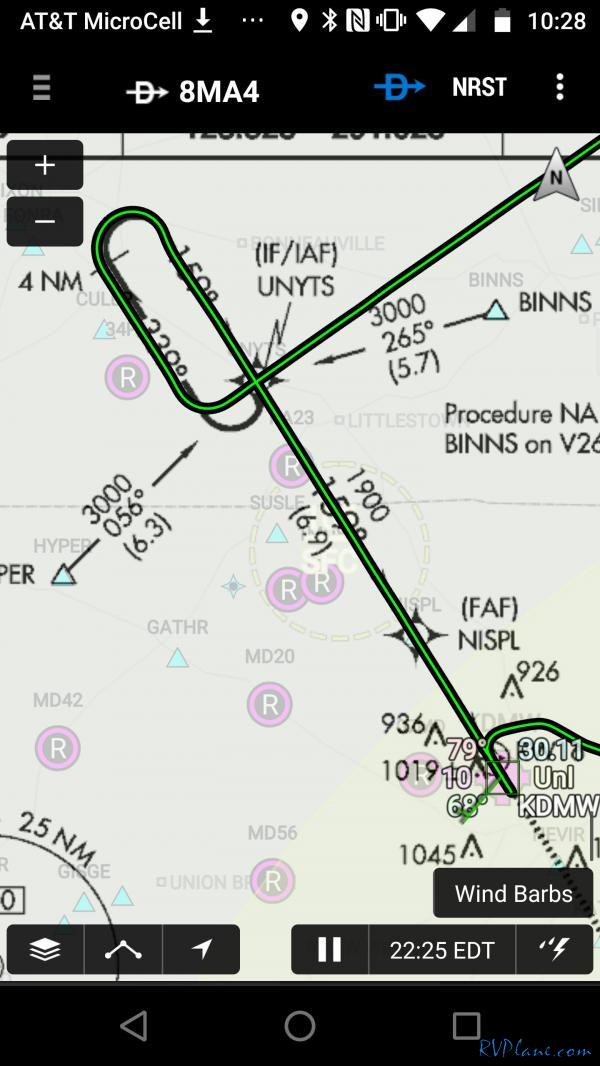

This is 100% an autopilot track. About the only flaw I can see is a slight over-steer coming off from the 339 to 159 degree turn.
