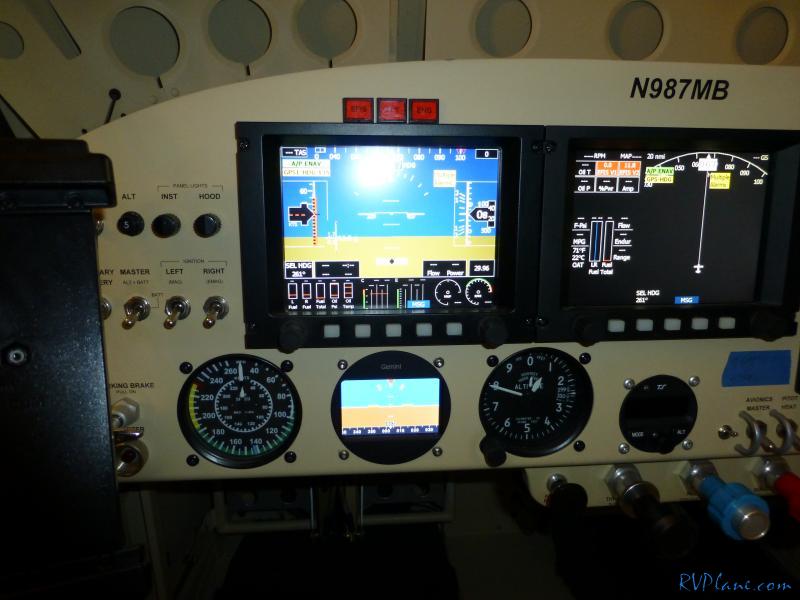

There weren't all that many pictures to take tonight of the completion of the TruTrak Gemini ADI, as most of my evening was on my back under the panel. Luckily the installation only consisted of 4 wires - two power inputs (avionics and aux busses), ground and GPS input. There is the option for a dimmer input, however, it works the opposite of how I currently have my instrument lights working. The TruTrak Gemini ADI will dim when the voltage into the dimmer input is lowered. My instruments lights get brighter as the panel light voltage gets greater. I think I have a way to fix this, but it will require some testing and rewiring of the instrument lights.

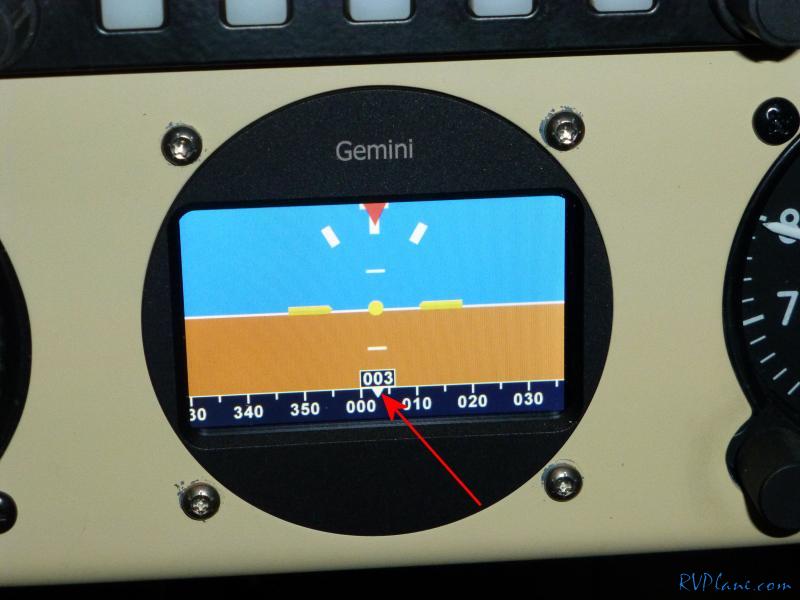

The Gemini picked up the GPS signal from the Garmin 430W almost immediately. The white triangle indicates the ADI is getting a valid GPS input. This turns red when the GPS input is no longer valid.
