[April 19, 2013]

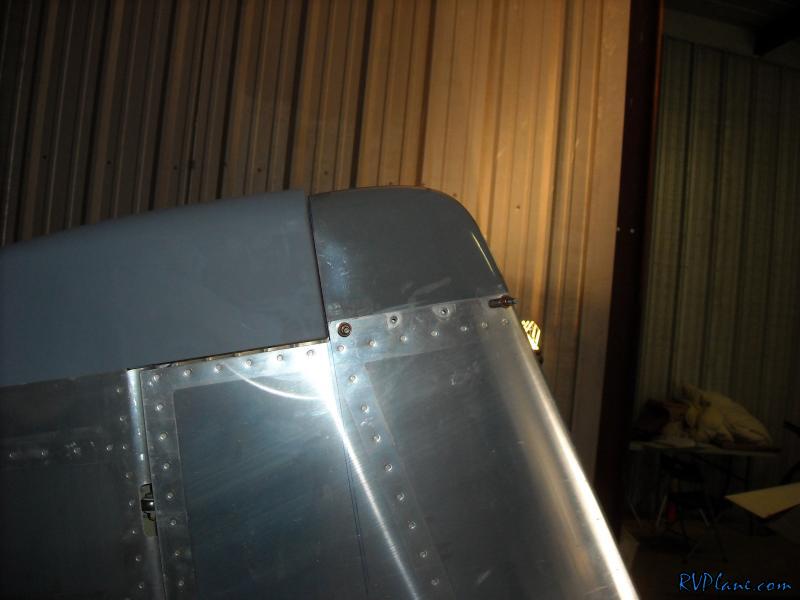

More work on the vertical stabilizer tip installation. I was able to drill it to the vertical stabilizer and trim the aft edge.

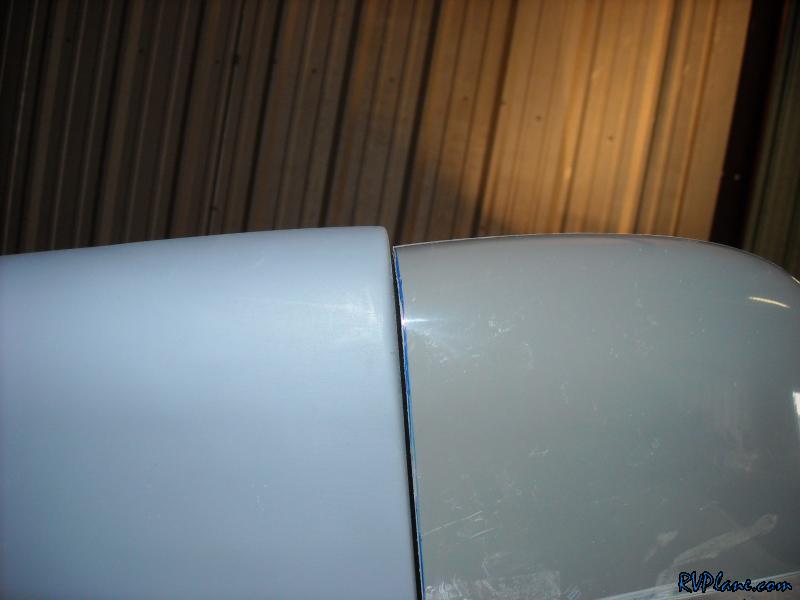

I will need to build up the top of the new tip to match the old tip.

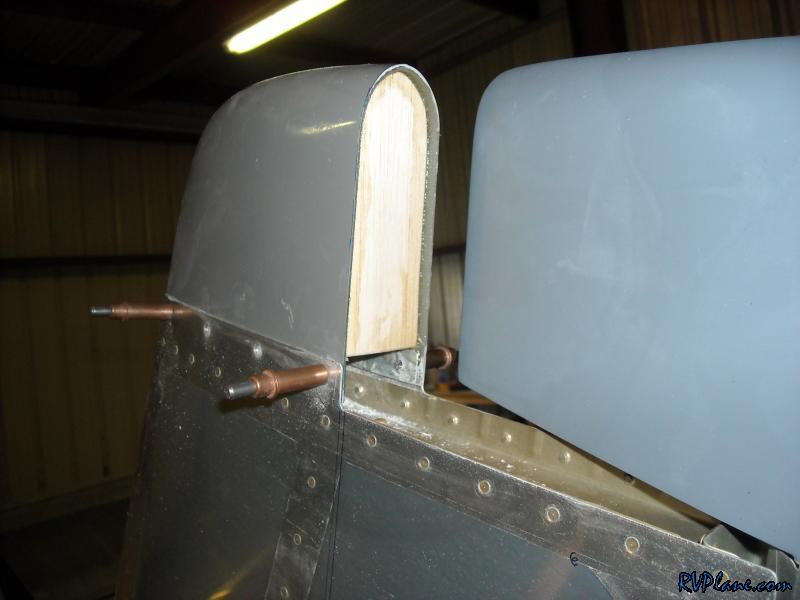

I reinforced the inside of the tip with some balsa wood epoxied into place.

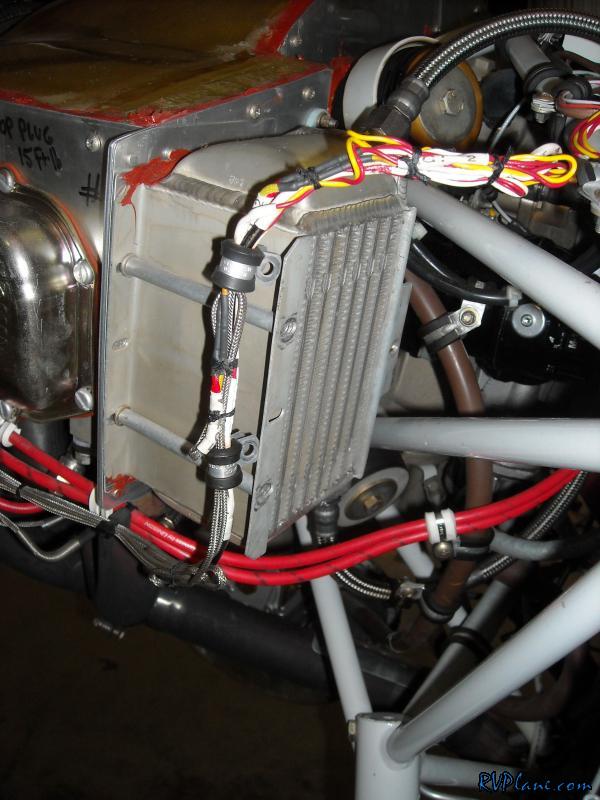

With the epoxy curing, I moved onto installing the oil cooler shutter. It is getting warmer out, so I needed to remove the blocking plate anyways.

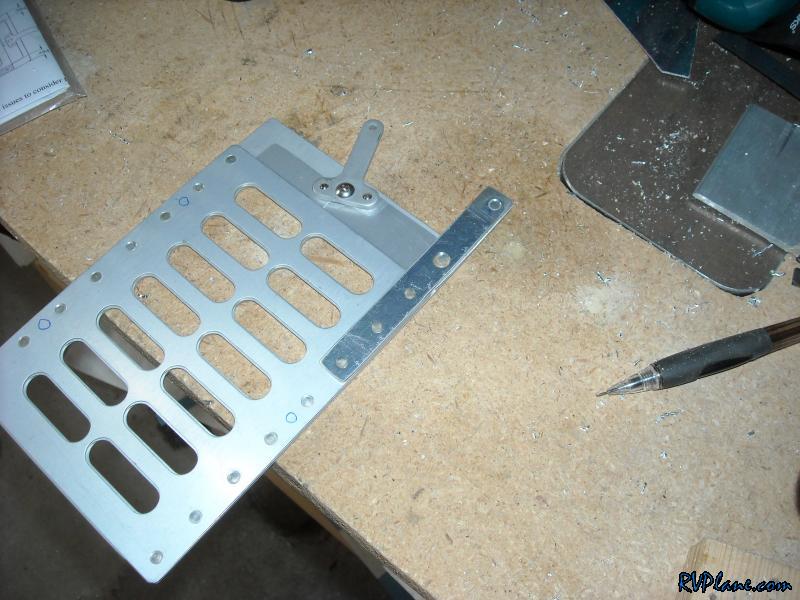

I added some metal to the inboard edge of the oil cooler shutter to be able to attach a cushioned clamp.

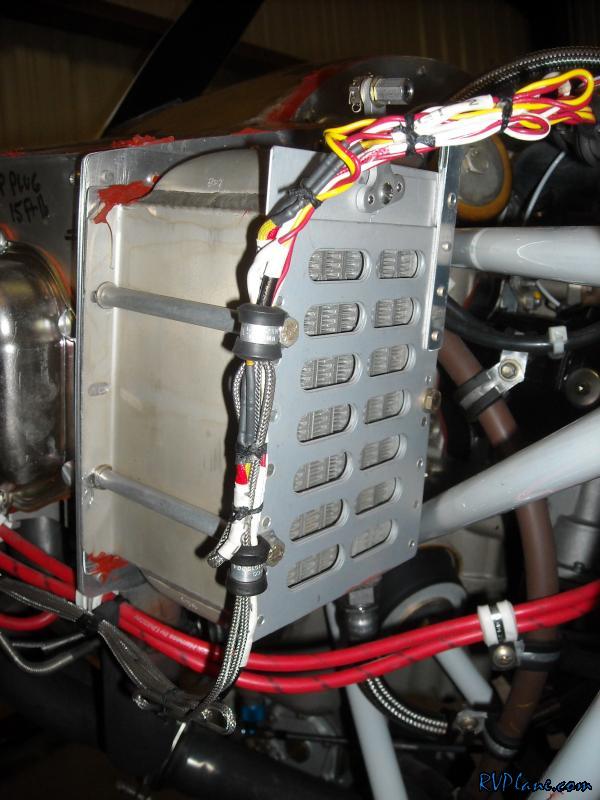

Boom! Installed.

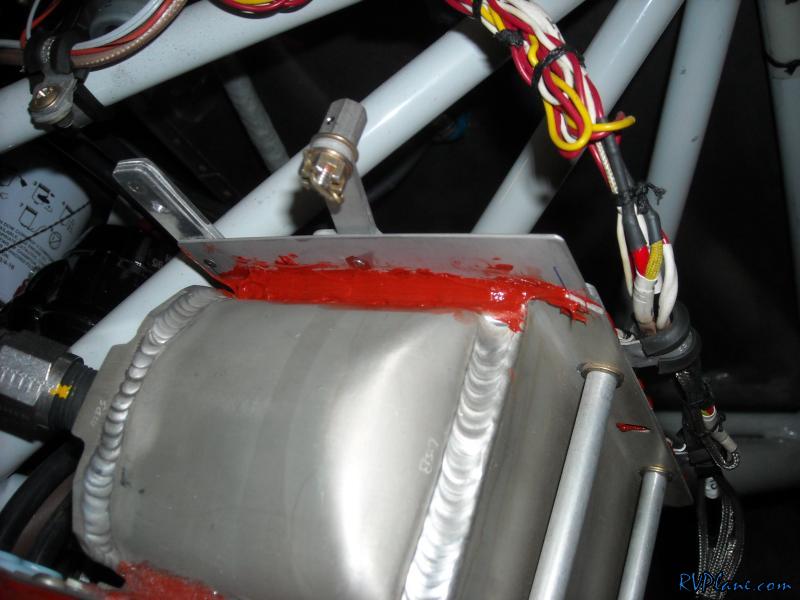

I sealed as best as I could all of the openings on the top and bottom of the oil cooler. Hopefully I should be able to install the control knob inside tomorrow and perhaps test it out!
