[March 19, 2011]


I was away in the great land of Utah for a week of skiing with my college buddies. When I got home, I saw my shipment from www.rvbits.com came in -- intersection fairing

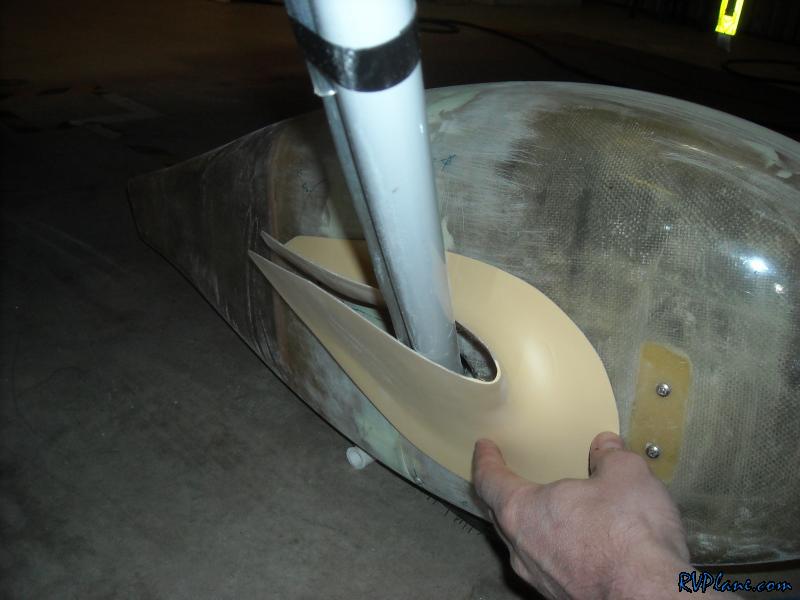

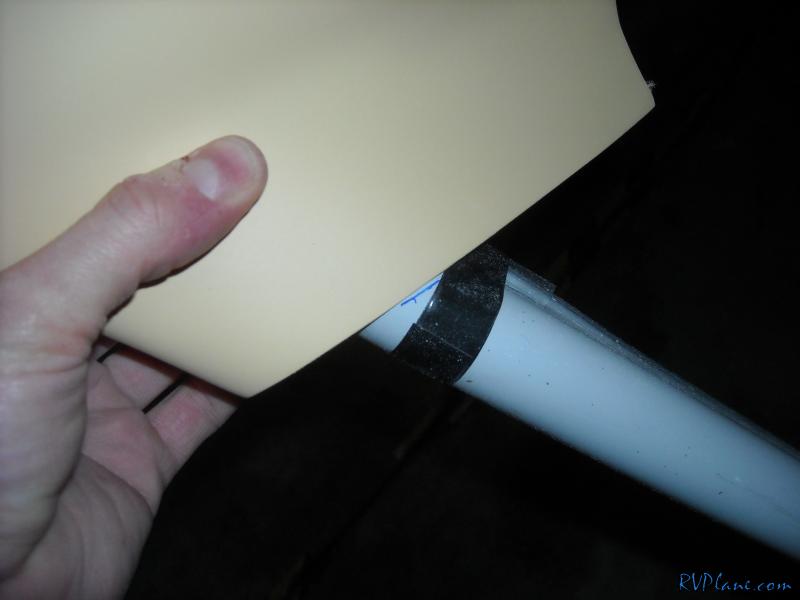

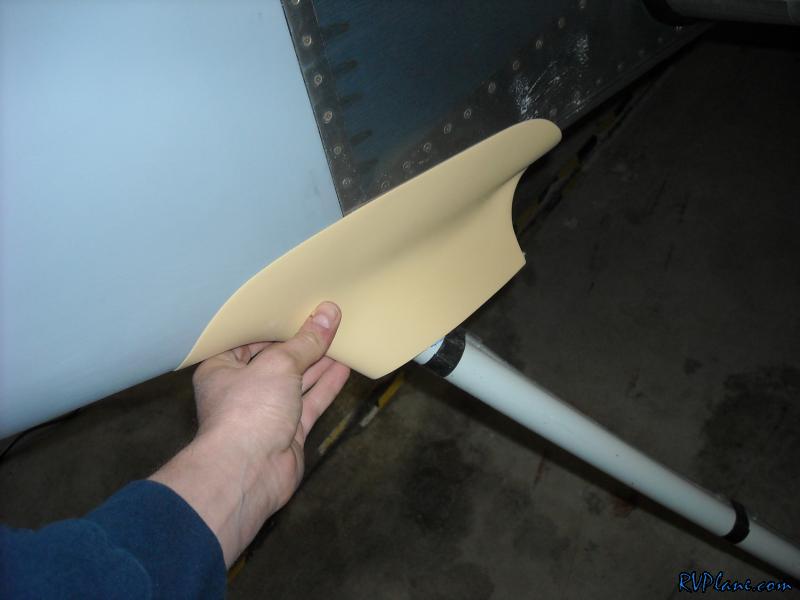

These fairings fit extremely well. Very high quality at an extremely affordable price. I marked on the gear legs where the fairings extended to.


The wheel fairings fit OK - but that's because they are supposed to work with the Van's pressure recovery wheelpants. The Sam James wheel pants are mighty different.

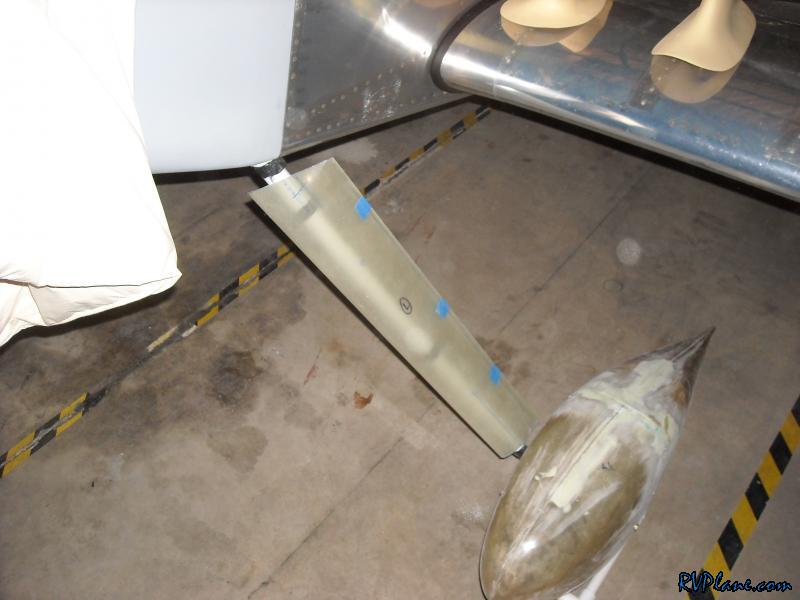

Once I saw how much the intersection fairings extended up and down the landing gear I was able to trim the wheel leg fairings.

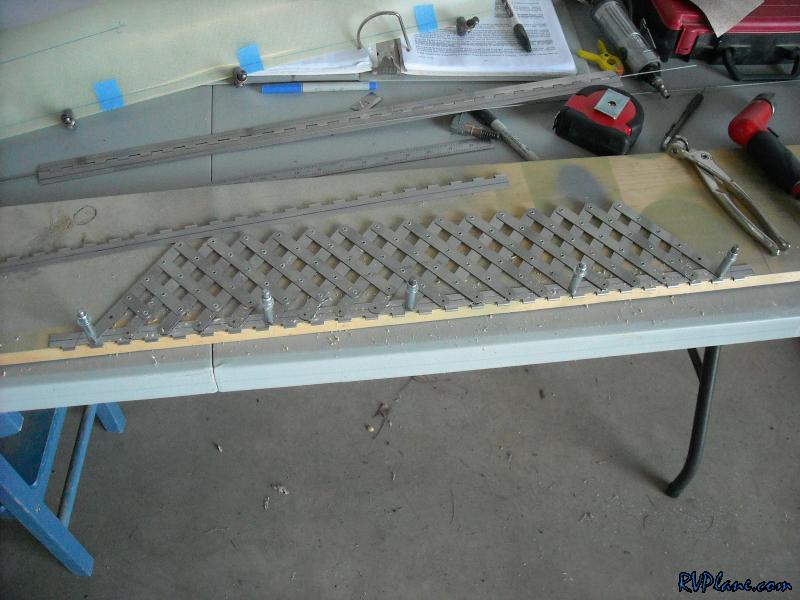

Next I trimmed the hinges.

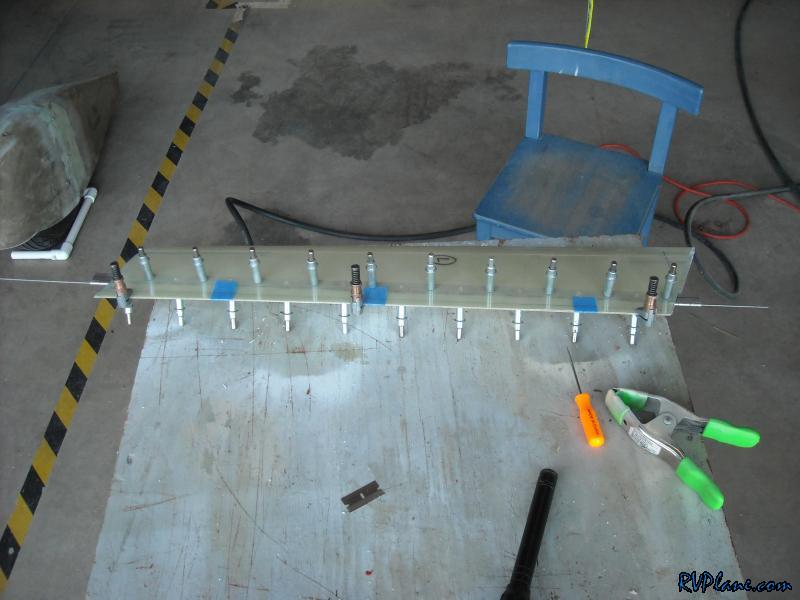

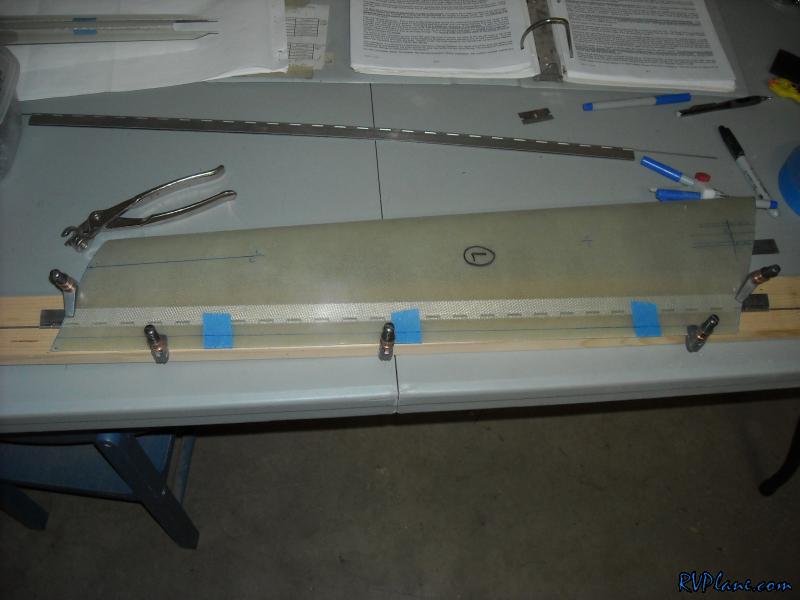

Then some drilling.


Finally I drilled the gear leg fairings and countersunk then for the rivets. Took a lot of time to get here. I plan on pro-sealing these hinges to the fairings....
