[November 29, 2008]

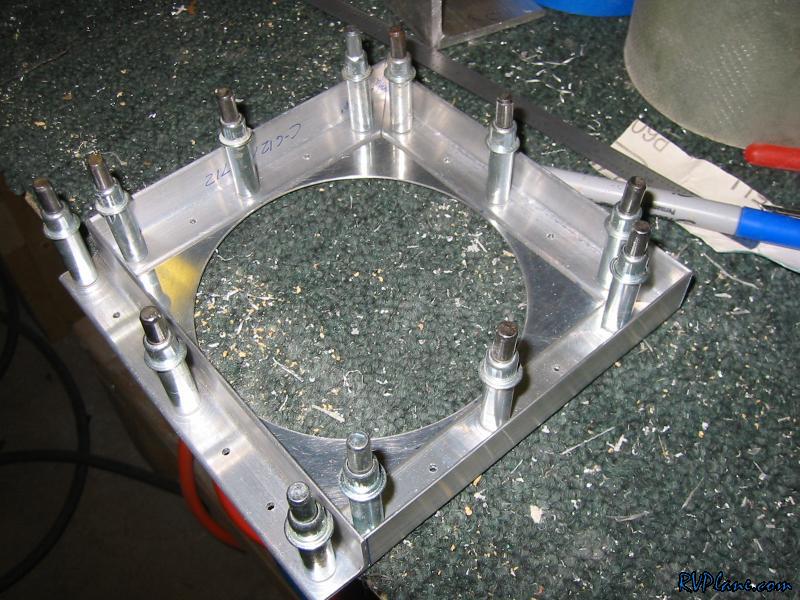

So here is the reinforcement I was talking about the other day. The theory is I will bend the stock baffles to mate up with the 063 angle I have on here.

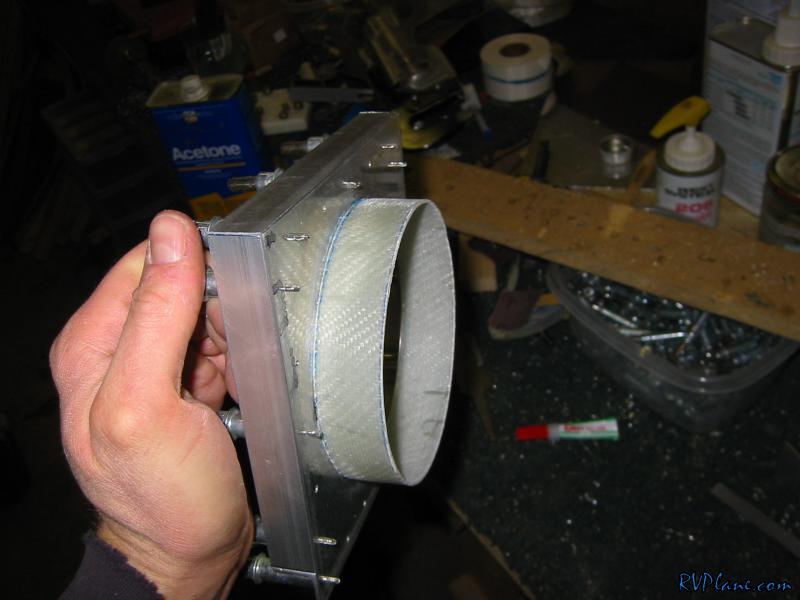

I glued the fiberglass tube to the rest of this contraption with some superglue temporarily.

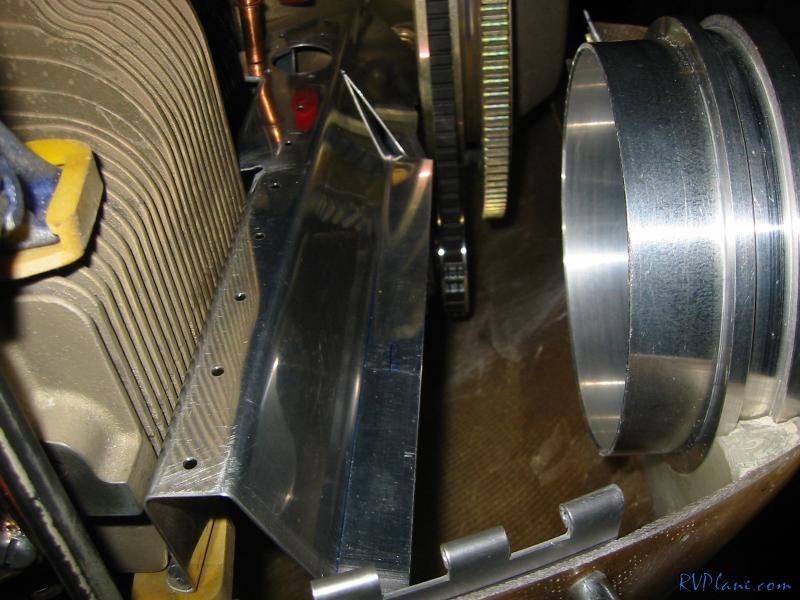

Next I took the inlet ramp and added some bends to it as well as trimmed it up.

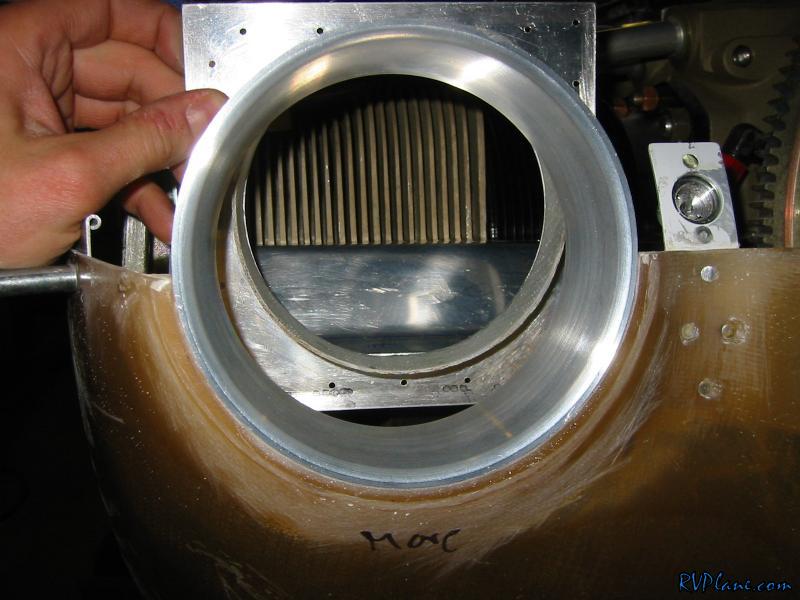

So here the inlet ramp is pretty aggressively ramped and against the inlet adapter I made. This isn't going to work -- the inlet adapter needs to come down another 1" or so.
